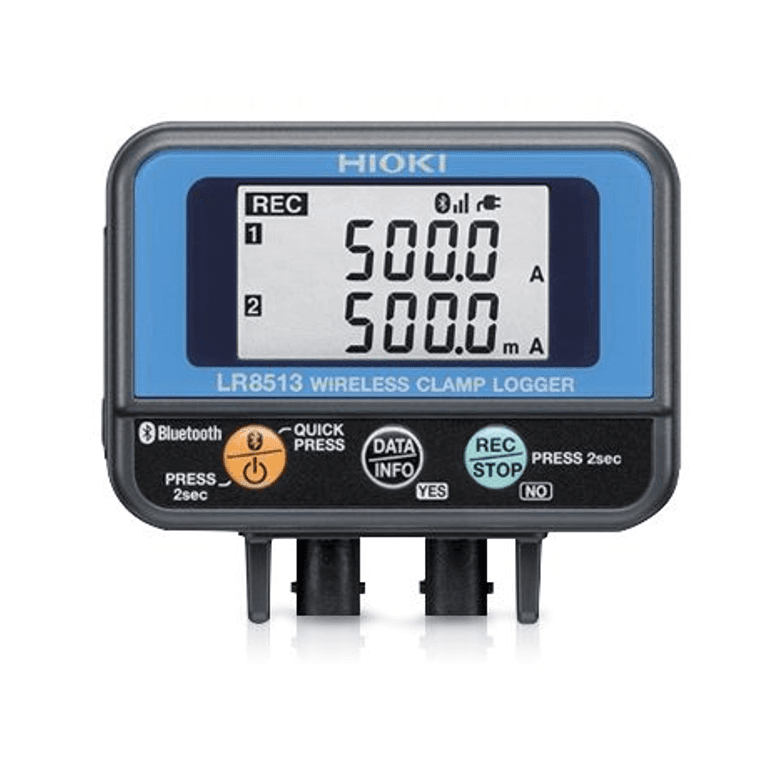

Hioki LR8513 แคลมป์มิเตอร์แบบไร้สาย

LR8513 ฟังก์ชั่นการวัด

แคลมป์มิเตอร์แบบไร้สาย

LR8513 จุดเด่น

Measure AC and DC load current and AC leak current
Choose from many current sensors
Place inside a distribution panel, close the cover, and monitor measured values from the outside
Measure power easily—just set the voltage and power factor
Compact, two-channel model fits where other devices don’t
Download measurement data to a tablet or computer with Bluetooth® wireless technology
Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
Store 500,000 data points per channel

LR8513 ช่วงการวัด

Measurement range

500.0 mA to 2000 A AC, 10.00 A to 2000 A DC (By current sensor)
*Current and leak current that occur intermittently cannot be measured.
Measurement accuracy

±0.5% rdg.±5 dgt. (DC, AC 50/60 Hz) *Add the sensor’s accuracy when the current sensor is connected

LR8513 Power Supply

AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable)

LR8513 ขนาดสินค้า

85 mm (3.35 in) W × 75 mm (2.95 in) H × 38 mm (1.50 in) D, 130 g (4.6 oz) (excluding the battery)

LR8513 อุปกรณ์ที่มาในชุด

CD-R ×1 (Instruction Manual,

Logger Utility,

Wireless Logger Collector),

Measurement Guide ×1,

Caution for Using Radio Waves × 1,

AA alkaline batteries (LR6) ×2

LR8513 อุปกรณ์เสริม

CLAMP ON SENSOR CT6500

CLAMP ON SENSOR 9669
CONNECTION CABLE 9219
CLAMP ON SENSOR 9695-02

CLAMP ON LEAK SENSOR 9657-10

DISPLAY UNIT CM7290

CLAMP ON LEAK SENSOR 9675

AC FLEXIBLE CURRENT SENSOR CT7040 series

OUTPUT CORD L9095

AC/DC AUTO-ZERO CURRENT SENSOR CT7731

AC/DC AUTO-ZERO CURRENT SENSOR CT7736

AC/DC AUTO-ZERO CURRENT SENSOR CT7742
AC ADAPTER Z2003
MAGNETIC STRAP Z5020

LOGGER UTILITY SF1000

LR8513 ข้อมูลจำเพาะ

Functionality

[Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Software can be downloaded free of charge from Google Play.)
*Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m)
[Used as logging module (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m

Number of channels 2ch (common GND)
Measurement items AC load current, DC load current, AC leak current (using current sensor)
Effective value calculation Software calculates the true RMS value

Display items Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value

Functions

Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
Recording

[Capacity] 500,000 data items for each channel [Mode] Instantaneous value, average value, maximum value [Interval] 0.5 to 30 sec, 1 to 60 min, 14 selections
Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C)

3 months (Recording interval of 1 min, Bluetooth® OFF), 10 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410)

Countries and regions where wireless operation is currently supported (LR8513)

Countries and regions where wireless operation is currently supported

Australia, Austria, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Caledonia, New Zealand, Norway, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Taiwan, Thailand, Turkey, United Kingdom, United States, Viet Nam

Note
Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law.
