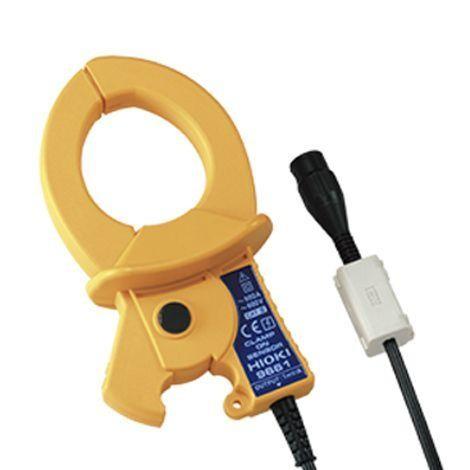

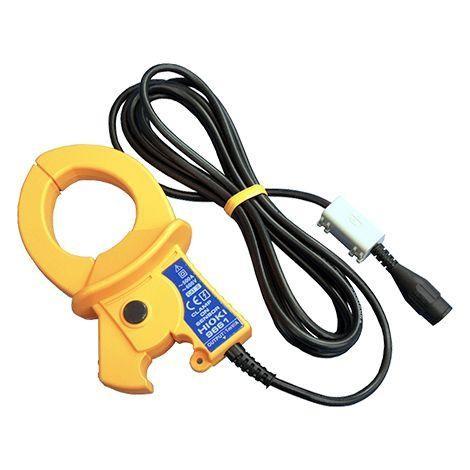

Hioki-9661 Clamp On Sensor For Power Analyzer
HIOKI-9661
฿8,250.00(ไม่รวมภาษี)
จำนวน
สินค้าในคลัง11
500A Voltage Output Sensor for Current Load Measurements For inverter equipment or commercial power lines Measure up to 500A AC continuously
HIOKI-9661 | ฟังก์ชั่นการวัด
input current
output voltage
HIOKI-9661 | จุดเด่น
AC 500 A
HIOKI-9661 | ช่วงการวัด
Rated input current
AC 500 A
Rated output voltage
AC 500 mV f.s. (AC 1 mV/A)
Amplitude accuracy
±0.3 % rdg. ±0.01 % f.s. (45 - 66 Hz, f.s.= rated primary current)
Phase accuracy
±0.5 ° (at 45 Hz - 5 kHz)
Max. allowable input
Continuous 550 A rms (at 45 - 66 Hz)
Frequency characteristic
40 Hz to 5 kHz: ± 1.0% (deviation from accuracy
)Max. rated voltage to earth
AC 600 V rms (insulated wire)
HIOKI-9661 | ขนาดสินค้า
Core diameter
ø46 mm (1.81 inch)
Dimensions and mass
77 mm (3.03 in) W × 151 mm (5.94 in) H × 42 mm (1.65 in) D, 380 g (13.4 oz), cord length 3 m (9.84 ft)
HIOKI-9661 | อุปกรณ์ที่มาในชุด
Hioki-9661 Clamp On Sensor
HIOKI-9661 | ข้อมูลจำเพาะ
Rated input current
AC 500 A
Rated output voltage
AC 500 mV f.s. (AC 1 mV/A)
Amplitude accuracy
±0.3 % rdg. ±0.01 % f.s. (45 - 66 Hz, f.s.= rated primary current)
Phase accuracy
±0.5 ° (at 45 Hz - 5 kHz)
Max. allowable input
Continuous 550 A rms (at 45 - 66 Hz)
Frequency characteristic
40 Hz to 5 kHz: ± 1.0% (deviation from accuracy
)Max. rated voltage to earth
AC 600 V rms (insulated wire)
Core diameter
ø46 mm (1.81 inch)
Dimensions and mass
77 mm (3.03 in) W × 151 mm (5.94 in) H × 42 mm (1.65 in) D, 380 g (13.4 oz), cord length 3 m (9.84 ft)
