HIOKI U8556 CURRENT MODULE Measure up to 5 channelsHIOKI U8556 CURRENT MODULE Measure up to 5 channels
HIOKI

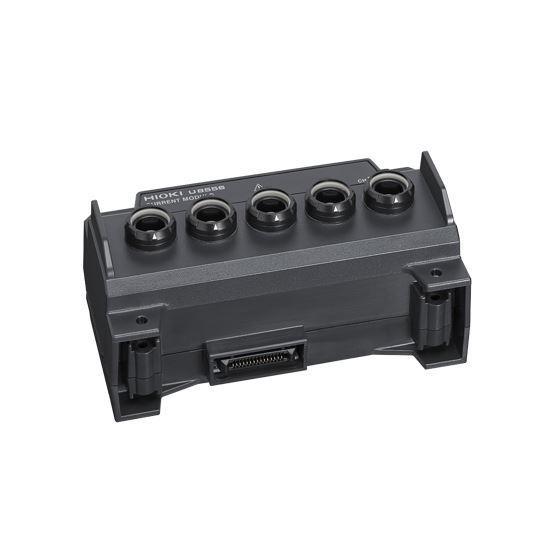

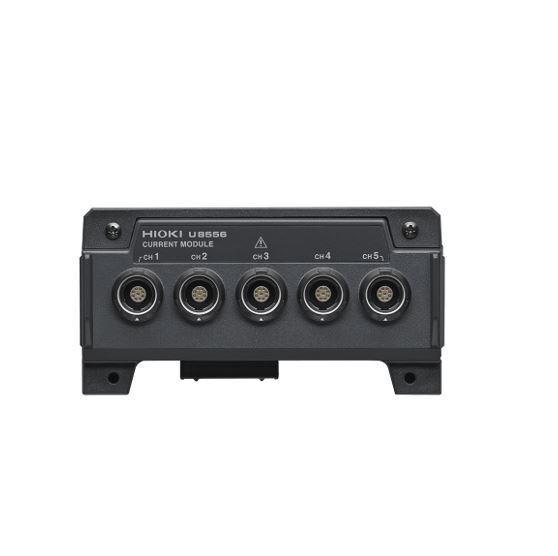

HIOKI U8556 CURRENT MODULE Measure up to 5 channels

รหัสสินค้า

U8556

ภาพรวม

Simultaneously measure 5 channels at a sampling rate of up to 1 ms by connecting five sensors to a single current module. As a result, you can capture even momentary changes in current value.

Index

    U8556 ฟังก์ชั่นการวัด

    Sample data at rates

    U8556 ช่วงการวัด

    Sample data at rates of up to 1 ms
    Measure up to 5 channels

    U8556 ขนาดสินค้า

    Measure up to 5 channels

    U8556 อุปกรณ์ที่มาในชุด

    Instruction manual × 1, mounting screw × 2, Caps × 5

    U8556 อุปกรณ์เสริม

    • AC/DC AUTO-ZERO CURRENT SENSOR CT7731
    • AC/DC AUTO-ZERO CURRENT SENSOR CT7736
    • AC/DC AUTO-ZERO CURRENT SENSOR CT7742
    • AC/DC CURRENT SENSOR CT7812

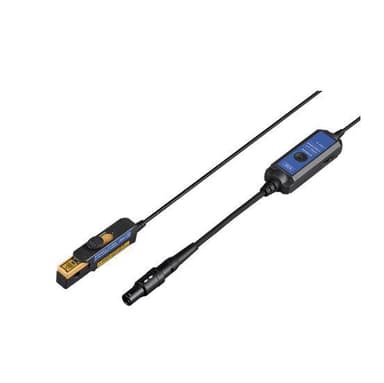

    • AC/DC CURRENT SENSOR CT7822
    • AC FLEXIBLE CURRENT SENSOR CT7040 series
    • AC CURRENT SENSOR CT7126
    • AC CURRENT SENSOR CT7131
    • AC CURRENT SENSOR CT7136
    • AC LEAKAGE CURRENT SENSOR CT7116

    U8556 ข้อมูลจำเพาะ

    Connectable instruments

    Memory HiLogger LR8450 (Designed for use with plug-in units only)
    Memory HiLogger LR8450-01 (Wireless LAN model)
    Operating temperature and humidity -10°C to 50°C, 80% RH or less (no condensation)
    Storage temperature and humidity -20°C to 60°C, 80% RH or less (no condensation)
    Vibration resistance JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
    Number of input channels 5 ch
    Measurement targets Current (using an optional current sensor)
    Input format Current sensor (Hioki PL14)
    Response time for instantaneous values 150 μs
    Frequency characteristics for RMS values DC to 5 kHz
    Response time for RMS values 0.8 s
