Pin Type Lead (For RM3544/RM3545) Resistance Meters Probe Part: 178 mm (7.01 in) Whole Length: 1.5 m (4.92 ft) ยี่ห้อ Hioki, Japan
Index
L2102 ฟังก์ชั่นการวัด

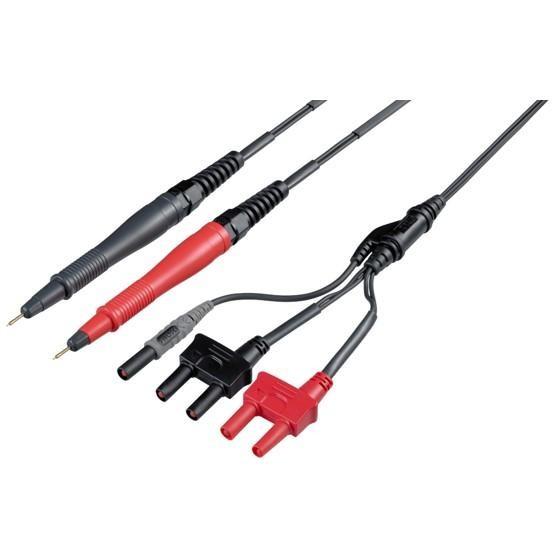

Pin Type Lead
L2102 จุดเด่น
PIN TYPE LEAD For RM3544/RM3545
L2102 ขนาดสินค้า
Probe Part: 178 mm (7.01 in)
Whole Length: 1.5 m (4.92 ft)
L2102 อุปกรณ์ที่มาในชุด
Instruction manual
L2102 ข้อมูลจำเพาะ
Maximum rated voltage to earth 33 Vrms or less, 46.7 Vp AC or less and 70 V DC or less
Maximum input current Model L2102: AC/DC 3 A continuous
Operating temperature and humidity 0°C to 40°C (32°F to 104°F), 80%RH or less (no condensation)
Storage temperature and humidity -10°C to 50°C (14°C to 122°C), 80%RH or less (no condensation)
Operating Environment Altitude up to 2000 m (6562 feet), Indoor Pollution Degree 2
Applicable standards (Safety) EN 61010
