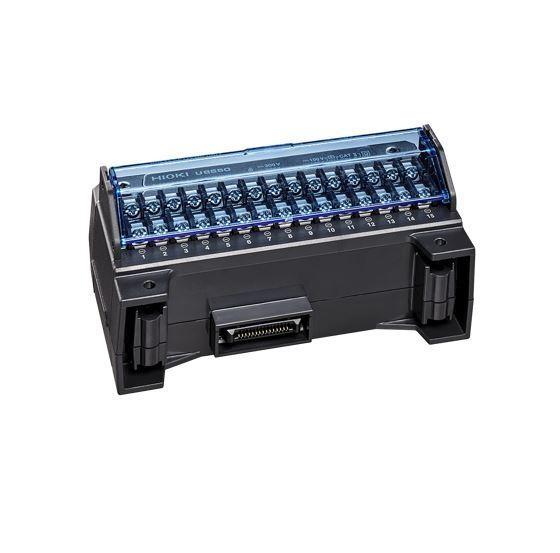

For DC voltage measurement and temperature measurement using thermocouples 15 ch, voltage/temperature (thermocouples)/humidity measurement Sampling rate of up to 10 ms with 15 channels
Index
Hioki-U8550 ฟังก์ชั่นการวัด
Operating temperature and humidity
Hioki-U8550 ช่วงการวัด
-10°C to 50°C, 80% RH or less (no condensation)
Hioki-U8550 ขนาดสินค้า
15 ch (Able to set voltage, temperature using the thermocouple, and humidity for each channel)
Hioki-U8550 อุปกรณ์ที่มาในชุด
Instruction manual × 1, mounting screw × 2
Hioki-U8550 ข้อมูลจำเพาะ
Connectable instruments
Memory HiLogger LR8450 (Designed for use with plug-in units only)
Memory HiLogger LR8450-01 (Wireless LAN model)
Storage temperatureand humidity -20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Number of inputchannels 15 ch (Able to set voltage, temperature using the thermocouple, and humidity for each channel)
Input terminals M3 screw-type terminal block (2 terminals per channel)
Measurement target Voltage, temperature using the thermocouple, and humidity
Input type
Scanning by semiconductor relays
All channels isolated (Not isolated when measuring humidity)
