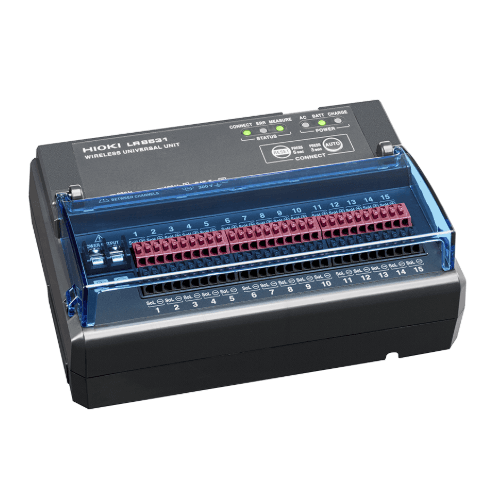

WIRELESS UNIVERSAL UNIT LR8531

Control communications

method Connect wirelessly via Wireless LAN Adapter Z3230 (included)

Wireless LAN (IEEE 802.11b/g/n)

Communication range: 30 m (line of sight)

Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES

Available number of channels: 1 to 11

Included accessories

Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate)

Voltage measurement (resolution)

10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)

Temperature measurement (thermocouple)

K: -100.00℃ to 1350.0℃

J: -100.00℃ to 1200.0℃

E: -100.00℃ to 1000.0℃

T: -100.00℃ to 400.0℃

N: -100.00℃ to 1300.0℃

R: 0.00℃ to 1700.0℃

S: 0.00℃ to 1700.0℃

B: 400.0℃ to 1800.0℃

C: 0.00℃ to 2000.0℃

Temperature measurement (Pt)

Pt100：-100.00℃ to 800.0℃

JPt100：-100.00℃ to 500.0℃

Pt1000：-100.00℃ to 800.0℃
