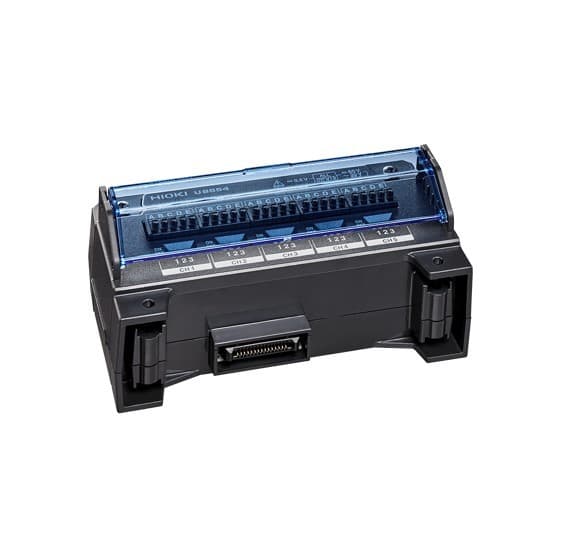

HIOKI U8554 STRAIN UNIT สำหรับ MEMORY HiLOGGER

Memory HiLogger LR8450 (Designed for use with plug-in units only)
Memory HiLogger LR8450-01 (Wireless LAN model)

-10°C to 50°C, 80% RH or less (no condensation)

-20°C to 60°C, 80% RH or less (no condensation)

JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent

Instruction manual × 1, mounting screw × 2, wiring confirmation label

5 ch (Able to set voltage or strain for each channel.)

Push-button type terminal block (5 terminals per channel), outfitted with terminal block cover
Set DIP switches according to measurement target.

Voltage
Strain: Strain gage
1-gage method (2-wire setup), 1-gage method (3-wire setup), 2-gage method (adjacent sides), 4-gage method
Strain gauge transducer

Balanced differential input, Simultaneous sampling of all channels
(non-isolated channels)

1 mV f.s. (50 nV), 2 mV f.s. (100 nV), 5 mV f.s. (250 nV), 10 mV f.s. (500 nV), 20 mV f.s. (1μV), 50 mV f.s. (2.5μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV)

1,000 με f.s. (0.05 με), 2,000 με f.s. (0.1 με), 5,000 με f.s. (0.25 με), 10,000 με f.s. (0.5 με), 20,000 με f.s. (1 με), 50,000 με f.s. (2.5 με), 100,000 με f.s. (5 με), 200,000 με f.s. (10 με)
