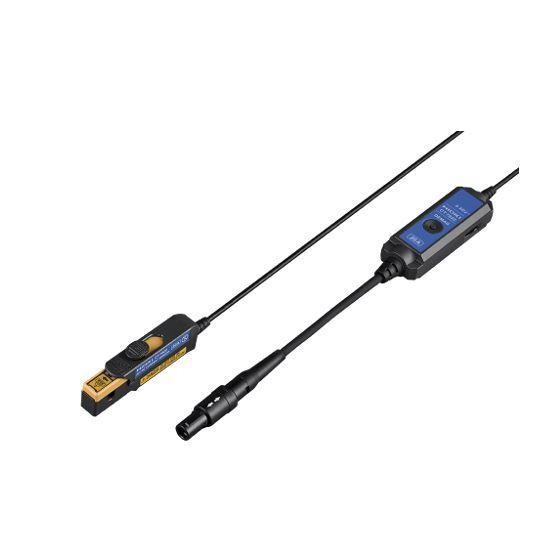

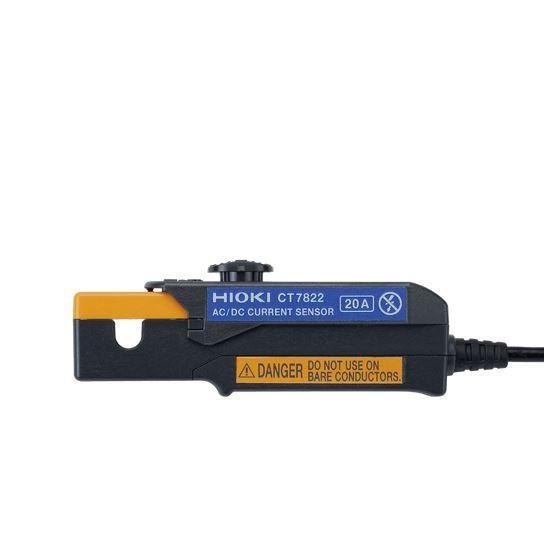

Exceptional performance in a compact package Easy to install in confined locations with complex wiring Rated current: 20 A AC/DC
Index
CT7822 ฟังก์ชั่นการวัด
AC/DC CURRENT
CT7822 ช่วงการวัด
Rated measurement current 20 A AC/DC
Basic accuracy DC± 0.3% rdg. ±0.1% f.s.
CT7822 ขนาดสินค้า
Core diameter φ 5 mm or less
Dimensions Sensor:
76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable)
Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable)
Weight 140 g
CT7822 อุปกรณ์ที่มาในชุด
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions
CT7822 อุปกรณ์เสริม
WIRELESS CURRENT MODULE LR8536
CURRENT MODULE U8556
CT7822 ข้อมูลจำเพาะ
Max. allowable input 30 A rms continuous (±43 Ap)
Bandwidth DC to 100 kHz

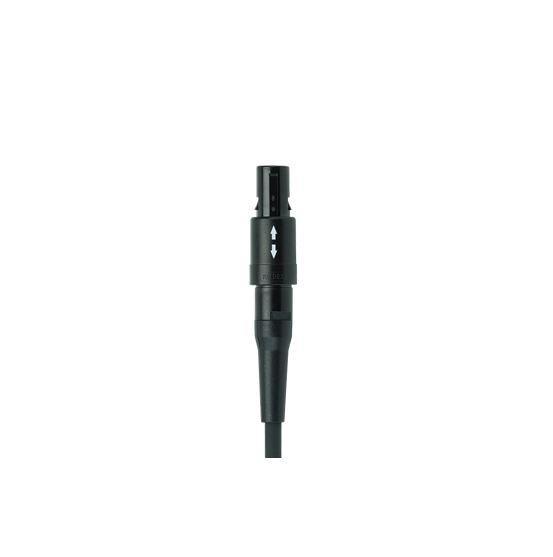

Output connectors HIOKI PL 14
Operating temperature range
Sensor: -40°C to 85°C, 80% RH or less (non-condensing)
Relay box: -25°C to 50°C, 80% RH or less (non-condensing)
Output cable length 4 m (between sensor and relay box), 0.2 m (between relay box and output connector)
