Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments Ideal for site inspections by using detachable Display Unit Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Index
CT7631 ฟังก์ชั่นการวัด
AC/DC
CT7631 จุดเด่น
Connect to Recorders, Data loggers, and Oscilloscopes
Must be paired with the Display Unit CM7290 or CM7291 to operate as a standalone unit. Add an output cord to deliver signals to a data logger or Memory HiCorder for the following types of output:
• A DC or AC (up to 5 kHz/10 kHz) current waveform as-is (using WAVE mode for waveform output)
• An analog signal generated by converting the input waveform to a series of RMS values (using RMS mode for RMS output)
• An analog signal generated by detecting the current waveform’s peak value (using PEAK mode for peak output
• An analog waveform generated by detecting the frequency of the current waveform (using FREQ mode for frequency output)
CT7631 ช่วงการวัด
Rated measurement current 100 A AC/DC
Max. measurement current 100 A(requires derating at frequency))
Max. allowable peak input 150 A peak
Bandwidth DC to 10 kHz (-3dB) (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Typical phase accuracy ±1.8 deg (DC < f ≤ 66 Hz)
Output rate 1 mV/A
Max. rated voltage to earth AC/DC 600 V (CAT IV)
CT7631 ขนาดสินค้า
Core diameter φ 33 mm (1.30 in) or less
Dimensions and mass 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft)
CT7631 อุปกรณ์ที่มาในชุด

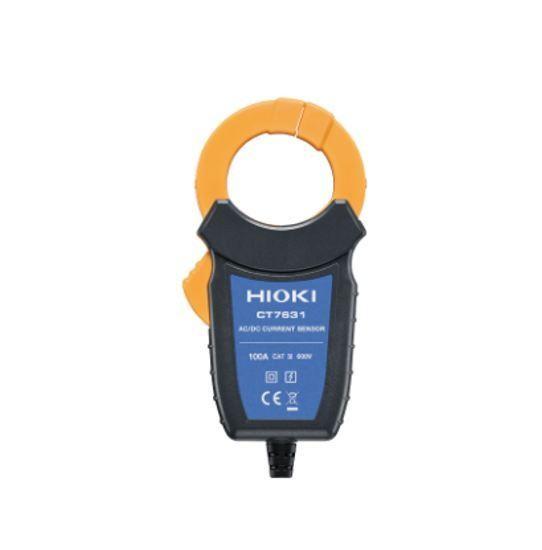

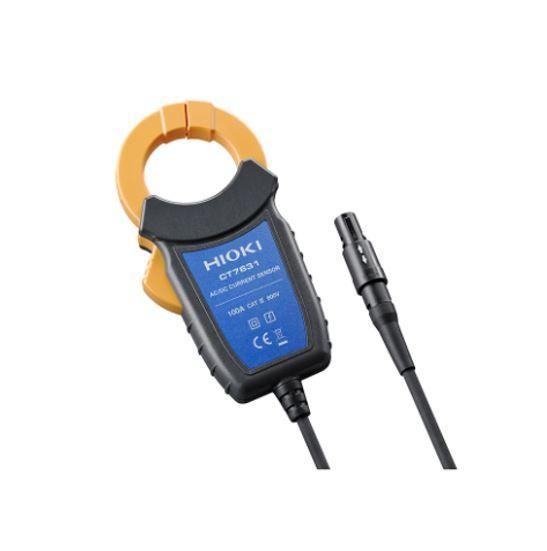

AC/DC CURRENT SENSOR CT7631
CT7631 ข้อมูลจำเพาะ
Output connectors HIOKI PL 14
Operating temperature range -25°C to 65°C (-13°F to 149°F)
