One of the industry’s smallest current sensors Exceptional performance in a compact package Easy to install in confined locations with complex wiring
Index
CT6830 ฟังก์ชั่นการวัด
AC/DC
CT6830 จุดเด่น
Compact, non-contact, and high-accuracy
Multiple sensors can be easily installed, even in confined spaces and locations with complex wiring.
Compact sensor makes possible high-performance, high-accuracy measurement.
Broad operating temperature range
Operating temperature range: -40°C to 85°C
Low-level DC current can be measured with a high degree of accuracy, even in environments where the ambient temperature varies.
CT6830 ช่วงการวัด
Rated measurement current : 2 A AC/DC
Max. allowable input : 3 A rms continuous (±4.3 Ap)
Bandwidth : DC to 100 kHz
Basic accuracy : DC± 0.3% rdg. ±0.1% f.s.
CT6830 ขนาดสินค้า

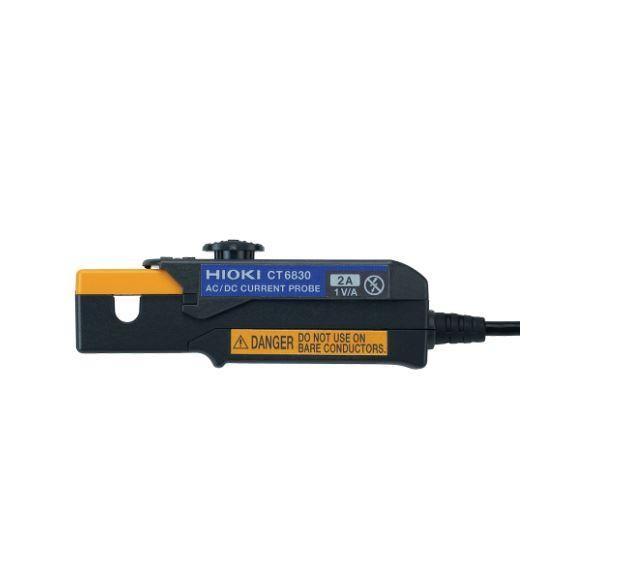

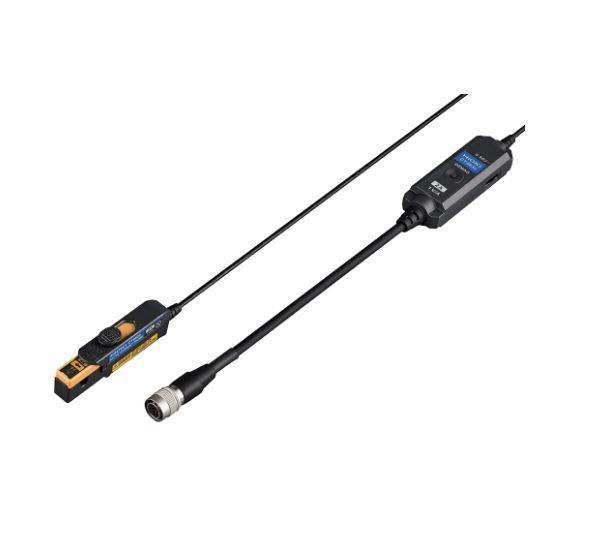

Sensor : 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable)
Relay box : 80W × 20H × 26.5D mm (excluding protrusions and the cable)
Weight : 160 g
CT6830 อุปกรณ์ที่มาในชุด
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions
CT6830 ข้อมูลจำเพาะ
Core diameter : φ 5 mm or less

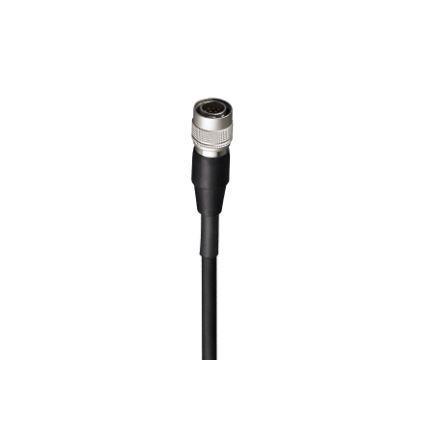

Output connectors : HIOKI ME15W
Memory function :
Instruments with a memory function can load the sensor information of the device
Compatible model: PW8001
Operating temperature range :
Sensor: -40°C to 85°C, 80% RH or less (non-condensing)
Relay box: -25°C to 50°C, 80% RH or less (non-condensing)
Output cable length :
4 m (between sensor and relay box), 0.2 m (between relay box and output connector)
