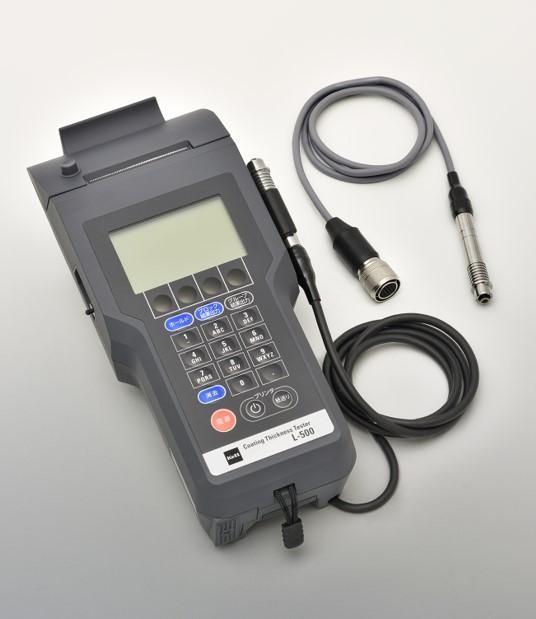

Kett L-500 Coating Thickness Testers เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ

รหัสสินค้า

L-500

ภาพรวม

Coating Thickness Testers เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ ช่วงการวัดแบบ Electromagnetic type: 0 - 2500 µm Eddy current type: 0 – 1,200 µm ยี่ห้อ Kett, Japan

Index

    L-500 | ฟังก์ชั่นการวัด

    เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ

    L-500 | จุดเด่น

    Flagship model of thickness tester with built-in printer

    Must be used with an optional probe (EP-100 electromagnetic probe or HP-100 eddy current probe)

    Measurement range of electromagnetic type: 0 - 2500 µm; eddy current type: 0 – 1,200 µm

    Records 24,000 data sets, statistical calculation function

    L-500 | ช่วงการวัด

    *Depends on the probe connected
    Electromagnetic (EP-100): 0-2,500µm or 99.0mils
    Eddy-current (HP-100): 0-1,200µm or 47.0mils


    Resolution  0.1µm (less than 100µm), 1µm (100µm or greater)

    L-500 | Power Supply

    AC100V-220V or 1.5V "AA" size Alkaline batteries x 8
    (x4 for main unit and x4 for printer)

    L-500 | ขนาดสินค้า

    126mm(W)×256mm(D)×93mm(H)750g

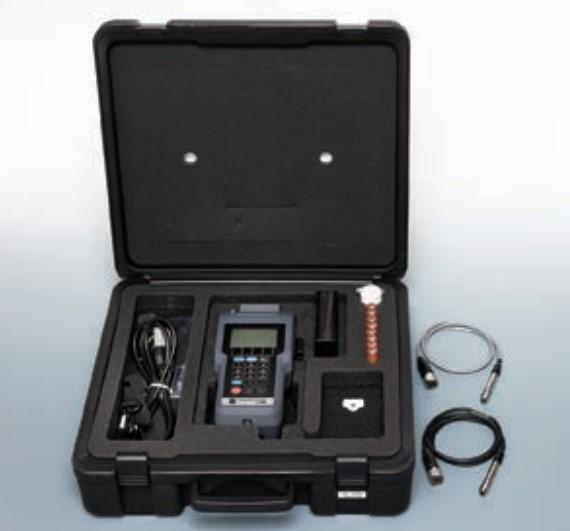

    L-500 | อุปกรณ์ที่มาในชุด

    Iron substrate (for Fe probe),

    aluminum substrate (for NFe probe),

    calibration foil x 6,

    battery 1.5V (AA alkali) ×8,

    AC adapter,

    power cable POC00,

    probe adapter,

    strap,

    printer paper ×2,

    surface protective sheet ×3,

    calibration foil case,

    carrying case,

    Easy Guide for Calibration,

    Operating Manual

    L-500 | อุปกรณ์เสริม

    Calibration foils (thickness other than those supplied), Measuring Stand LW-990

    L-500 | ข้อมูลจำเพาะ

    Measurement Method Electromagnetic induction/Eddy-current

    Applications Non-magnetic coating on iron and steel (ferrous) substrates and Insulating coatings on non-ferrous substrates

    Measurement Precision

    *Depends on the probe connected
    Electromagnetic (EP-100): Under 15µm: ±0.3mm, 15µm or greater: ±2%, 1,000μm or greater: ±3%
    Eddy-current (HP-100): Under 50μm:±1.0µm, 50µm or greater: ±2%

    Conformity Standard

    Electromagnetic induction: JIS K5600-1-7, JIS H0401, JIS H8401, JIS H8501, / ISO 2808, ISO 2064, ISO 1460, ISO 2178, ISO 19840 / ASTM B 499, ASTM D 7091, ASTM E 376
    Eddy-current: JIS K5600-1-7, JIS H8680-2, JIS H8501 / ISO 2808, ISO 2360, ISO 2064, ISO 19840 /ASTM B 244, ASTM D 7091, ASTM E 376

    Statistical Functions Number of measurements, Average value, Standard deviation, Maximum value, Minimum value, Block and group calculation

    Applicable Probe One-point contact fixed pressure (EP-100, HP-100, EP-110, HP-110)

    Display Format Digital (LCD, smallest displayed unit 0.1mm)

    Output USB serial

    Printer integrated

    Since results can be printed for each measurement, it is possible to manage them in combination with printed

    results on paper and measured objects.

    Batch printout of stored results and printout of statistical results collected by each block or group are also available.

    Printout can be turned off if unnecessary.

    Printout example

    Kett L-500 Coating Thickness Testers เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ


                                                                                                                                           The icon will be displayed on the screen when the printer is off.

    Large display

    On the large display, the calibration procedure is displayed interactively and statistical results are displayed visibly and clearly.

    • High visibility is provided for dark places thanks to the built-in backlight.
    Kett L-500 Coating Thickness Testers เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ

                                                                                                                                                                               Film calibration and substrate calibration procedures are displayed interactively.

    Kett L-500 Coating Thickness Testers เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ

                                                                                                                                                                                            Statistical calculation results can be checked on the same screen.

    Kett L-500 Coating Thickness Testers เครื่องวัดความหนาผิวเคลือบแบบแยกโพรบ

                                                                                                                                                                           Switching between the normal display (left) and the simple display (right) is available.
