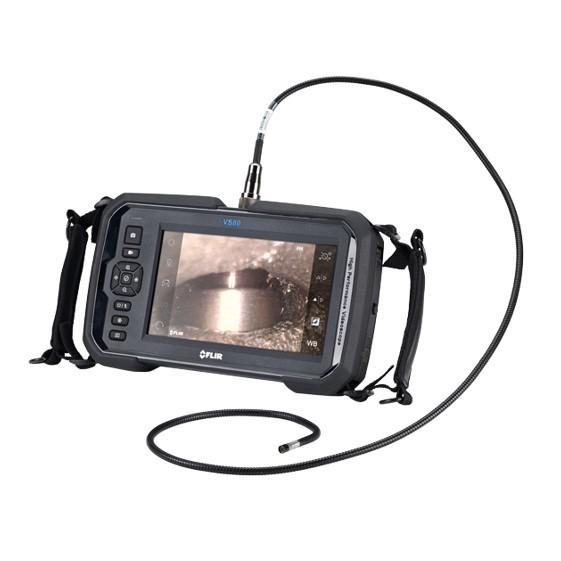

FLIR VS80-KIT-8 กล้องส่องท่อพร้อมโพรบ 3.9 mm-2meter-HD 4-Way
Teledyne FLIR

FLIR VS80-KIT-8 กล้องส่องท่อพร้อมโพรบ 3.9 mm-2meter-HD 4-Way

รหัสสินค้า

VS80-KIT-8

ภาพรวม

VS80-KIT-8 กล้องส่องท่อ Videoscope Kit with HD 4-Way Articulating Camera Probe 3.9 mm x 2 m long เเบบปรับทิศทาง 4-Way ยี่ห้อ FLIR, USA

เพิ่มคำถาม

VS80-KIT-8 ฟังก์ชั่นการวัด

กล้องส่องท่อ Videoscope

VS80-KIT-8 จุดเด่น

Inspect hard-to-reach and difficult-to-access components without disassembling equipment or damaging structures

Choose from seven different probe options including thermal and twoand four-way articulating probes for the widest range of inspections

Make historical or standard image comparisons easily with unique live reference image comparison

Capture up to 1280 × 720 HD resolution in both still images and videos.Comment on your findings with both voice and text annotations

Inspect for up to eight hours without recharging the battery

Main Applications

Survey inside HVAC systems, pipes, and electrical conduits without the need to disassemble the components being inspected

Inspect vehicle engines for carbon deposits and signs of wear,transmissions and gear boxes for signs of component failure as well as
other difficult to access areas within the vehicle

Inspect industrial gearboxes, motors, and other equipment that is difficult to access to identify potential failures

VS80-KIT-8 ช่วงการวัด

Display Resolution 1024 × 600

HD Camera Resolution 1280 × 720

VS80-KIT-8 Power Supply

VS80: Li-ion 3.6 V (internal) recharging the battery

VS80-KIT-8 อุปกรณ์ที่มาในชุด

VS80 High-Performance Videoscope,

camera probe HD 4-Way Articulating 3.9 mm x 2 m long,

neck strap,
hand straps,

audio headset,

removable/retractable sun visor,

power adapter with
AC plugs (for US, UK, EU, AUS),

heavy duty shipping/carrying case,

32 GB microSD memory card,

USB C to USB A cable,

micro HDMI to HDMI video cable,

Quick Start Guide

VS80-KIT-8 อุปกรณ์เสริม

VS80A4HD-39-2RM VS80 HD 4-way Articulating Camera Probe 3.9 mm x 2 m long
VS80A2-45-1RM VS80 2-way Articulating Camera Probe 4.5 mm × 1 m long
VS80C2HD-49-3RM VS80 Dual HD Camera Probe 4.9 mm x 3 m long
VS80CHD-55-1RM VS80 HD Camera Probe 5.5 mm × 1 m long
VS80C55-1RM VS80 Camera Probe 5.5 mm × 1 m long
VS80C10-25RM VS80 Plumbing Spool and Camera Probe 10 mm × 25 m long
VS80CIR-21 VS80 160 × 120 IR Thermal Camera Probe 19 mm × 1 m long

VS80-KIT-8 ข้อมูลจำเพาะ

FLIR VS80 (Display Only)

Touchscreen Size (diagonal)  178 mm (7 in)

Battery Life 8 hours

Data Capture Modes JPEG, video, photo comments, voice comment

2nd Video Screen Capable Yes, HDMI

Live Reference Image Comparison On screen side-by-side

Wireless Mobile App Compatibility FLIR Tools Mobile

Text Image Annotation Photo comments

Voice Annotation Audio headset included

Data Transfer USB, micro SD, wireless (Wi-Fi)

Memory Up to 64 GB micro SD (32 GB micro SD card included)

Operating Temperature -10°C to 60°C (14°F to 140°F)

Operating Humidity 10-95% Non-Condensing

FLIR VS80 Camera Probes

Number of Probe Options  8 (VS80A4HD-39-2RM)
General Purpose Probe Options Standard & high definition
Dual View (Front/Side) Probe Option High definition
4-Way Articulating Probe Option High definition

Visual Probe FOV 90° typical

Visual Probe Depth of Field 10 mm to infinity

Thermal Camera Option 160 × 120 (19,200 pixels) IR resolution

Specifications subject to change. For the most up-to-date specifications, please visit flir.com.
