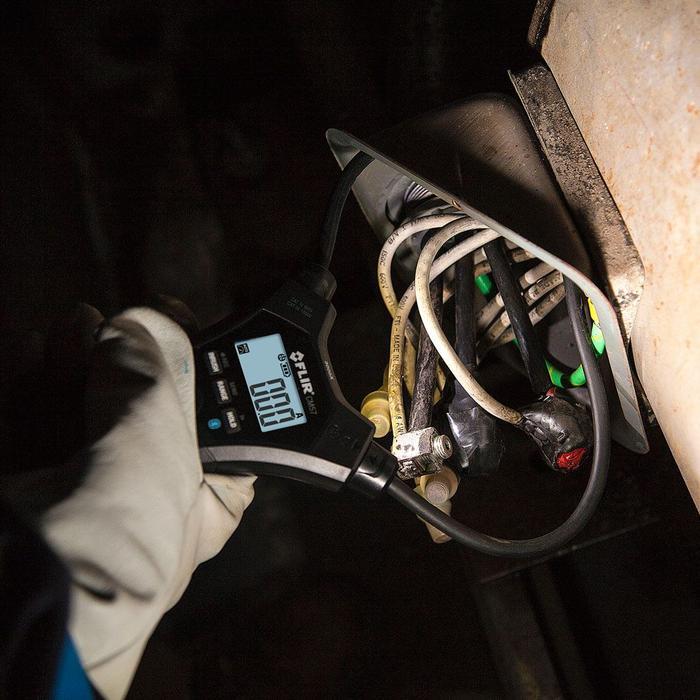

FLIR-Electrician-SET3 แคลมป์มิเตอร์ / กล้องถ่ายภาพความร้อนสำหรับสมาร์ตโฟน

AC Current Bandwidth

45–500 Hz (sine wave)

AC Current Ranges and Resolution

30.00 A, 300.0 A, 3000 A

AC Response

True RMS

Bluetooth range max

10 m (32 ft)

Data Record Mode

20,000 points; 1 minute sample rate

Wireless ID# max

Up to 20

Display

3000-count LCD with backlight and multi‐function indicators

Auto Power Off

Approximately 10 minutes

Battery Life

100 hours with alkaline batteries (calculated)

Battery Type

2 x 1.5 V AAA

Drop test

3 m (9.8 ft)

IP Rating

IP54 dust-protected and splash-resistant

Operating Altitude

2000 m (6562 ft) max

Operating Humidity

Maximum 80% up to 35°C decreasing linearly to 60% at 45°C

Operating Temperature

0 to 50°C

Safety Rating

CAT IV-600 V, CAT III-1000 V

Storage Humidity

80% relative humidity (maximum)

Storage Temperature

-20 to 60°C without batteries

Thermal pixel size

12 µm

Thermal resolution

19,200 pixels (160 × 120)

Thermal sensitivity

70 mK

Drop tested

Drop from 1.8 m (5.9 ft)

Spectral range

8 – 14 µm

Visual resolution

1440 × 1080

HFOV / VFOV

50° ±1° / 43° ±1°

Frame rate

8.7 Hz

Focus

Fixed 15 cm – infinity

Accuracy

±3°C (5.4°F) or ±5%, typical percent of the difference between ambient and scene temperature.

Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Emissivity correction

Matte, Semi-Matte, Semi-Glossy, Glossy
