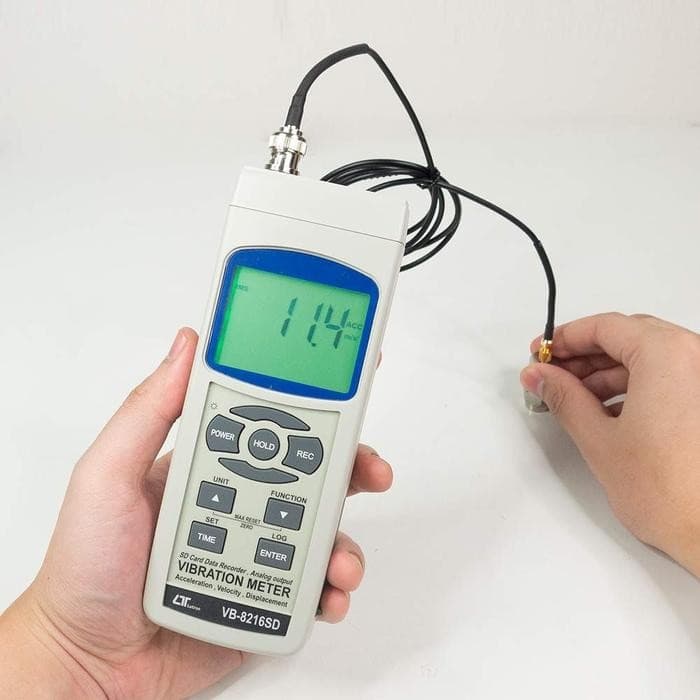

Lutron VB-8216SD เครื่องวัดความสั่นสะเทือน

รหัสสินค้า

VB-8216SD

฿28,600.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดความสั่นสะเทือน Analog Output เซนเซอร์แบบแม่เหล็ก Magnetic base สามารถวัด Acceleration, Velocity, Displacement ช่วงความถี่ 10 Hz ถึง 1 kHz (มาตรฐาน ISO2954) บันทึกข้อมูลลงบน SD card แบบ Real time Vibration sensor cable ยาว 1.2 เมตร ยี่ห้อ Lutron, Taiwan

เพิ่มคำถาม

VB-8216SD | ฟังก์ชั่นการวัดวัดความสั่นสะเทือนVB-8216SD | จุดเด่นการวัด Frequency 10 Hz ถึง 1 kHz ตามมาตรฐาน ISO 2954

  • รองรับรูปแบบการวัดความสั่นสะเทือน 3 รูปแบบ Acceleration, Velocity, Displacement
  • รองรับหน่วยการวัดทั้ง Metric และ Imperial
  • ตัวเครื่องมี Microcomputer circuit ให้ผลการวัดที่มีความแม่นยำสูง

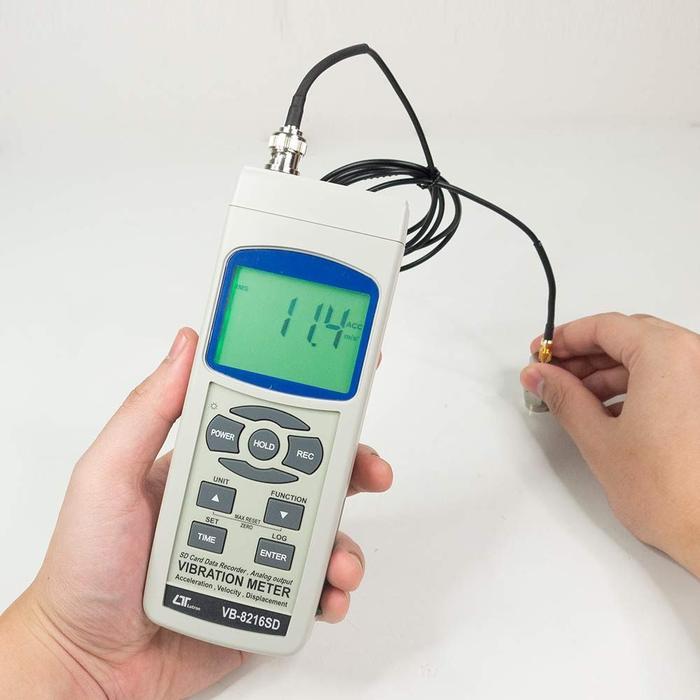

  • หน้าจอแบบ LCD มีไฟ Backlight สีเขียวใช้งานได้แม้ในที่แสงสว่างน้อย
  • ตัวเครื่องมีฟังก์ชั่นค้างค่าผลการวัดที่หน้าจอ
  • ตัวเครื่องมีฟังก์ชั่นค้างค่าผลการวัดที่หน้าจอ และสามารถกดเรียกดู ค่าการวัดสูงสุด / ค่าการวัดต่ำสุดได้
  • ฟังก์ชั่นปิดเครื่องอัตโนมัติ ช่วยในการประหยัดแบตเตอรี่ เมื่อไม่มีการใช้งาน
  • การบันทึกค่าโดยผู้ใช้งาน (Manual datalogger) สามารถกำหนดตำแหน่งในการวัดที่แตกต่างกัน (1 ตำแหน่ง ถึง ตำแหน่ง 99 ตำแหน่ง)

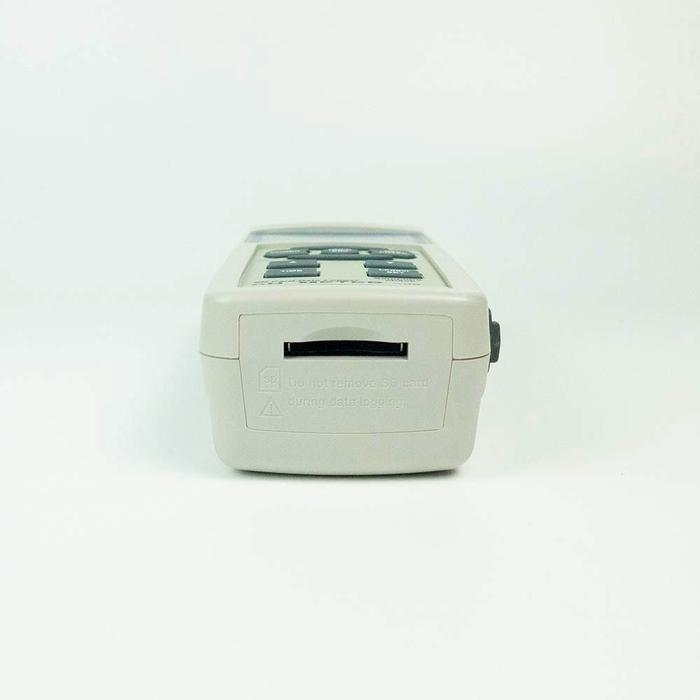

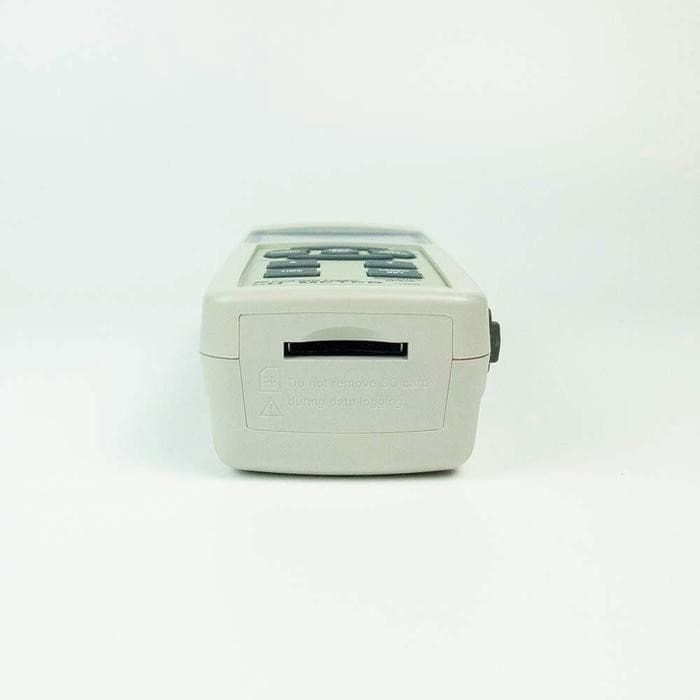

  • รองรับการ SD Card ขนาด 1GB ถึง 32GB (ทางเลกะแถมให้ฟรี ขนาด 32GB)
  • บันทึกค่าการวัดลงบน SD Card แบบเรียลไทม์ โดยผลการบันทึกที่ได้จะมีข้อมูล วันที่และเวลาระบุเอาไว้ และยังสามารถตั้งค่าความถี่ในการบันทึกแบบอัตโนมัติให้กับตัวเครื่องได้เป็น Step ได้ดังนี้ 0, 1, 2, 3, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 วินาที
  • ดูผลการวัดที่บันทึกไว้ได้โดยไม่จำเป็นต้องติดตั้ง software โดยเสียบการ์ด SD Card กับคอมพิวเตอร์ แล้วดูผลการบันทึกไว้ได้จากโปรแกรม Excel ได้โดยตรง โดยข้อมูลที่แสดงจะมี (ค่าการวัดที่บันทึก / ปี/ เดือน/ วันที่/ ชั่วโมง/ นาที/ วินาที) และผู้ใช้งานสามารถทำกราฟเพื่อวิเคราะห์ผลเพิ่มเติมได้จากโปรแกรม Excel

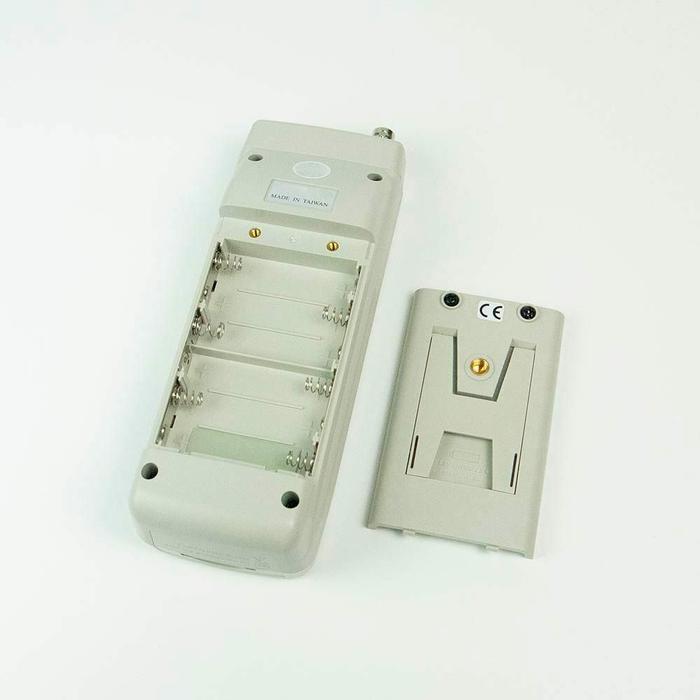

  • ตัวเครื่องใช้ไฟจาก Batteries AA จำนวน 6 ก้อน (ทางเลกะแถมให้ฟรี)

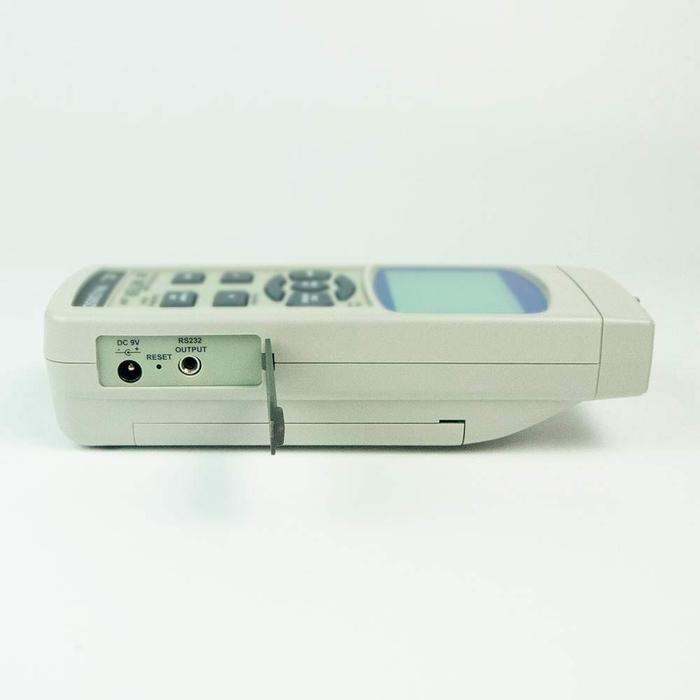

  • ตัวเครื่องรองรับการใช้งานร่วมกับ Adapter DC 9V รุ่น AP-9VA (แยกจำหน่ายไม่รวมมาในชุด)

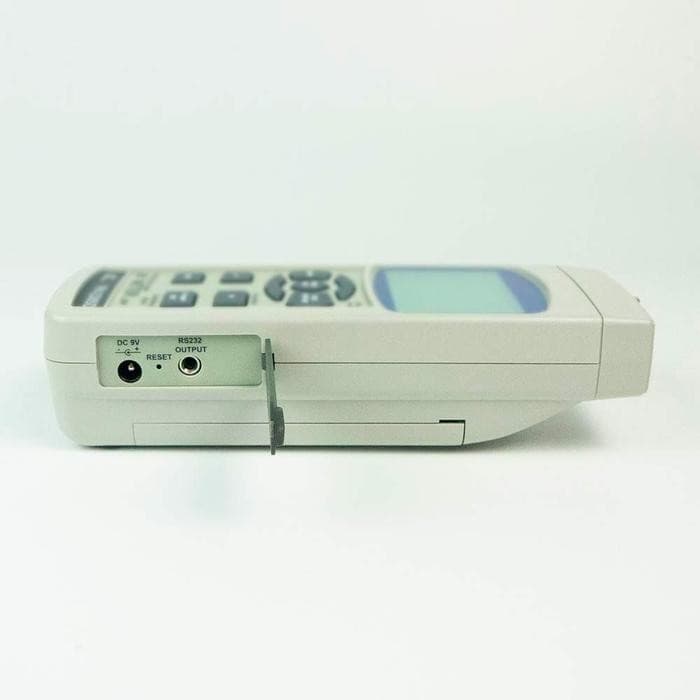

  • รองรับเชื่อมต่อกับ COMPUTER ด้วยสาย RS232 UPCB-02

VB-8216SD | ช่วงการวัด

Acceleration (RMS, Peak, Max Hold)

m/s²

Range  0.5 to 199.9 m/s²  Resolution  0.1 m/s²  Accuracy ± (5% + 2 d) reading  @ 160Hz, 80Hz, 23 ± 5 °C

G

Range  0.05 to 20.39 G Resolution  0.01 G  Accuracy  ± (5% + 2 d) reading  @ 160Hz, 80Hz, 23 ± 5 °C

ft/s²

Range  2 to 656 ft/s²  Resolution 1 ft/s²  Accuracy  ± (5% + 2 d) reading  @ 160Hz, 80Hz, 23 ± 5 °C


Velocity (RMS, Peak, Max Hold)

mm/s

Range 0.5 to 199.9 mm/s Resolution 0.1 mm/s Accuracy ± (5% + 2 d) reading  @ 160Hz, 80Hz, 23 ± 5 °C

cm/s

Range 0.05 to 19.99 cm/s  Resolution 0.01 cm/s  Accuracy  ± (5% + 2 d) reading  @ 160Hz, 80Hz, 23 ± 5 °C

inch/s

Range  0.02 to 7.87 inch/s Resolution  0.01 inch/s  Accuracy± (5% + 2 d) reading  @ 160Hz, 80Hz, 23 ± 5 °C


Displacement (p-p, Max Hold p-p)

mm

Range 0.014 to 1.999 mm  Resolution 0.001 mm  Accuracy ± (5% + 2 d) reading @ 160Hz, 80Hz, 23 ± 5 °C

inch

Range  0.001 to 0.078 inch Resolution  0.001 inch Accuracy ± (5% + 2 d) reading @ 160Hz, 80Hz, 23 ± 5 °C

Frequency range  10 Hz to 1 kHz

VB-8216SD | Power Supply

Battery AA x 6 or DC 9V adapter (optional)

VB-8216SD | ขนาดสินค้า

Meter: 185 x 73 x 47.5 mm/ 360 g
Probe: ø16 x 37mm / 99 g
Cable length: 1.2 meter

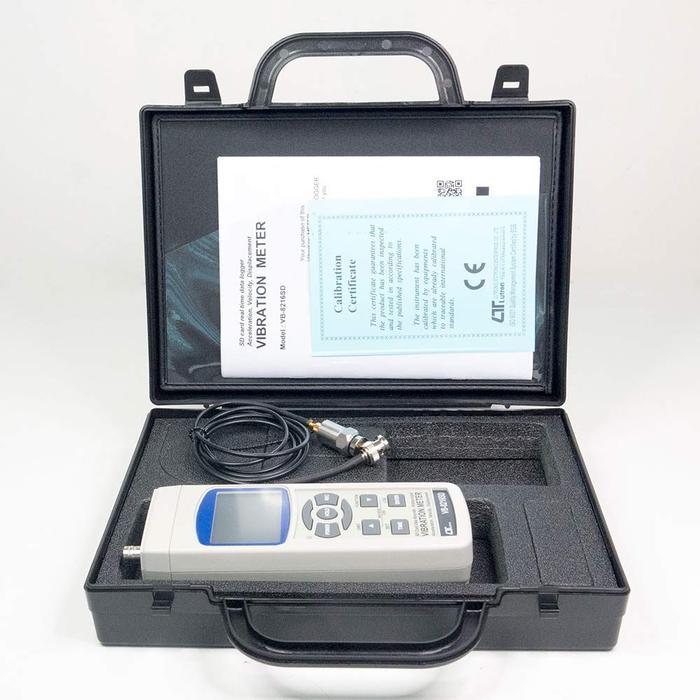

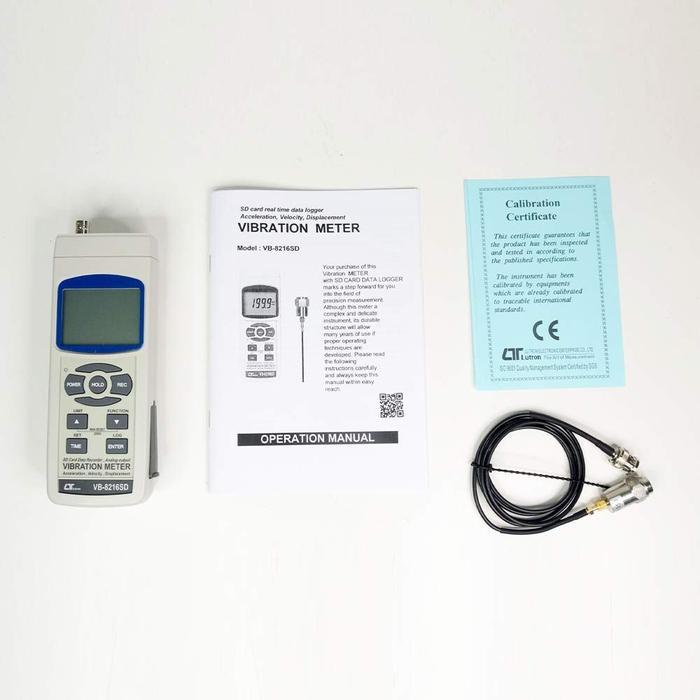

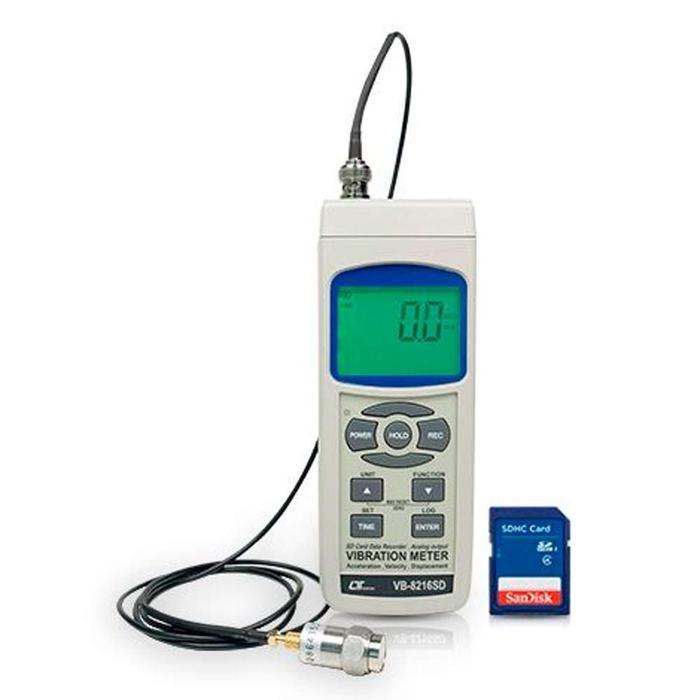

VB-8216SD | อุปกรณ์ที่มาในชุด

  • Main unit × 1

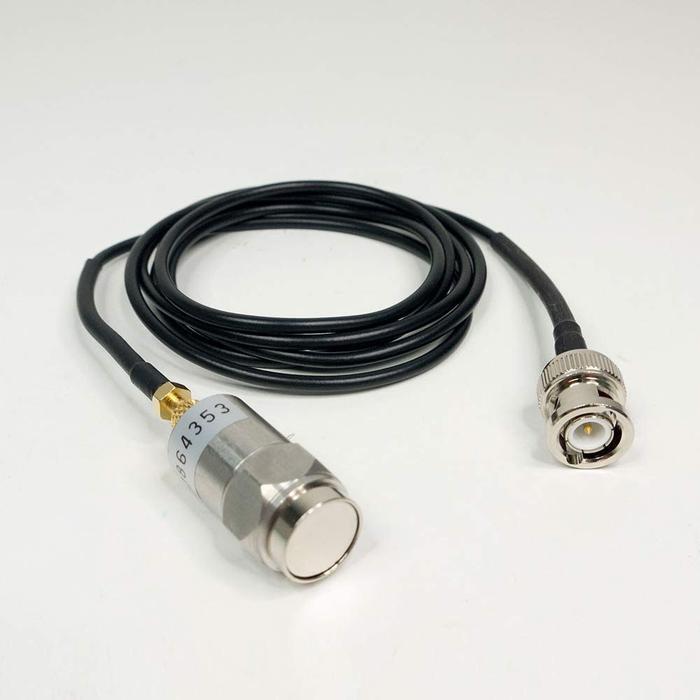

  • Vibration sensor with cable × 1
  • Instruction manual × 1
  • Hard carrying case × 1
  • Calibration Certificate (from manufacture) × 1
  • SD Card ขนาด 32GB (ทางเลกะแถมให้ฟรี) × 1
  • Batteries AA (ทางเลกะแถมให้ฟรี) × 6

VB-8216SD | อุปกรณ์เสริม

  • Adapter AC to DC 9V (AP-9VA)
  • USB cable (USB-01)
  • RS232 cable (UPCB-02)
  • Data Acquisition software (SW-U801-WIN)

VB-8216SD | ข้อมูลจำเพาะ

Circuit  Custom one-chip of microprocessor LSI circuit

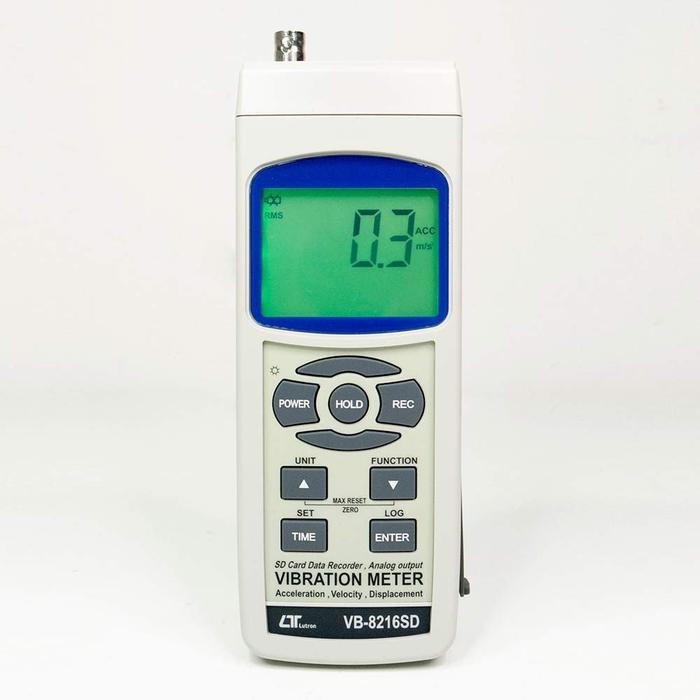

Display

LCD size: 52 x 38 mm
LCD with green backlight (ON/OFF)

Measurement Unit

Acceleration: m/s², G, ft/s²
Velocity: mm/s, cm/s, inch/s
Displacement: mm, inch

Peak Measurement

Acceleration, Velocity: To measure and update the peak value
Displacement: To measure and update the peak to peak (p-p) value

Max Hold Measurement

Acceleration, Velocity: To measure and update the max peak value
Displacement: To measure and update the max peak to peak (p-p) value

Zero ButtonUnder Accleeration (RMS) measurement, sensor motionless, press up and TIME buttons > 3 seconds

Max. Hold Reset ButtonUnder Max. hold measurement, sensor motionless, press up and TIME buttons > 3 seconds

Datalogger Sampling Time Setting range

Auto:

1 second to 3600 seconds
@Step : 0, 1, 2, 3, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds
@Sampling time can set to 1 second but memory data may loss

Manual: Push the data logger button once will save data one time
@ Set the sampling time to 0 second
@ Manual mode, can also select the 1 to 99 position (Location) no

Advanced setting

* Set clock time (Year / Month / Date , Hour / Minute / Second)
* Decimal point of SD card setting
* Auto power OFF management
* Set beep Sound ON/OFF
* Set temperature unit to or ℃ ℉
* Set sampling time
* SD memory card Format

Data error no.≤ 0.1% no. of total saved data typically

Data HoldFreeze the display reading

Memory RecallMaximum & Minimum value

Data OutputRS 232/ USB PC computer interface

Sampling time1 second

Operating Temperature & Humidity0 to 50°C  Less than 85% RH

FunctionsData hold, Max. hold reset button, Zero button, Record max./ min.
