LUTRON

Lutron VC-9210SD เครื่องวัดสูญญากาศ

รหัสสินค้า

VC-9210SD

฿11,625.00(ไม่รวมภาษี)

จำนวน

สินค้าใกล้หมดแล้ว

ภาพรวม

เครื่องวัดสูญญากาศ วัดค่า Absolute vacuum และ Absolute pressure หน่วยการวัด torr, mmHg, mbar, KPa, hPa, inch Hg, psi หน้าจอแสดงผล LCD พร้อมไฟ Backlight มีฟังก์ชั่น Data Hold, Record Max./Min., Auto Power-off รองรับการบันทึกข้อมูลด้วย SD Card (1 ถึง 32GB) ยี่ห้อ Lutron, Taiwan **ราคาโปรโมชั่น จากปกติ 15,500 บาท**

เพิ่มคำถาม

VC-9210SD | ฟังก์ชั่นการวัด

วัดสูญญากาศ (Vacuum Meters)

VC-9210SD | จุดเด่น

✔ เซนเซอร์เหมาะกับการวัดความเป็นสูญญากาศในท่อลม ท่อน้ำมัน ท่อของเหลว

✔ หน่วยการวัด torr, mmHg, mbar, KPa, hPa, inch Hg, psi

✔ รองรับ SD Card 1-32 GB

✔ ตั้งบันทึกแบบอัตโนมัติได้ตั้งแต่ 1 วินาที - 8 ชั่วโมง 59 นาที 59 วินาที

✔ หน้าจอ LCD พร้อมไฟ Backlight

✔ ฟังก์ชั่น REC (Min/ Max), Hold ค้างหน้อจอ, ปิดเครื่องอัตโนมัติ

VC-9210SD | ช่วงการวัด

mbar      : Max. range 1500 mbar      | Resolution 1 mbar           | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

KPa        : Max. range 150.0 KPa        | Resolution 0.1 KPa          | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

hPa        : Max. range 1500 hPa         | Resolution 1 hPa              | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

torr        : Max. range 1125 torr         | Resolution 1 torr              | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

mm Hg  : Max. range 1125 mm Hg  | Resolution 1 mm Hg        | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

inch Hg : Max. range 44.30 inch Hg | Resolution 0.02 inch Hg  | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

psi          : Max. range 21.75 psi         | Resolution 0.01 psi           | Accuracy ± 1 % F. S. ( 23± 5 ) Note :Included linearity, hysteresis and repeatability F.S.: Full Scale

VC-9210SD | Power Supply

แบตเตอรี่ : AAx6

VC-9210SD | ขนาดสินค้า

ขนาดตัวเครื่อง : 177x68x45 mm (350g)

ขนาดเซนเซอร์ : 90x30 dia mm (175g)

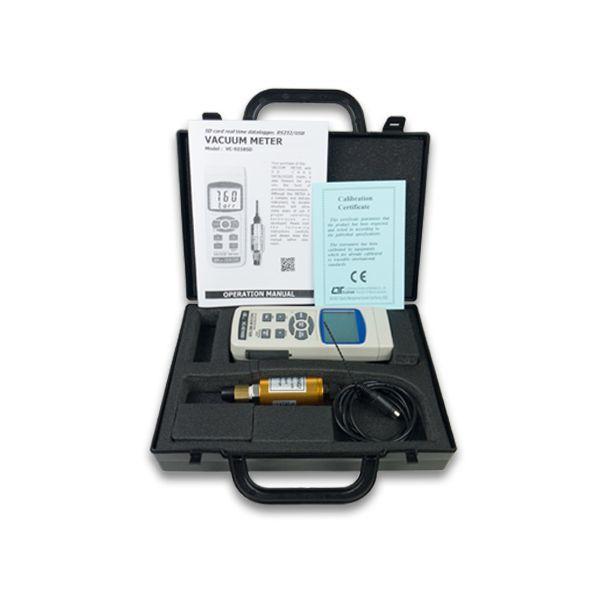

VC-9210SD | อุปกรณ์ที่มาในชุด

ตัวเครื่อง

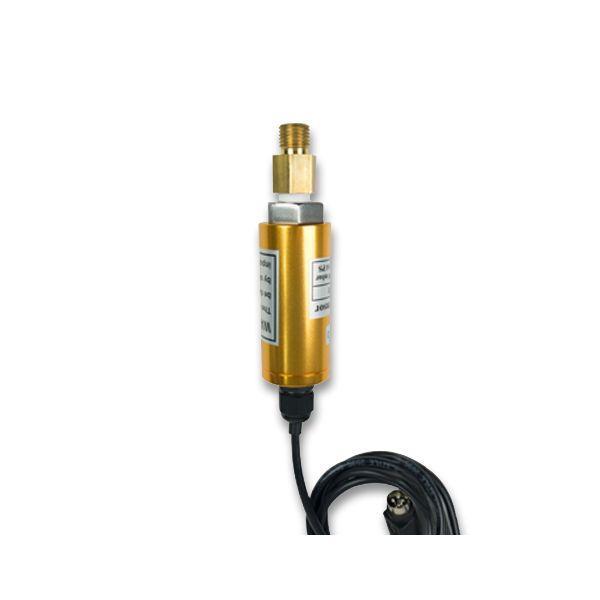

เซนเซอร์

กระเป๋า

SD Card 32GB x1

VC-9210SD | อุปกรณ์เสริม

USB Cable (USB-01)

RS232 Cable (UPCB-02)

Data Acquisition Software (SW-E816)

Adapter (AP-9VA)

VC-9210SD | ข้อมูลจำเพาะ

Circuit: Custom one-chip of microprocessor LSI circuit.

Display: LCD size : 52 mm x 38 mm

               LCD with green backlight ( ON/OFF ).

Display units: 7 kind display units : torr, mm Hg, mbar, KPa, hPa, inch Hg, psi

Zero adjust: Push button on the front panel

Span adjust: Push button gain adjustment, usage for calibration precisely if necessary.

Datalogger Sampling Time Setting range : Auto 1 sec to 8 hour 59 min. 59 sec @Sampling time can set to 1 second but memory data may loss.

 Manual Push the data logger button once will save data one time. @Set the sampling time to 0 second @Manual mode, can also select th 1 to 99 position ( Location ) no

Data error no.: 0.1% of total saved data max

Data Hold: Freeze the display reading

Memory Recall: Maximum & Minimum value

Advanced tting: * SD memory card Format

                             *Set clock time ( Year/Month/Date,Hour/Minute/Second )

                             * Set sampling time

                             * Decimal point of SD card setting

Sampling Time of Display: Approx. 1 second

Data Output: RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug

* Connect the optional USB cable USB-01 will get the USB plug

Operating Temperature: 0 to 50 . ( 32 to 122 ).

Operating Humidity: Less than 80% R.H
