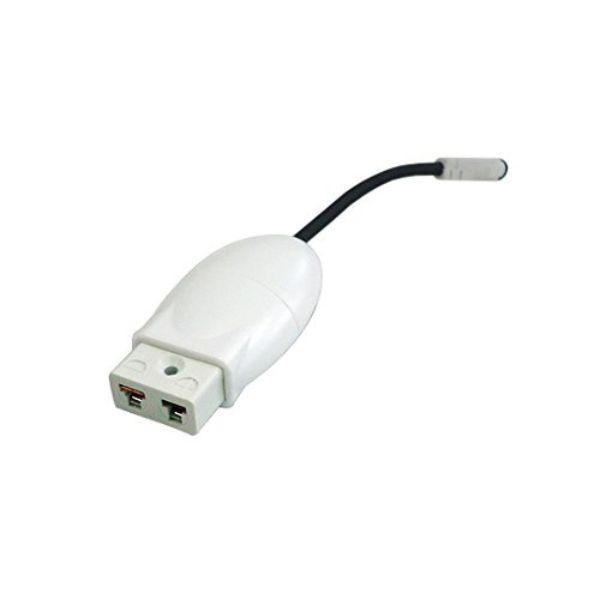

TND TCM-3010 Input Module for RTR505B, TR-55i-TC

TCM-3010 ช่วงการวัด

• Measurement Resolution : Type K, J, T: 0.1°C

                                                Type S: about 0.2 °C

• Cold Junction Compensation : -40 to 10 °C :±0.5 °C
                                                       10 to 40 °C : ±0.3 °C
                                                       40 to 80 °C : ±0.5 °C
• Thermocouple Measurement : Type K, J, T: ±(0.3 + 0.003 × t)°C

                                                      Type S: ±(1.0 + 0.003 × t)°C

• Operating Temperature : -40 to 80°C

                  Humidity : 90 %RH or less

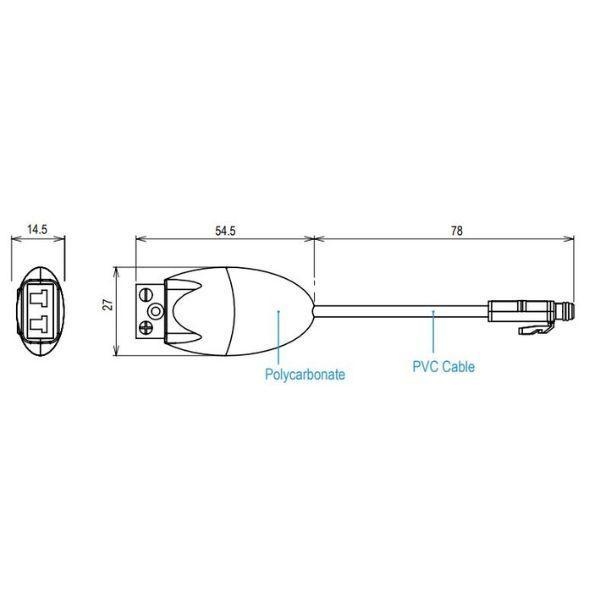

TCM-3010 ขนาดสินค้า

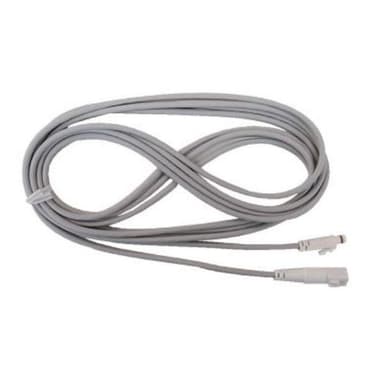

Can be extended by 3 meters

TCM-3010 ข้อมูลจำเพาะ

• Compatible Sensors : Thermocouple: Type K, J, T, S
• Measurement Range : within the sensor heat-durability range only
• Sensor Connection : Make sure to use a thermocouple sensor with a miniature thermocouple plug attached. T&D does not make available these plugs or sensors for sale.
