ฟังก์ชั่นการวัด

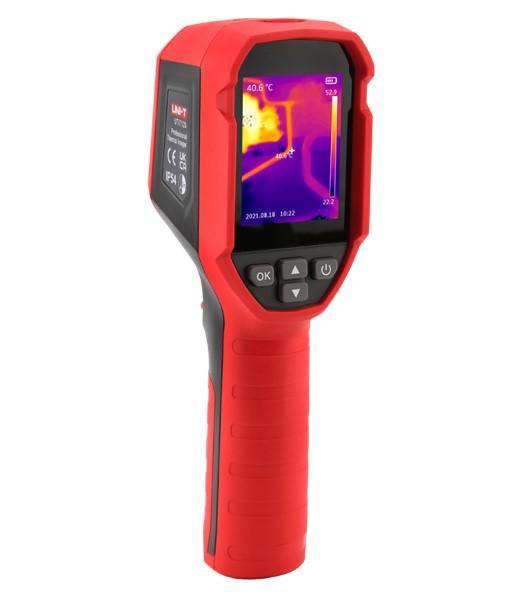

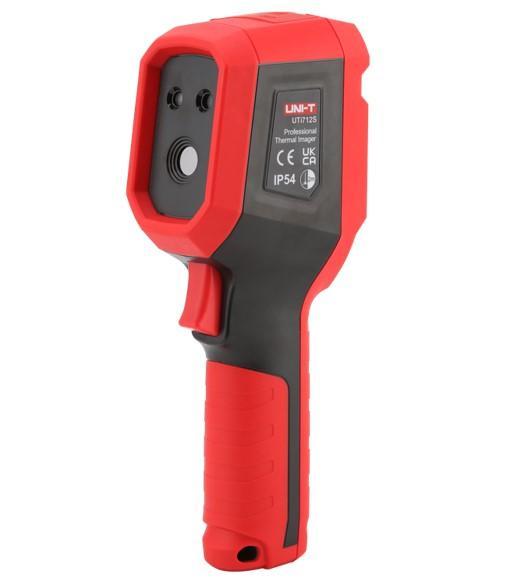

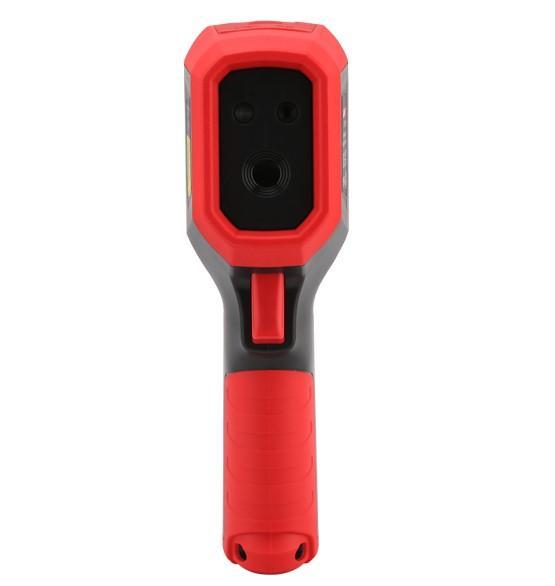

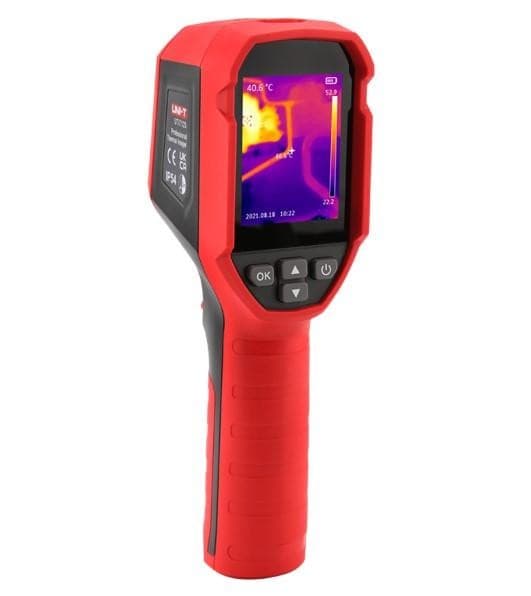

กล้องถ่ายภาพความร้อน Thermal Camera
จุดเด่น
- 2.4” TFT Screen (320×240 Pixels)
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 6(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
- Buzzer alarm
- Laser pointer
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery

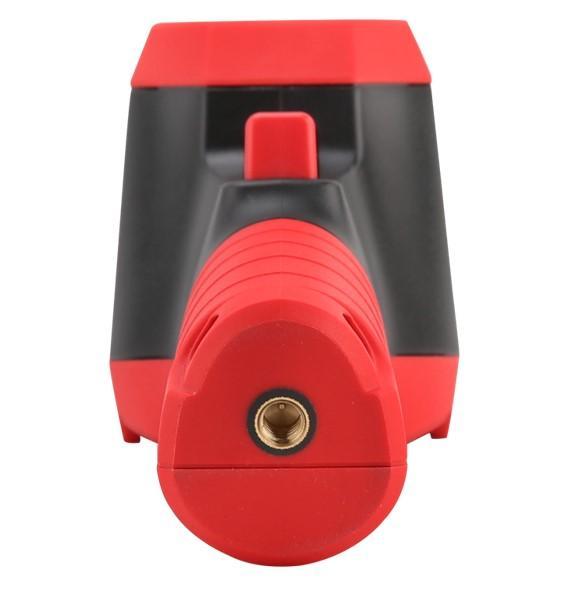

- 1/4”tripod mounting hole
- IP54
- 2m drop proof
ช่วงการวัด
-20℃ to 400℃ / -4℉ to 752 ℉
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Power Supply
Fixed Li-ion battery (3.7V 2600mAh)
ขนาดสินค้า
197mm×72mm×60mm / 310g
อุปกรณ์ที่มาในชุด
Hand strap
Micro SD card
Type-C USB cable
English manual
Documents download operation guide card
ข้อมูลจำเพาะ
Technical Data
IR resolution (Pixels) 120×90
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Functions
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
PC software analysis √
Laser pointer √
LED light √
General Characteristics
Battery operation time ≥8 hours
USB Type-C
Storage 16GB Micro SD card
Image/Video storage format BMP
Certificates CE,UKCA,FCC,RoHS
