UTi260B ฟังก์ชั่นการวัด
กล้องถ่ายภาพความร้อน Thermal Camera
UTi260B จุดเด่น
Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modess: Thermal,Visual image,Fusion,PIP
Digital camera resolution: 640×480
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery

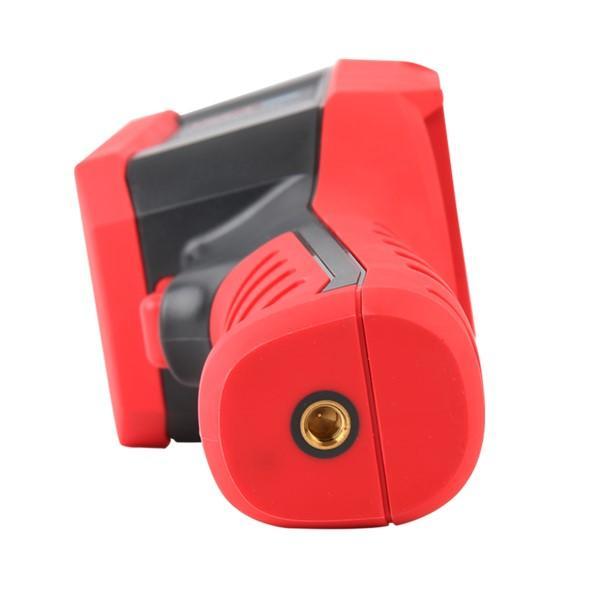

1/4”Tripod Mounting Hole
IP65
2m drop proof
UTi260B ช่วงการวัด
-20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
UTi260B Power Supply
Fixed Li-ion battery (3.6V 5000mAh)
UTi260B ขนาดสินค้า
236mm×75.5mm×86mm / 490g
UTi260B อุปกรณ์ที่มาในชุด
Micro SD card
Type-C USB cable
English manual
Documents download operation guide card
UTi260B ข้อมูลจำเพาะ
Technical Data
IR resolution (Pixels) 256×192
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 3 Points
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis √
General Characteristics
Battery operation time ≥ 6 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
