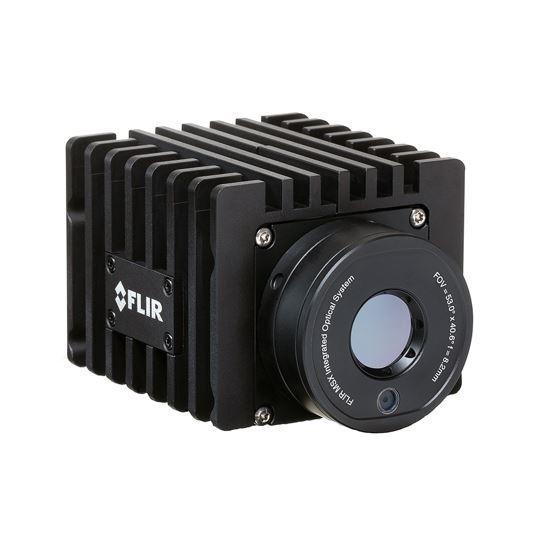

T300389 Smart Sensor configuration (FLIR A50/A70)
Teledyne FLIR

T300389 Smart Sensor configuration (FLIR A50/A70)

รหัสสินค้า

T300389

ภาพรวม

Smart Sensor configuration The Advanced Smart Sensor configuration and the Advanced Image Streaming configuration require the Smart Sensor configuration (FLIR A50/A70) and the Image Streaming configuration (FLIR A50/A70), respectively.

Index

    T300389 ฟังก์ชั่นการวัด

    configuration (FLIR A50/A70)

    T300389 ข้อมูลจำเพาะ

    Imaging and optical data

    Infrared resolution
    Depending on Thermal Core used; see Thermal Core specification
    Thermal sensitivity (NETD)
    Depending on Thermal Core used; see Thermal Core specification
    Field of view (FOV)
    Depending on Thermal Core used; see Thermal Core specification
    Minimum focus distance
    Depending on Thermal Core used; see Thermal Core specification
    Focal length
    Depending on Thermal Core used; see Thermal Core specification
    Spatial resolution (IFOV)
    Depending on Thermal Core used; see Thermal Core specification
    f-number
    Depending on Thermal Core used; see Thermal Core specification
    Image frequency 30 Hz
    Focus Fixed


    Detector data

    Focal plane array/spectral range
    Uncooled microbolometer/7.5–14 µm
    Detector pitch
    Depending on Thermal Core used; see Thermal Core specification



    Measurement

    Camera temperature range
    Depending on Thermal Core used; see Thermal Core specification
    Object temperature range and accuracy
    (for ambient temperature 15–35°C (59–95°F))

    Depending on Thermal Core used; see Thermal Core specification



    Measurement analysis

    Standard functions
    -10 Spotmeters
    -10 Boxes
    --3 Deltas (difference any value/reference/external lock)
    -1 Isotherm (above/below/interval)
    -1 Iso-coverage
    -1 Reference temperature
    Automatic hot/cold detection
    Max./min. temperature value and position shown within Box
    Schedule response
    sftp (image), SMTP (image and/or measurement data/result)
    Measurement presets Yes
    Atmospheric transmission correction
    Based on inputs of distance, atmospheric temperature, and relative humidity
    Lens transmission correction
    Automatic, based on signals from internal sensors
    Emissivity correction
    Variable from 0.01 to 1.0
    Reflected apparent temperature correction
    Based on input of reflected temperature
    External optics/windows correction
    Based on input of optics/window transmission and temperature
    Measurement corrections
    -Global object parameters
    -Local parameters per analyze function
    Measurement frequency Up to 10 Hz
    Measurement result read-out
    -Ethernet/IP (pull)
    -Modbus TCP Server (pull)
    -MQTT (push)
    -Query over REST API (pull)
    -Measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960), read access only.
    -Web interface


    Configuration of camera

    Web interface Yes


    Alarm

    Alarm functions
    On any selected measurement function
    Digital in
    Internal camera temperature
    Alarm output
    Digital out
    E-mail (SMTP) (push)
    EtherNet/IP (pull)
    File transfer (FTP) (push)
    Modbus TCP Server (pull)
    MQTT (push)
    Query over RESTful API (pull)
    Store image or video


    Recording of still images/video

    Image storage
    Format: FLIR radiometric JPEG
    Number of images: 100
    Storage as function of:
      -Alarm
      -Scheduling
      -User interaction (camera web)
    Video storage
    Format: H.264
    Number of videos: 10
    Storage as function of alarm; 5 sec. before alarm and 5 sec. after alarm.
