Lutron UVA-365SD เครื่องวัดแสงยูวีเอLutron UVA-365SD เครื่องวัดแสงยูวีเอLutron UVA-365SD เครื่องวัดแสงยูวีเอLutron UVA-365SD เครื่องวัดแสงยูวีเอLutron UVA-365SD เครื่องวัดแสงยูวีเอ
LUTRON

Lutron UVA-365SD เครื่องวัดแสงยูวีเอ

รหัสสินค้า

UVA-365SD

฿19,800.00(ไม่รวมภาษี)

จำนวน

สินค้าในคลัง7

ภาพรวม

เครื่องวัดแสงยูวีเอ Long wave 365 nm UV irradiance measurement Two Ranges : 2 Mw/CM², 20 Mw/CM² ประมวณผลผ่านทาง SD Card ใช้งานง่าย ไม่ต้องลงโปรแกรม แสดงผลผ่านหน้าจอ พร้อมทั้งข้อมูลบันทึก วัน-เวลา ที่บันทึกข้อมูล ยี่ห้อ Lutron, Taiwan

เพิ่มคำถาม

UVA-365SD ฟังก์ชั่นการวัด

เครื่องวัดแสงยูวีเอ

UVA-365SD จุดเด่น

✔แสดงผลผ่านหน้าจอ พร้อมทั้งข้อมูลบันทึก วัน-เวลา ที่บันทึกข้อมูลตามจริงผ่านทาง SD Card

✔มีความสเถียร และแม่นยำสูง น้ำหนักเบา ใช้งานง่าย

✔UV Sensor spectrum รองรับการวัดรังสีไวโอเล็ตที่มีความยาวคลื่นตั้งแต่ 260 ถึง 390 nm

UVA-365SD ช่วงการวัด

Range 1 : 2 mW/cm² : 1.999 mW/cm² x 0.001 mW/cm²

Range 2 : 20 mW/cm² : 19.99 mW/cm² x 0.01 mW/cm²

UVA-365SD Power Supply

Battery AA x 6

UVA-365SD ขนาดสินค้า

Dimension / Weight: 177 x 68 x 45 mm / 351 g

UVA-365SD อุปกรณ์ที่มาในชุด

กระเป๋า

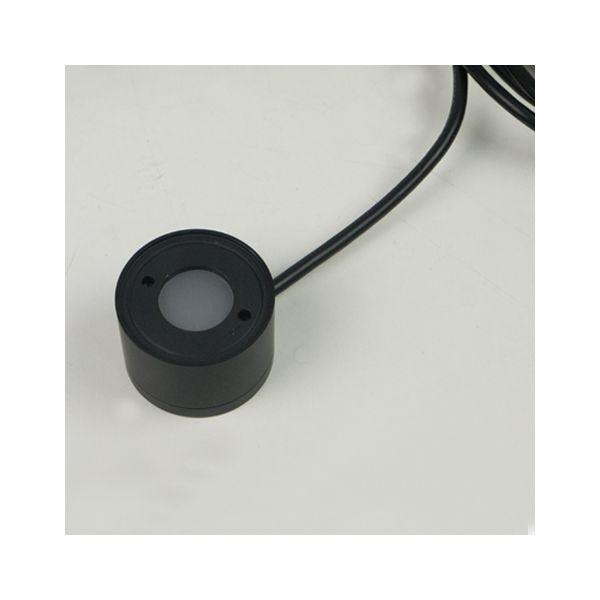

UVA light sensor
SD Card 16GB

UVA-365SD อุปกรณ์เสริม

Thermocouple Probe (Thermocouple))
Adapter AC to DC 9V (AP-9VA)
USB cable (USB-01))
RS232 cable (UPCB-02)
Data Acquisition software (SW-U801-WIN)

UVA-365SD ข้อมูลจำเพาะ

CircuitCustom one-chip of microprocessor LSI circuit
Display
LCD size: 52 x 38mm
LCD with green backlight (ON/OFF)
Measurement
UVC Light
Type K/J thermometer
UV Sensor spectrum cover range
Please refer to the attach spectrum diagram.
UVC Sensor structure
The exclusive UVC photosensor with the cosine correction filter
UVA light zero adjustment
By push button
Memory with Recall
Records Maximum & Minimum readings with recall
Datalogger Sampling Time Setting range

Auto: 1 to 3600 seconds
@ Sampling time can be set to 1 second, but memory data may lossManual: Push the data logger button, once will save data one time
@ Set the sampling time to 0 second
@ Manual mode can also select the 1 to 99 position (Location) no.

Memory Card
1 to 32GB
Advanced setting
Set clock time (Year/ Month/ Date, Hour/ Minute/ Second)
The decimal point of the SD card setting
Auto power OFF management
Set beep Sound ON/OFF
Set thermometer type to type K or type J
Set temperature unit to °C or °F
Set sampling time
SD memory card Format
Temperature Compensation
Automatic temp compensation for the type K/J thermometer
Data Hold
Freeze the display reading
Sampling Time of Display
Approx. 1 second
Data Output
RS232/USB PC computer interface
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug
* Connect the optional USB cable USB-01 will get the USB plug
Operation Temperature / Humidity
0 to 50°C / Less than 85% RH
