LUTRON

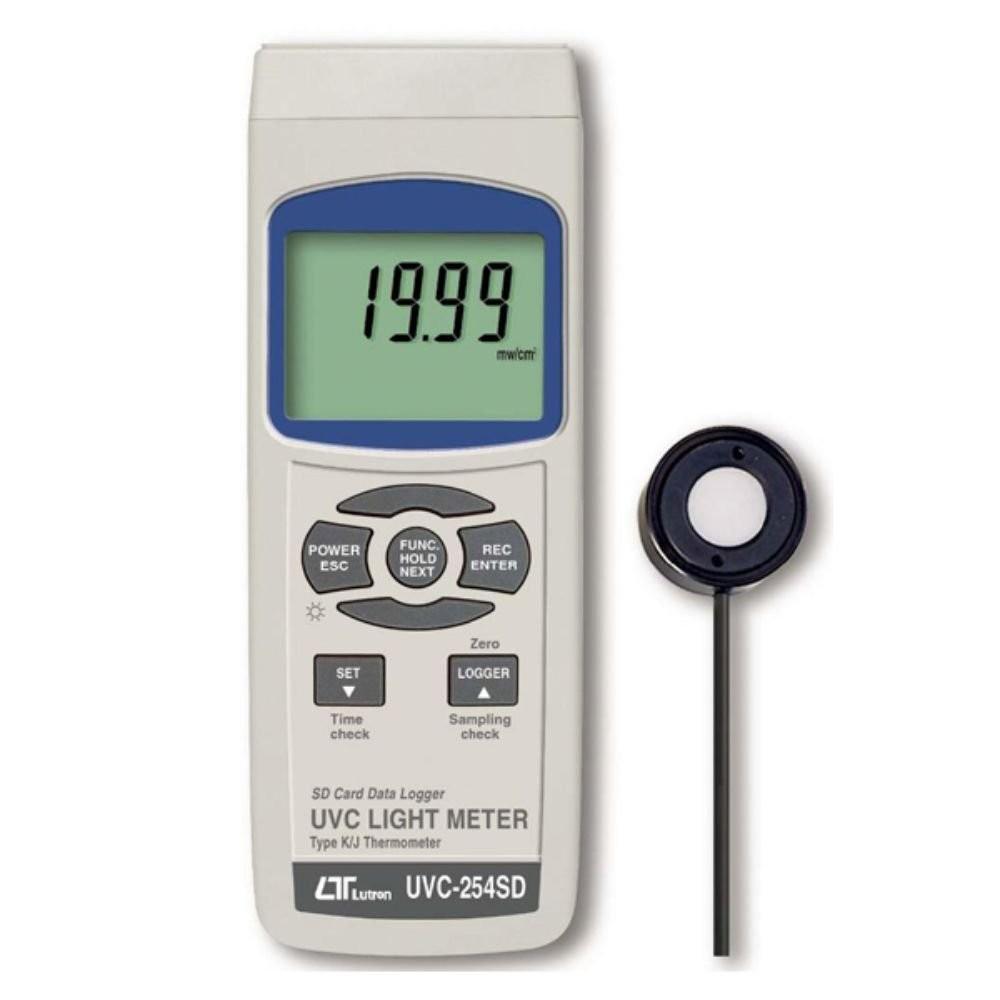

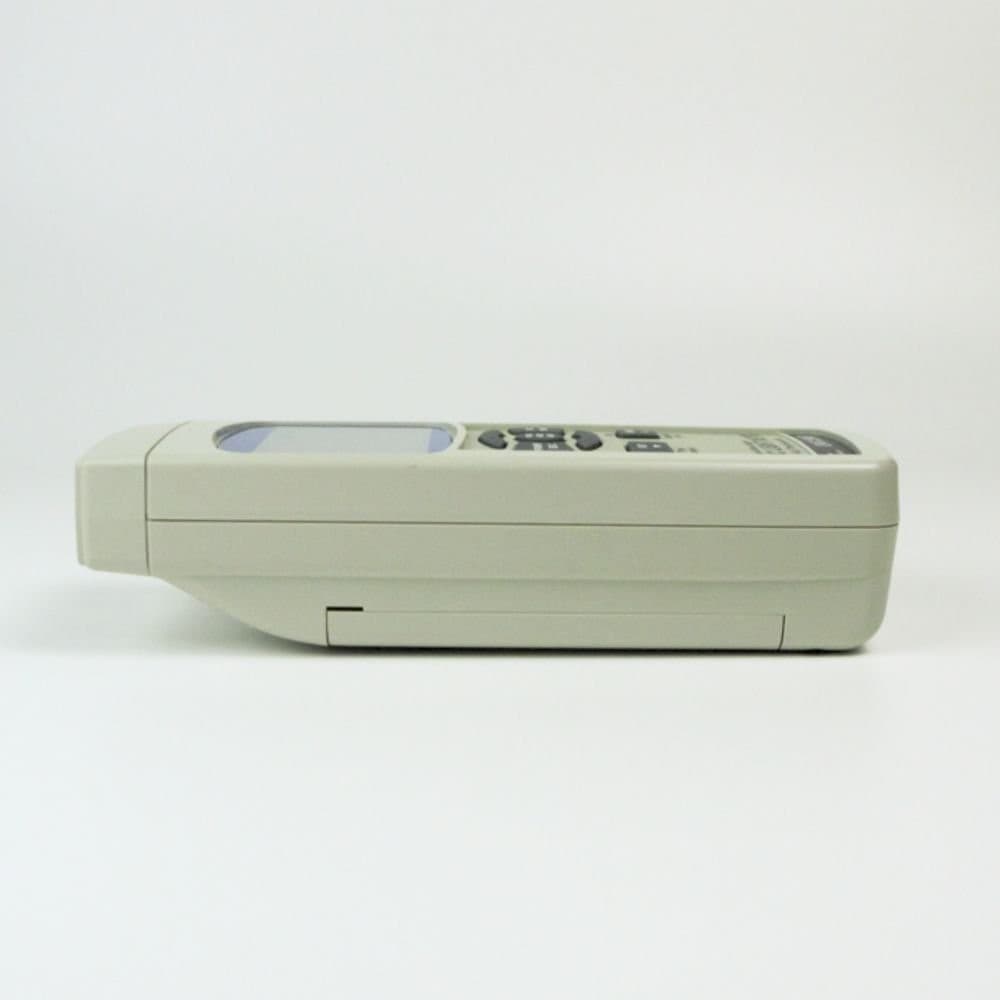

Lutron UVC-254SD เครื่องวัดแสงยูวีซี

รหัสสินค้า

UVC-254SD

฿21,800.00(ไม่รวมภาษี)

จำนวน

สินค้าในคลัง3

ภาพรวม

เครื่องวัดแสง ยูวีซี LIGHT METER รุ่น UVC-254SD วัดค่ารังสี Ultra-Violet Short wave 254 nm บันทึกข้อมูลผ่านระบบ SD Card 32GB ใช้งานง่าย ไม่ยุ่งยาก ด้วยนวัตกรรมที่ทันสมัย ทำให้ระบบประมวลผลรวดเร็ว และมีประสิทธิภาพ

เพิ่มคำถาม

UVC-254SD | ฟังก์ชั่นการวัด

วัดแสงยูวีซี (UVC)

UVC-254SD | จุดเด่น

UVC-254SD เครื่องวัดแสงยูวีซี แสดงผลผ่านหน้าจอ พร้อมทั้งข้อมูลบันทึก วัน-เวลา ที่บันทึกข้อมูลตามจริงผ่านทาง SD Card ไม่ต้องลงโปรแกรม มีความสเถียร และแม่นยำสูง น้ำหนักเบา ใช้งานง่าย ขนาดกะทัดรัด สะดวกในการพกพา ประหยัดเวลา ทนทานทุกการใช้งาน พร้อมกระเป๋ากันกระแทกอย่างดี

  • ✔ เครื่องวัดแสงยูวีซี (UVC) แบบมืออาชีพ
  • ✔ ช่วงการวัดแสงยูวีซี (UVC) แบบ Short Wave ที่ 254nm
  • ✔ เซนเซอร์ได้มาตรฐานตามข้อกำหนดมาตรฐานของ Cosine correction factor
  • ✔ เซนเซอร์แบบพิเศษด้วยวัสดุ Metallic housing case
  • ✔ เซนเซอร์แยกจากตัวเครื่องรองรับการใช้งงานที่หลากหลายในแต่ละพื้นที่

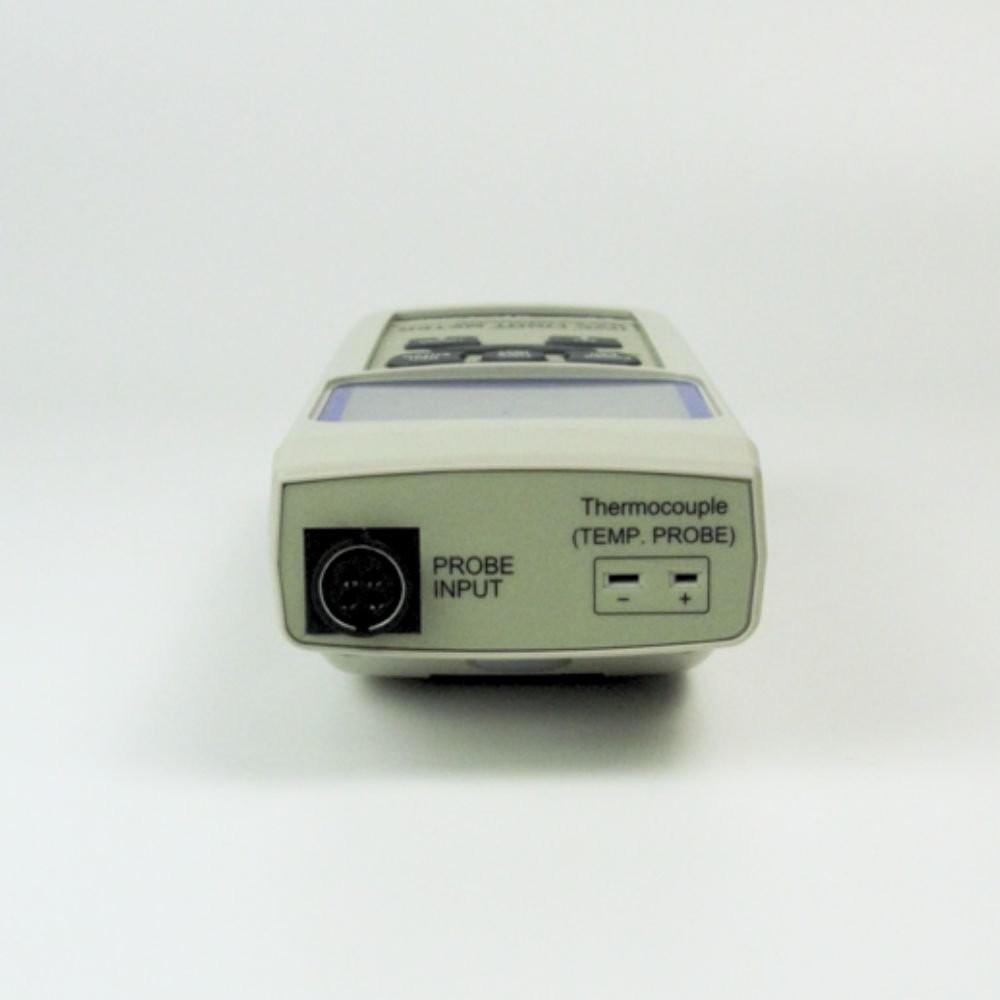

  • ✔ รองรับการวัดค่าอุณหภูมิ จากเทอร์โมคัปเปิล Type K / Type J (อุปกรณ์แยกจำหน่ายไม่รวมมาในชุด)

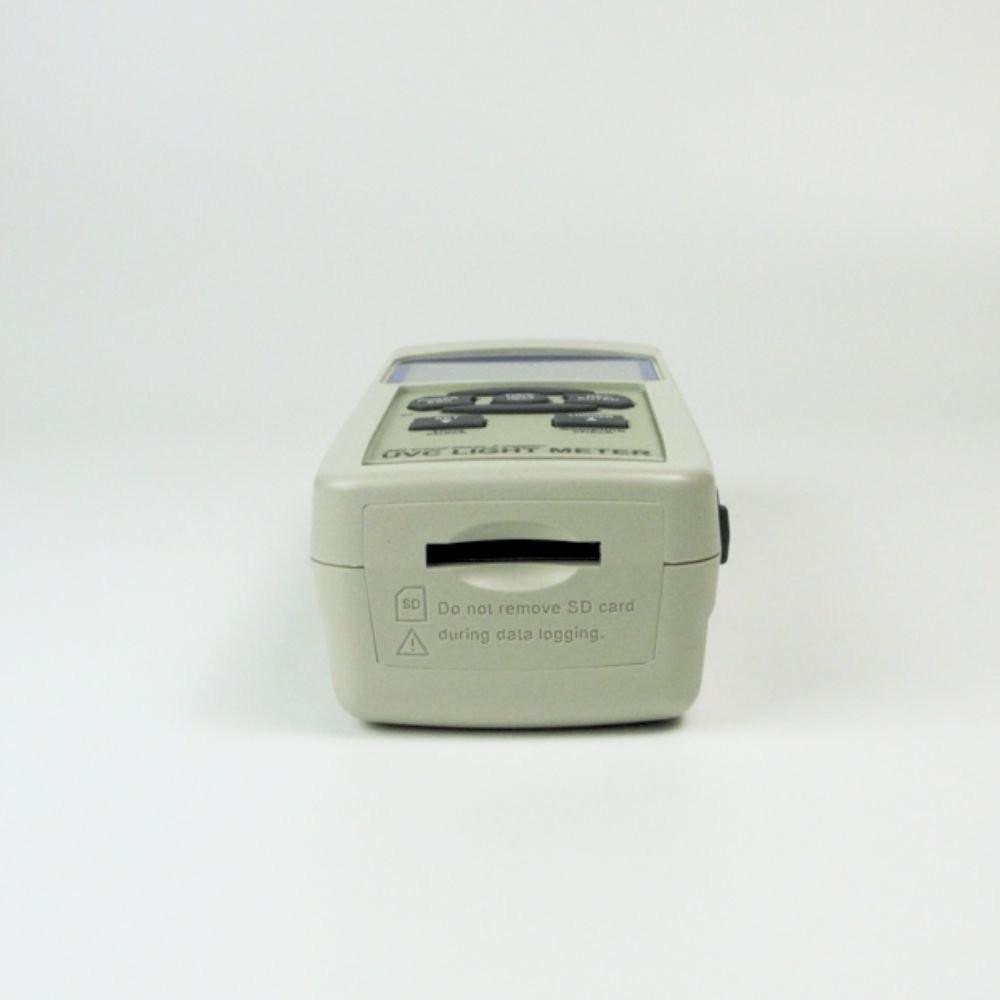

  • ✔ บันทึกค่าการวัดลงบน SD Card แบบเรียลไทม์ โดยผลการบันทึกที่ได้จะมีข้อมูล วันที่และเวลา ระบุเอาไว้ และยังสามารถตั้งค่าความถี่ในการบันทึกแบบอัตโนมัติให้กับตัวเครื่องได้ตั้งแต่ 1 วินาที ถึง 3600 วินาที
  • ✔ ตัวเครื่องมี Microcomputer circuit ให้ผลการวัดที่มีความแม่นยำสูง
  • ✔ การบันทึกค่าโดยผู้ใช้งาน (Manual datalogger) สามารถกำหนดตำแหน่งในการวัดที่แตกต่างกัน (1 ตำแหน่ง ถึง ตำแหน่ง 99 ตำแหน่ง)
  • ✔ ดูผลการวัดที่บันทึกไว้ได้โดยไม่จำเป็นต้องติดตั้ง software โดยเสียบการ์ด SD Card กับคอมพิวเตอร์ แล้วดูผลการบันทึกไว้ได้จากโปรแกรม Excel ได้โดยตรง โดยข้อมูลที่แสดงจะมี (ค่าการวัดที่บันทึก / ปี/ เดือน/ วันที่/ ชั่วโมง/ นาที/ วินาที) และผู้ใช้งานสามารถทำกราฟเพื่อวิเคราะห์ผลเพิ่มเติมได้จากโปรแกรม Excel
  • ✔ รองรับการ SD Card ขนาด 1GB ถึง 32GB (ทางเลกะแถมให้ฟรี ขนาด 32GB)
  • ✔ หน้าจอแบบ LCD มีไฟ Backlight สีเขียวใช้งานได้แม้ในที่แสงสว่างน้อย
  • ✔ ปิดเครื่องอัตโนมัติ เมื่อไม่ได้ใช้งาน
  • ✔ ตัวเครื่องมีฟังก์ชั่นค้างค่าผลการวัดที่หน้าจอ และสามารถกดเรียกดู ค่าการวัดสูงสุด / ค่าการวัดต่ำสุดได้

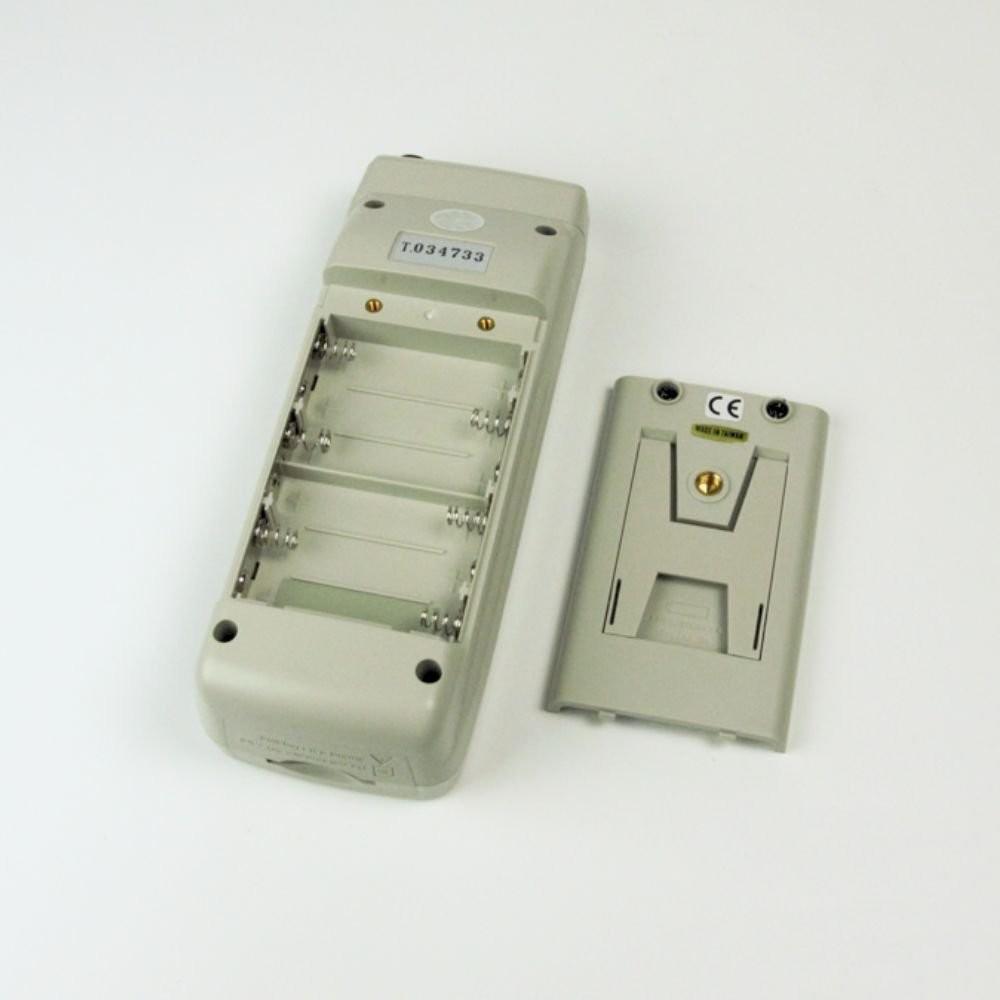

  • ✔ ตัวเครื่องใช้ไฟจาก Batteries AA จำนวน 6 ก้อน (ทางเลกะแถมให้ฟรี)
  • ✔ ตัวเครื่องรองรับการใช้งานร่วมกับ Adapter DC 9V รุ่น AP-9VA (อุปกรณ์แยกจำหน่ายไม่รวมมาในชุด)
  • ✔ รองรับเชื่อมต่อกับ COMPUTER ด้วยสาย RS232 (UPCB-02), USB PC interface (USB-01) และใช้งานร่วมกับโปรแกรม Data Acquisition Software (SW-U801-WIN) (อุปกรณ์แยกจำหน่ายไม่รวมมาในชุด

UVC-254SD | ช่วงการวัด

UVC Light

Range & Resolution

Range 1 : 2 mW/cm² : 1.999 mW/cm² x 0.001 mW/cm²

Range 2 : 20 mW/cm² : 19.99 mW/cm² x 0.01 mW/cm²

Accuracy   ± (4% FS + 2 dgt.) FS: full scale



Lutron UVC-254SD เครื่องวัดแสงยูวีซี




Type K/J thermometer

Sensor Type                                           Range                                     Accuracy                                        Resolution

Type K                                                   -50.0 to 1300.0 ℃                ± (0.4% + 0.5 ℃)                            0.1 ℃

                                                             -100.0 to -50.1 ℃                 ± (0.4% + 1 ℃)                               0.1 ℃


Type J                                                     50.0 to 1200.0 ℃               ± (0.4% + 0.5 ℃)                            0.1 ℃

                                                             -100.0 to -50.1 ℃                ± (0.4% + 1                                      0.1 ℃

UVC-254SD | Power Supply

Alkaline or heavy duty DC 1.5V battery (UM3, AA) x

6DC 9V adapter input (AC/DC power adapter is optional)

UVC-254SD | ขนาดสินค้า

Main unit: 351g
Probe: 103g

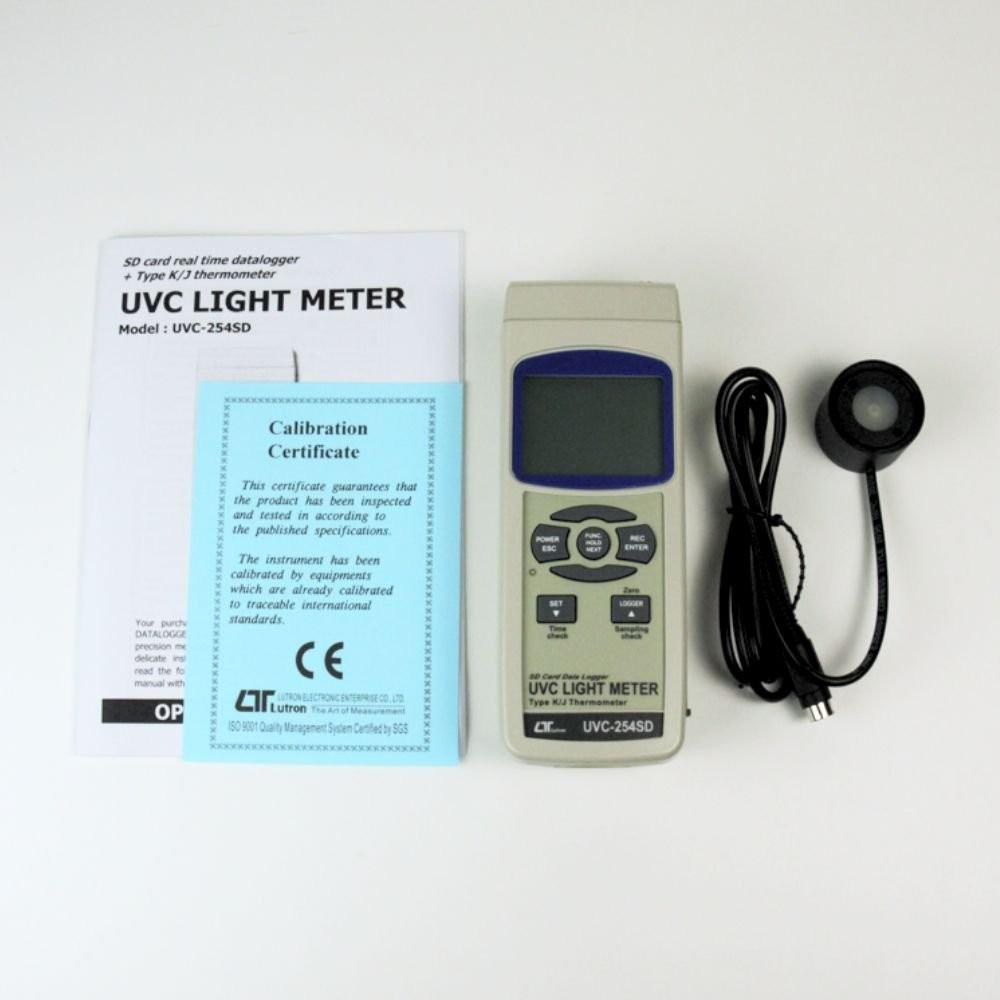

UVC-254SD | อุปกรณ์ที่มาในชุด

  • Main unit x 1

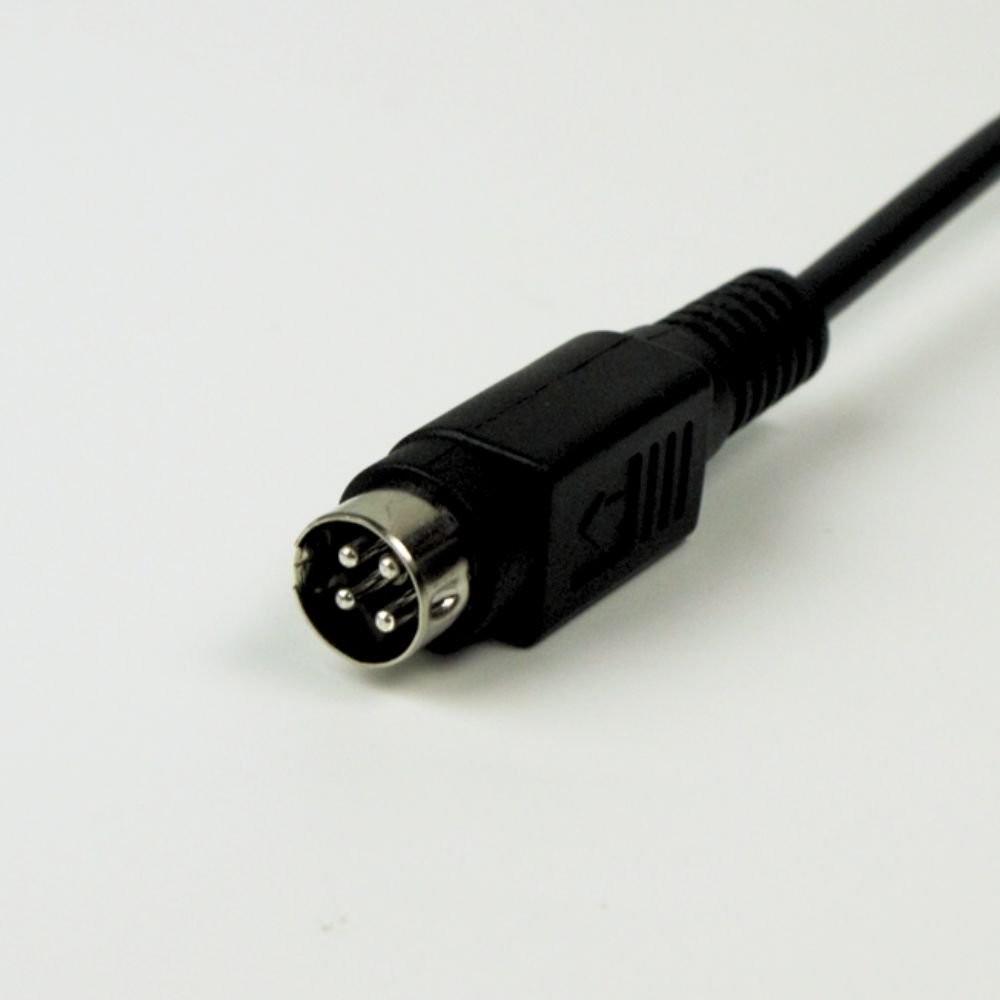

  • UVC light sensor x 1
  • Instruction manual x 1
  • Calibration Certificate (from manufacturer) x 1
  • Hard carrying case x 1
  • SD Card 32GB x 1 (ทางเลกะแถมให้ฟรี)
  • Battery AA x 6 (ทางเลกะแถมให้ฟรี)

UVC-254SD | อุปกรณ์เสริม

  • Thermocouple Probe (Thermocouple))
  • Adapter AC to DC 9V (AP-9VA)
  • USB cable (USB-01))
  • RS232 cable (UPCB-02)
  • Data Acquisition software (SW-U801-WIN)

UVC-254SD | ข้อมูลจำเพาะ

CircuitCustom one-chip of microprocessor LSI circuit

Display

LCD size: 52 x 38mm
LCD with green backlight (ON/OFF)

Measurement

UVC Light
Type K/J thermometer

UV Sensor spectrum

200 to 280nm
* Refer to the following attached spectrum diagram

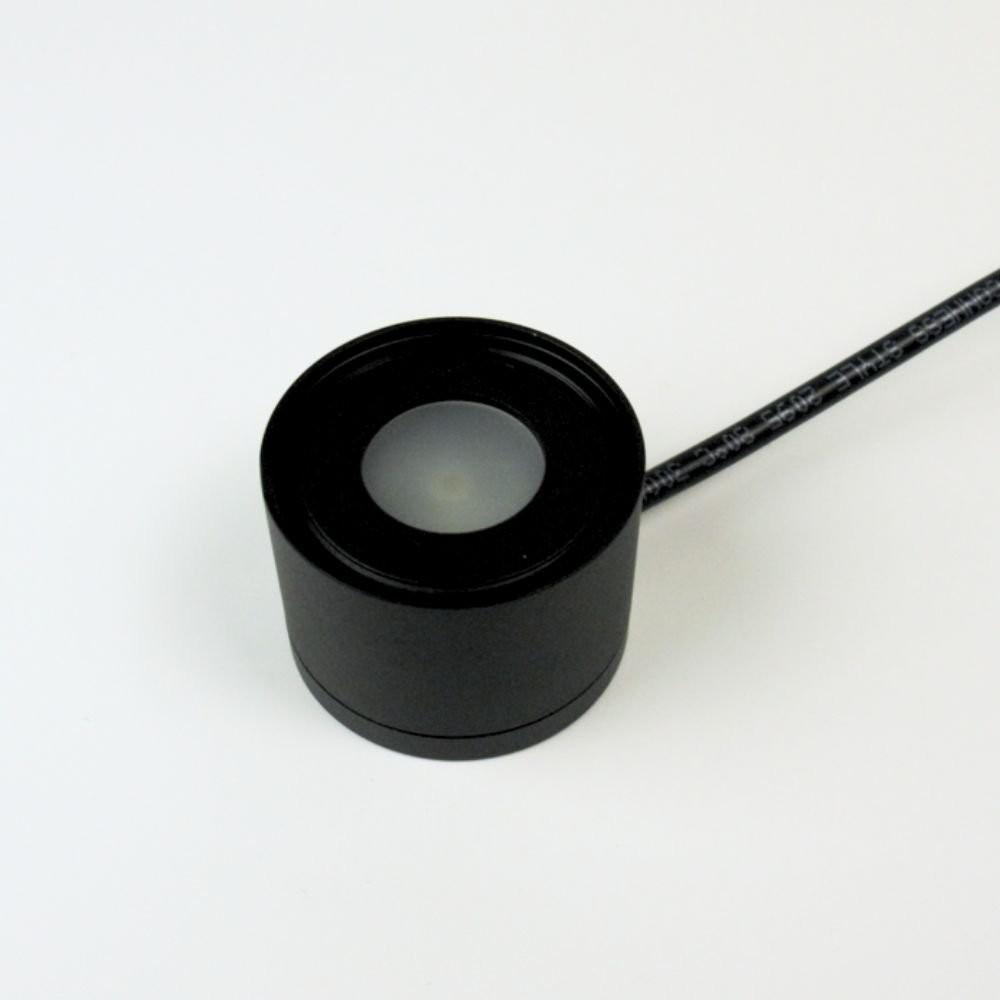

UVC Sensor structure

The exclusive UVC photosensor with the cosine correction filter

UVC light zero adjustment

By push button

Memory with Recall

Records Maximum & Minimum readings with recall

Datalogger Sampling Time Setting range

Auto: 1 to 3600 seconds
@ Sampling time can be set to 1 second, but memory data may lossManual: Push the data logger button, once will save data one time
@ Set the sampling time to 0 second
@ Manual mode can also select the 1 to 99 position (Location) no.

Memory Card

1 to 32GB

Advanced setting

  • Set clock time (Year/ Month/ Date, Hour/ Minute/ Second)
  • The decimal point of the SD card setting
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Set thermometer type to type K or type J
  • Set temperature unit to °C or °F
  • Set sampling time
  • SD memory card Format

Temperature Compensation

Automatic temp compensation for the type K/J thermometer

Data Hold

Freeze the display reading

Sampling Time of Display

Approx. 1 second

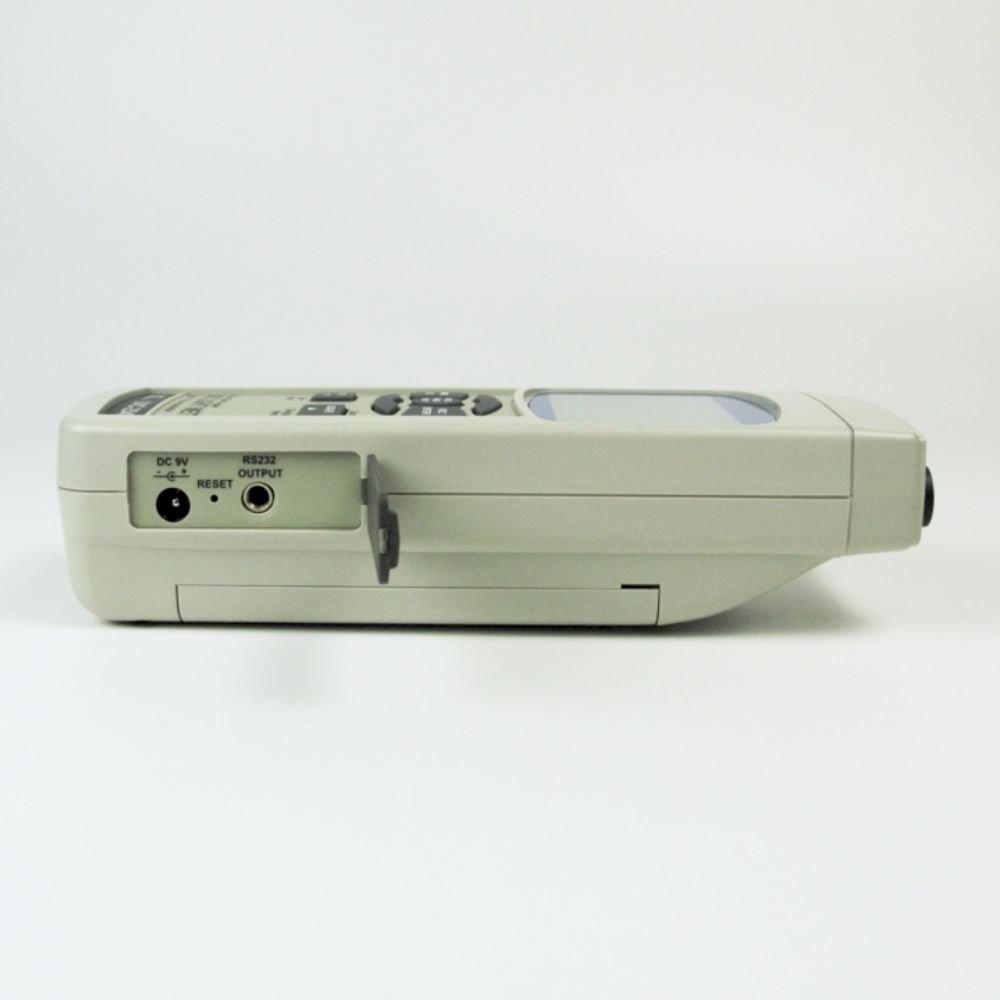

Data Output

RS232/USB PC computer interface
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug
* Connect the optional USB cable USB-01 will get the USB plug

Operation Temperature / Humidity

0 to 50°C / Less than 85% RH
