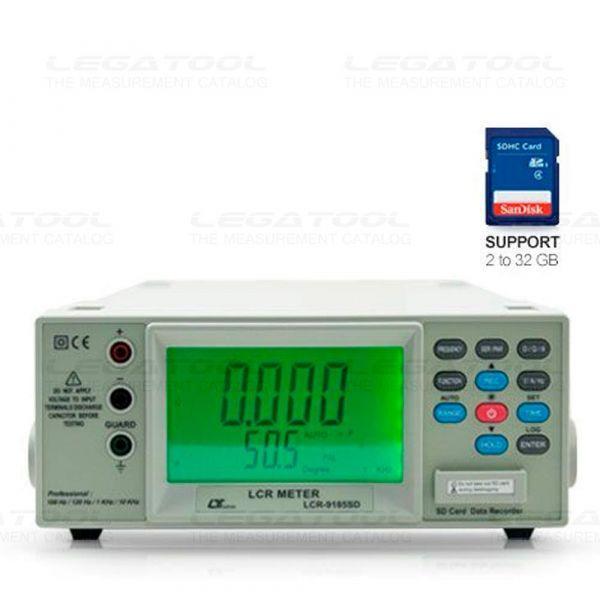

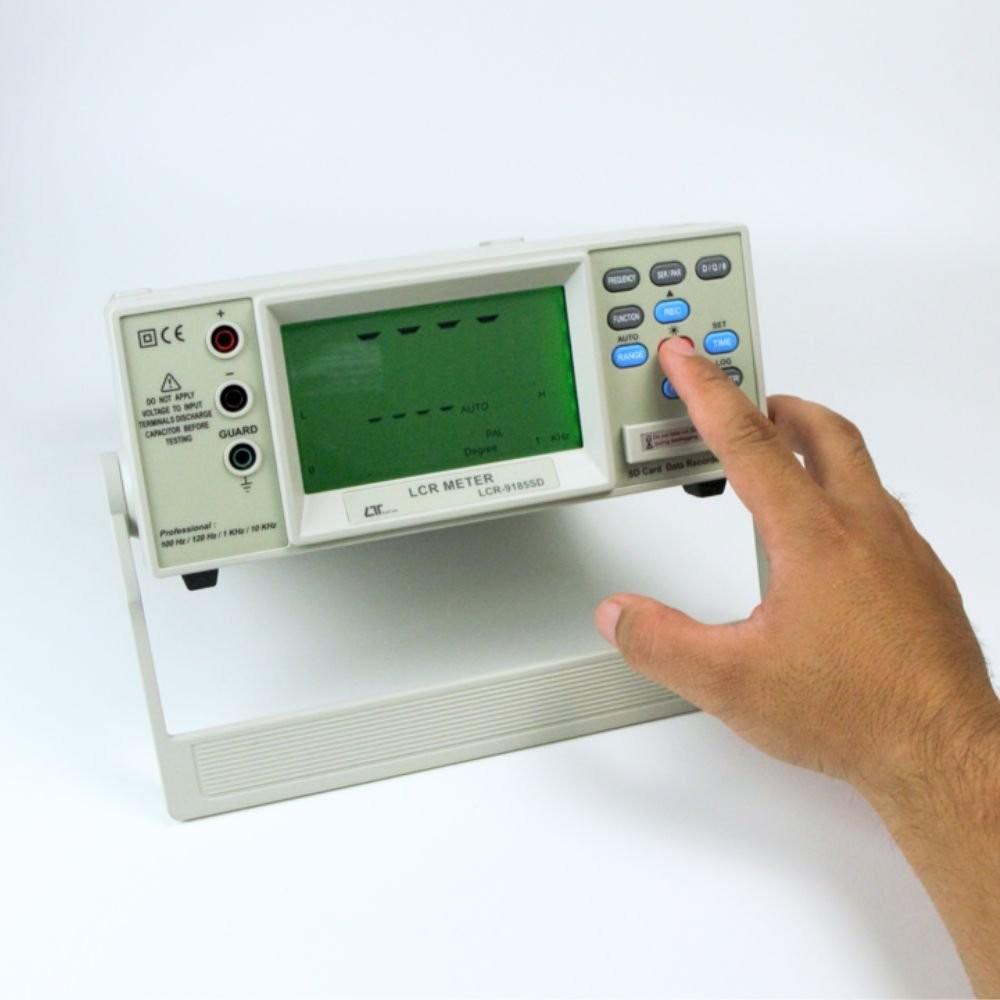

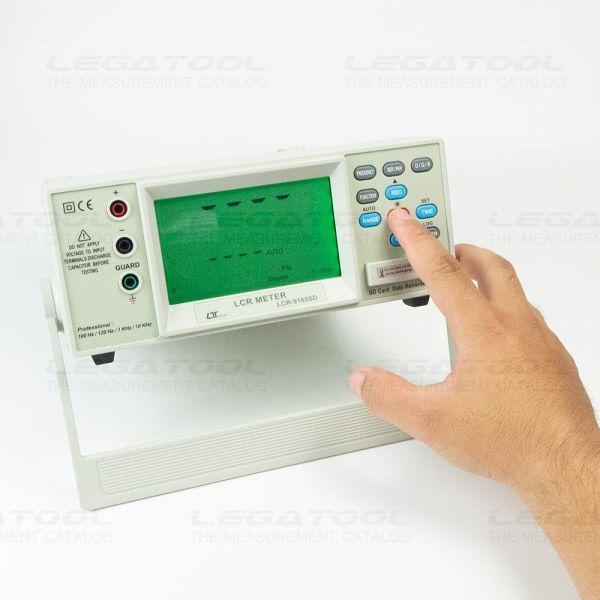

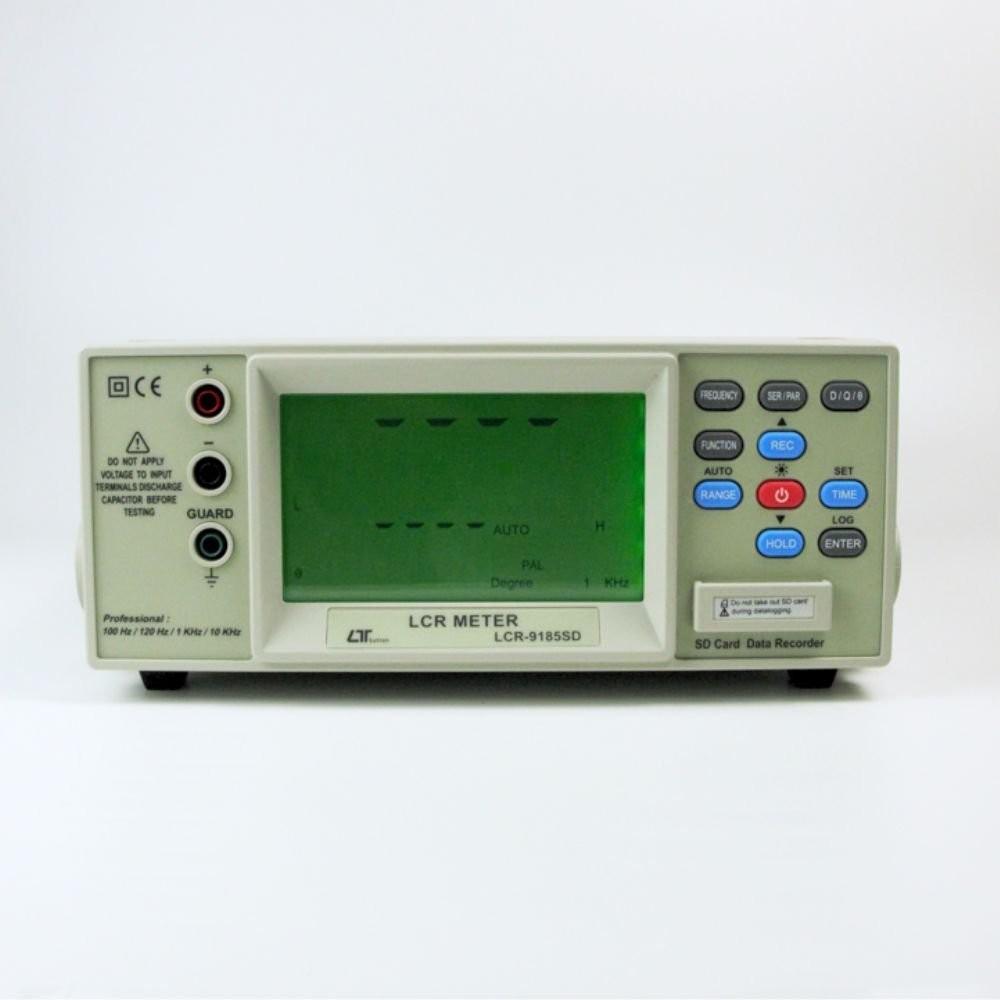

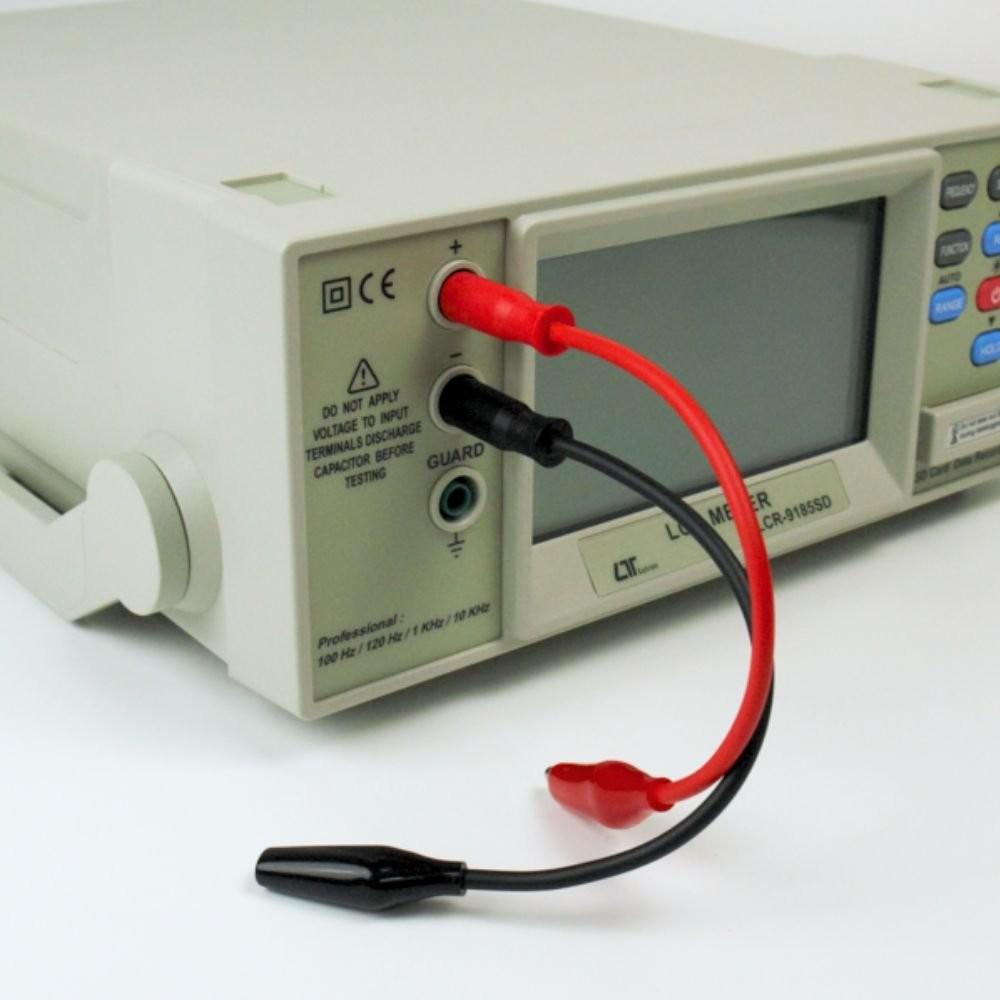

Lutron LCR-9185SD เครื่องวัดแอลซีอาร์มิเตอร์แบบตั้งโต๊ะ | SD Card

เครื่องวัดแอลซีอาร์มิเตอร์แบบตั้งโต๊ะ

• L - Inductance
• C - Capacitance
• R - Resistance

จุดเด่น

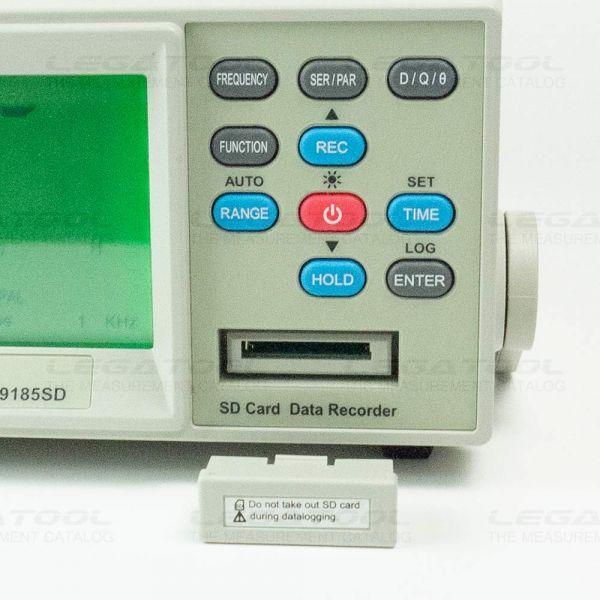

• SD memory card Datalogger (2 to 32 GB) : บันทึกข้อมูลลงบน SD Card (รองรับ SD Card 2 ถึง 32 GB)
• Built-in Clock and Calendar : ฟังก์ชั่นเวลาและวันที่ภายในเครื่อง
• Sampling Time Setting range (Auto/ Manual) : ตั้งค่าความถี่ในการบันทึกข้อมูลได้ทั้งแบบ (Auto/ Manual)
• LCD with green light backlight : หน้าจอ LCD มีไฟ Backlight สีเขียว
• Support buzzer sound driver with driving pattern and frequency selectable.
• 6 ratio resistor range used for LCR mode.
• Test AC signal level : 0.5 V rms typically
• Support Z / DCR measurement for LCR mode.
• High performance analog front end for impedance(Z) measurement

ช่วงการวัด

• L - Inductance 600 uH ถึง 200 H
• C - Capacitance 600 pF ถึง 10 mF
• R - Resistance. 60 Ω ถึง 20 MΩ

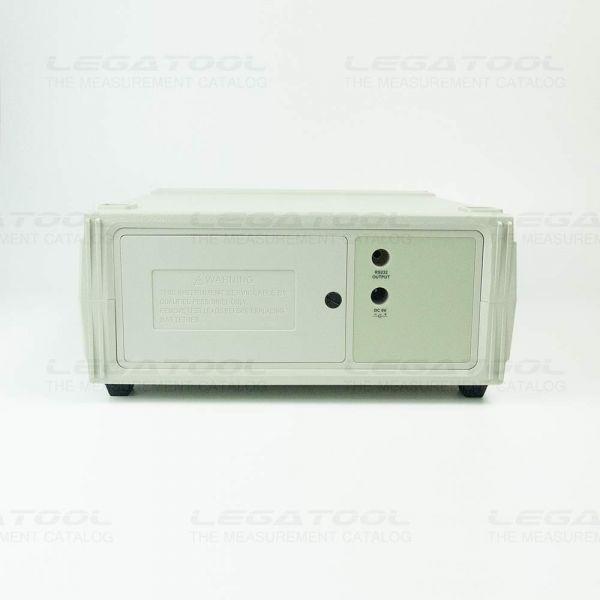

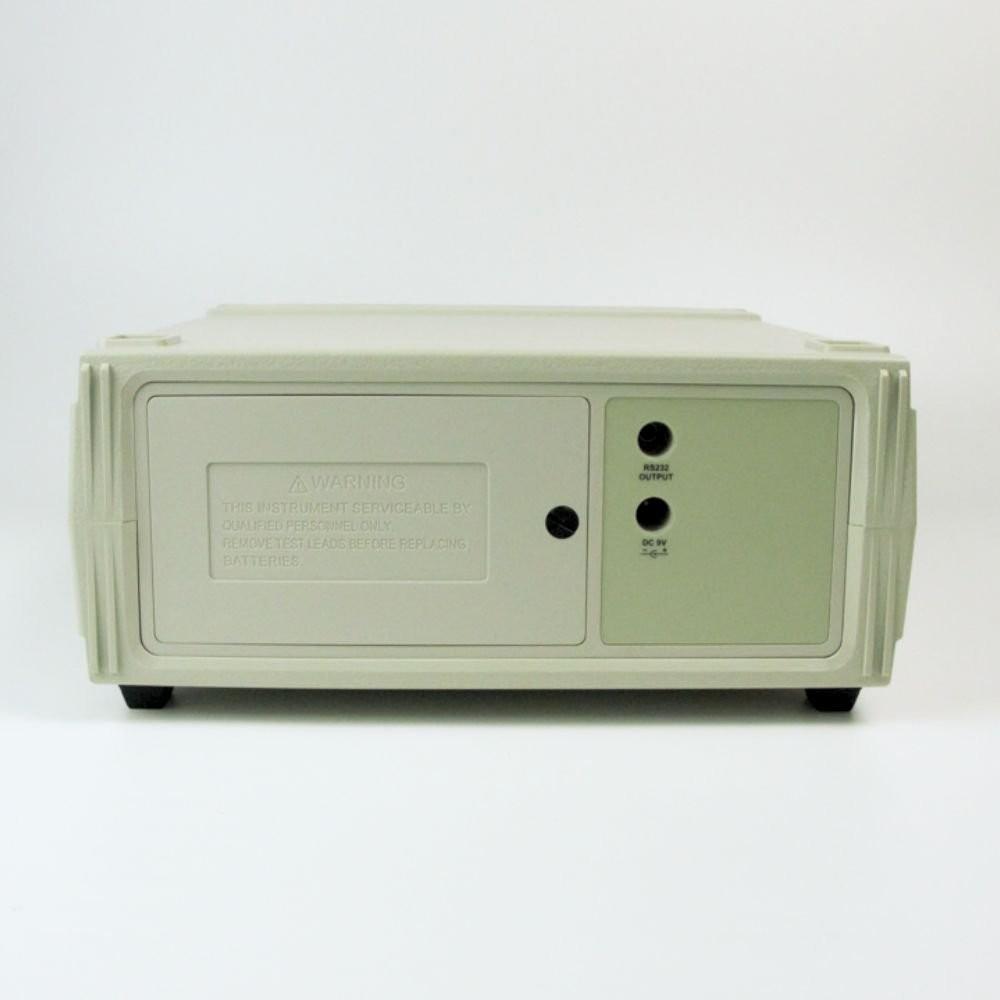

Power Supply

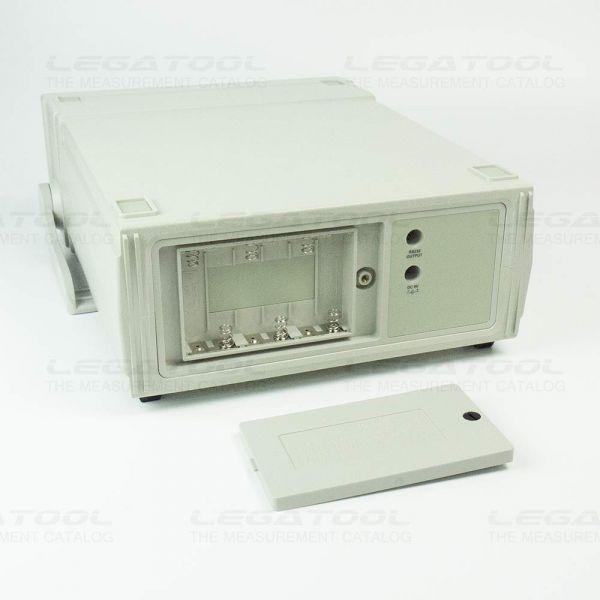

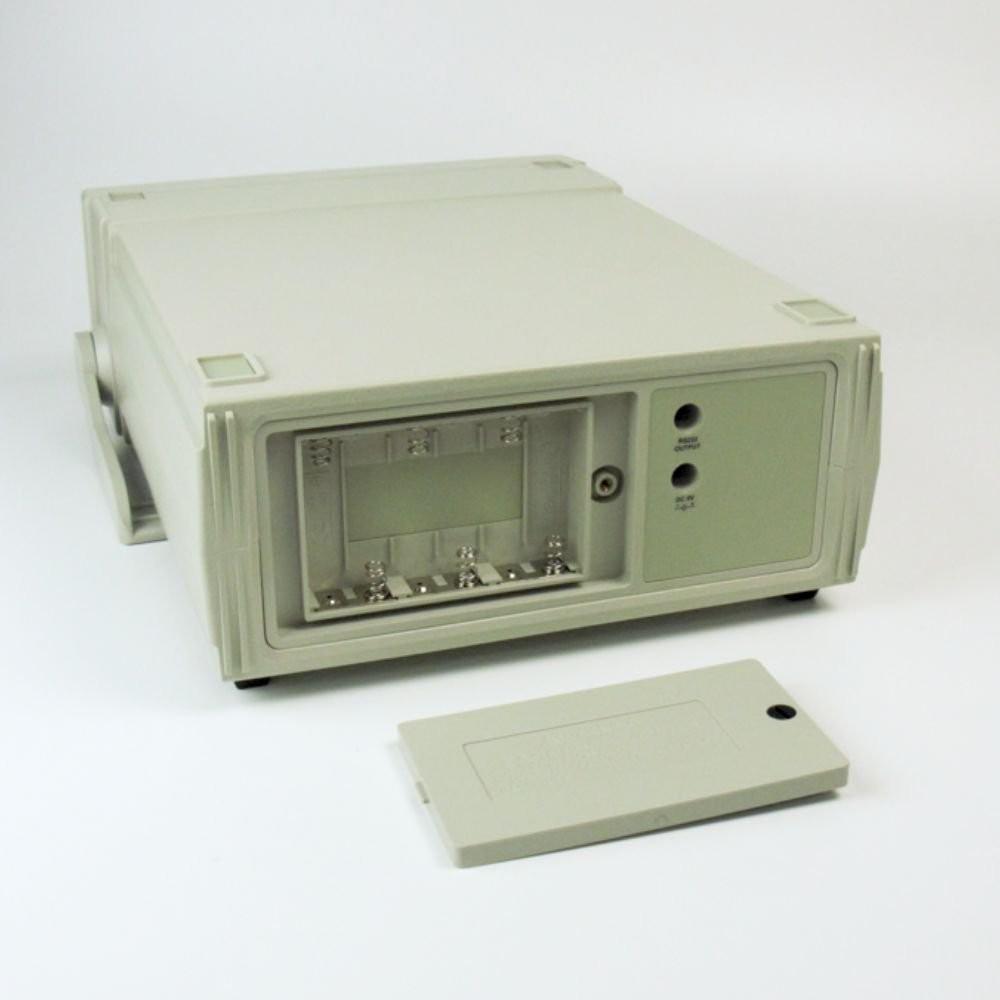

• Battery 1.5 V (AA) x 6
• DC 9V adapter (optional)

ขนาดเครื่อง

LCD size：97 mm x 56 mm large LCD display

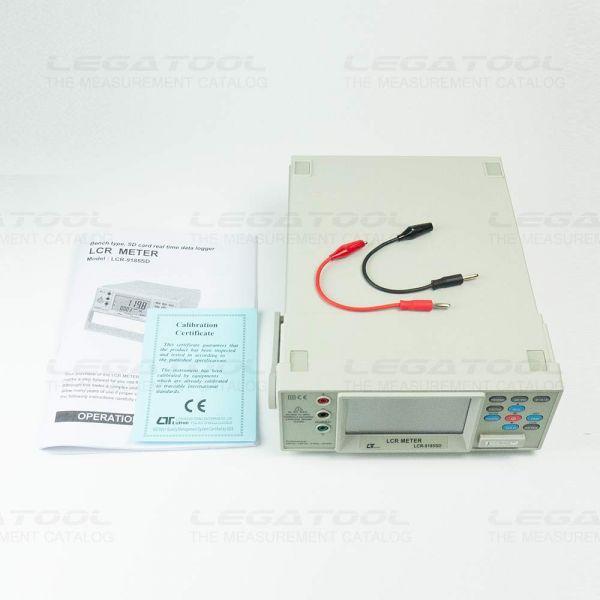

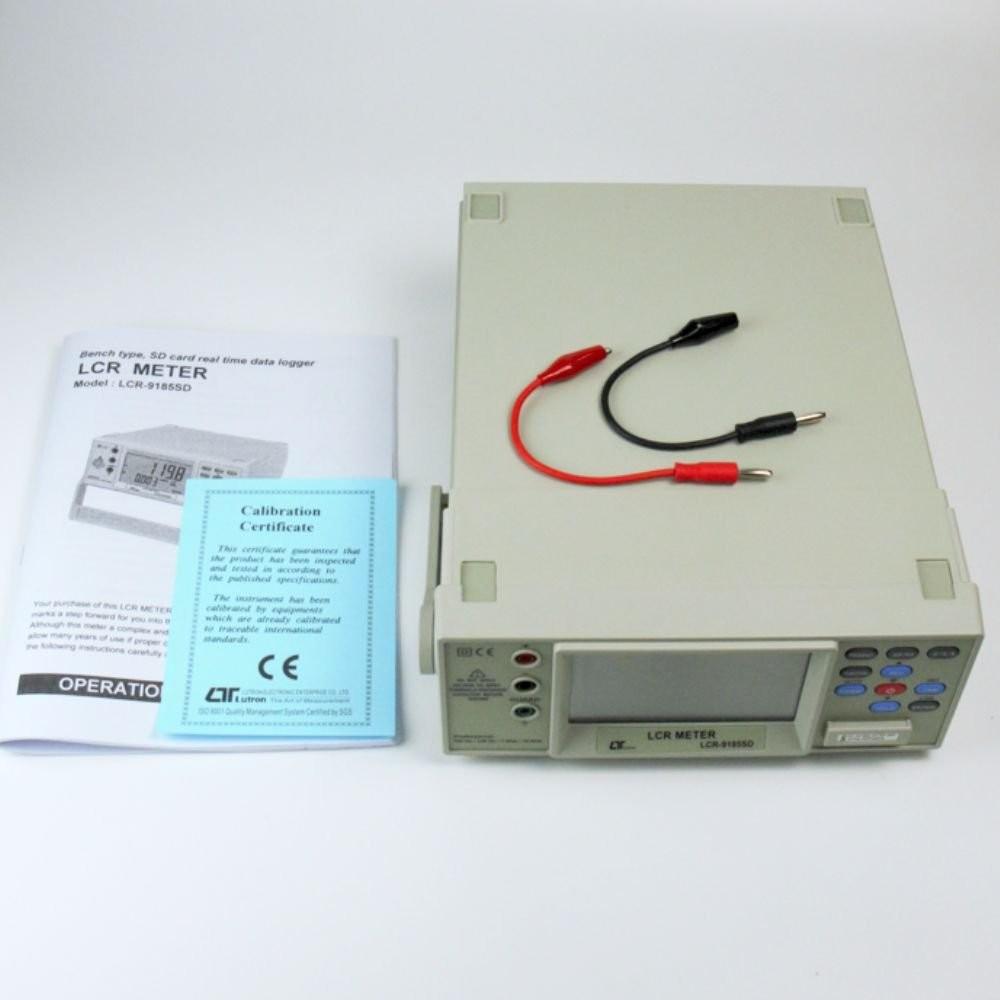

อุปกรณ์ที่มาในชุด

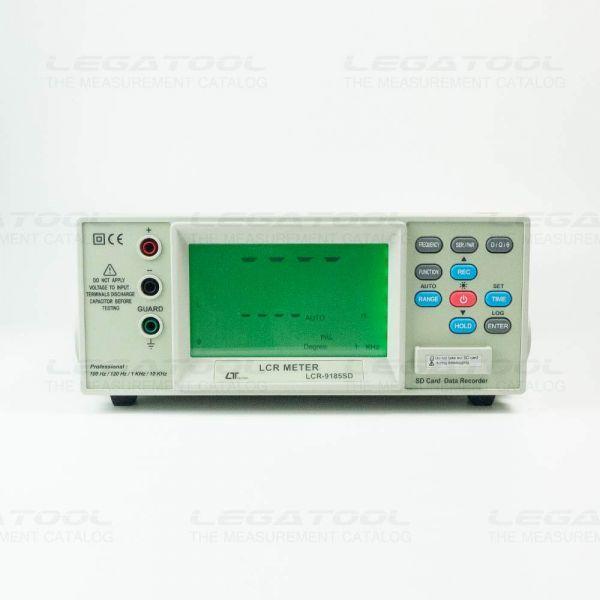

• LCR-9185SD

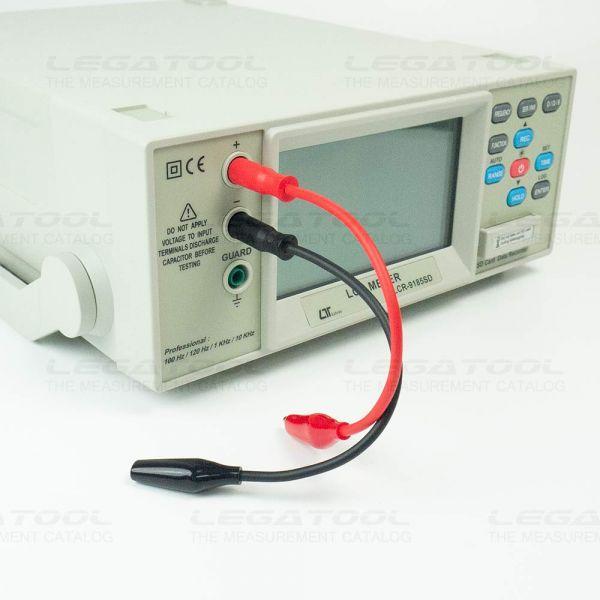

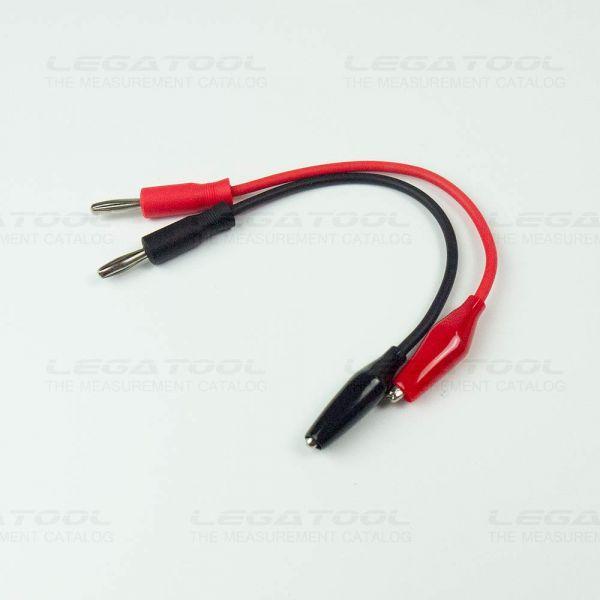

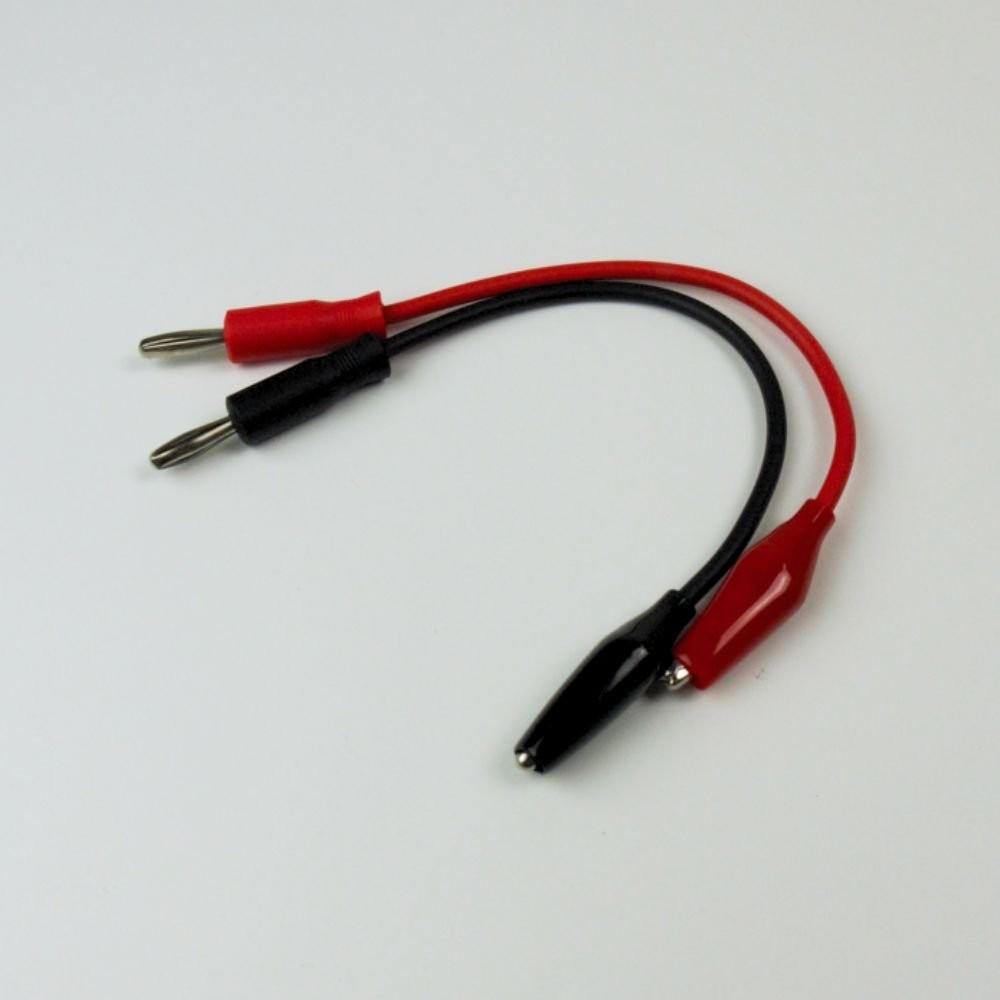

• Alligator clips
• Operation manual
• SD Card 16GB

อุปกรณ์เสริม (แยกจำหน่าย)

• SMD test clip
• SMDC-21

ข้อมูลจำเพาะ

1. Resistance (DCR)
2. 60 Ω , Accuracy ± ( 1.5% + 5d )
3. 600 Ω , Accuracy ± ( 1.0% + 5d )
4. 6000 Ω , Accuracy ± ( 1.0% + 5d )
5. 60 KΩ , Accuracy ± ( 1.0% + 5d )
6. 600 KΩ , Accuracy ± ( 1.0% + 5d )
7. 6000 kΩ , Accuracy ± ( 1.0% + 5d )
8. 20 MΩ , Accuracy ± ± ( 1.5% + 5d )
9.

10. Resistance (Z) (SER/PAL) 0.5V(rms)
11. 60 Ω , Accuracy 100 Hz / 120 Hz: ± ( 1.5% + 5d )
12.             Accuracy 1000 Hz: ± (1.5% + 5d )
13.             Accuracy 10 KHz: ± ( 1.5% + 5d )
14. 600 Ω , Accuracy 100 Hz / 120 Hz: ± ( 1.2% + 5d )
15.             Accuracy 1000 Hz: ± (1.2% + 5d )
16.             Accuracy 10 KHz: ± (1.2% + 5d )
17. 6000Ω , Accuracy 100 Hz / 120 Hz: ± ( 1.2% + 5d )
18.             Accuracy 1000 Hz: ± (1.2% + 5d )
19.             Accuracy 10 KHz: ± (1.2% + 5d )
20. 60 KΩ , Accuracy 100 Hz / 120 Hz:  ± ( 1.2% + 5d )
21.             Accuracy 1000 Hz: ± (1.2% + 5d )
22.             Accuracy 10 KHz: ± (1.2% + 5d )
23. 600 KΩ , Accuracy 100 Hz / 120 Hz:  ± ( 1.2% + 5d )
24.             Accuracy 1000 Hz: ± (1.2% + 5d )
25.             Accuracy 10 KHz: ± (1.2% + 5d )
26. 6000 kΩ , Accuracy 100 Hz / 120 Hz: ± ( 1.2% + 5d )
27.             Accuracy 1000 Hz: ± (1.2% + 5d )
28.             Accuracy 10 KHz: ± (1.2% + 5d )
29. 20 MΩ , Accuracy 100 Hz / 120 Hz: ± ( 2.0% + 5d )
30.             Accuracy 1000 Hz: ± ( 2.0% + 5d )
31.             Accuracy 10 KHz: ± ( 3.0% + 5d )
32.

33. Capacitance (SER/PAL) : D ≤ 0.1, 0.5V(rms)
34. 600 pF  ,Accuracy 100 Hz: ± (3.5% + 5d)
35.                 Accuracy  120 Hz: ± (3.5% + 5d)
36.                 Accuracy 1000 Hz: ± (2.5% + 5d)
37.                 Accuracy 10 KHz: ± (2.0% After calibration)
38. 6000 pF ,Accuracy 100 Hz: ± (2.5% + 5d)
39.                 Accuracy  120 Hz: ± (2.5% + 5d)
40.                 Accuracy 1000 Hz: ± (2.0% + 5d)
41.                 Accuracy 10 KHz: ± (1.5% After calibration)
42. 60 nF ,Accuracy 100 Hz: ± (2.0% + 5d)
43.                 Accuracy  120 Hz: ± (2.0% + 5d)
44.                 Accuracy 1000 Hz: ± (2.0% + 5d)
45.                 Accuracy 10 KHz: ± (1.5% After calibration)
46. 600 nF ,Accuracy 100 Hz: ± (2.0% + 5d)
47.                 Accuracy  120 Hz: ± (2.0% + 5d)
48.                 Accuracy 1000 Hz: ± (1.5% + 5d)
49.                 Accuracy 10 KHz: ± (1.5% + 5d)
50. 6000 nF ,Accuracy 100 Hz: ± (1.5% + 5d)
51.                 Accuracy  120 Hz: ± (1.5% + 5d)
52.                 Accuracy 1000 Hz: ± (1.5% + 5d)
53.                 Accuracy 10 KHz: ± (1.5% + 5d)
54. 60 uF ,Accuracy 100 Hz: ± (1.5% + 5d)
55.                 Accuracy  120 Hz: ± (1.5% + 5d)
56.                 Accuracy 1000 Hz: ± (1.5% + 5d)
57.                 Accuracy 10 KHz: ± (2.5% + 5d)
58. 600 uF ,Accuracy 100 Hz: ± (1.5% + 5d)
59.                 Accuracy  120 Hz: ± (1.5% + 5d)
60.                 Accuracy 1000 Hz: ± (2.5% + 5d)
61.                 Accuracy 10 KHz: —
62. 6000 uF ,Accuracy 100 Hz: ± (2.5% + 5d)
63.                 Accuracy  120 Hz: ± (2.5% + 5d)
64.                 Accuracy 1000 Hz: —
65.                 Accuracy 10 KHz: —
66. 10 mF ,Accuracy 100 Hz: ± (3.5% + 5d)
67.                 Accuracy  120 Hz: ± (3.5% + 5d)
68.                 Accuracy 1000 Hz: —
69.                 Accuracy 10 KHz: —
70.

71. Inductance (SER/PAL) : D ≤ 0.1, 0.5V(rms)
72. 600 uH ,Accuracy 100 Hz: —
73.                 Accuracy  120 Hz: —
74.                 Accuracy 1000 Hz: ± (2.5% + 5d)
75.                 Accuracy 10 KHz: ± (2.5% After calibration)
76. 6000 uH ,Accuracy 100 Hz: —
77.                 Accuracy  120 Hz: —
78.                 Accuracy 1000 Hz: ± (2.0% + 5d)
79.                 Accuracy 10 KHz: ± (2.0% + 5d)
80. 60 mH ,Accuracy 100 Hz: ± (2.0% + 5d)
81.                 Accuracy  120 Hz: ± (2.0% + 5d)
82.                 Accuracy 1000 Hz: ± (1.5% + 5d)
83.                 Accuracy 10 KHz: ± (1.5% + 5d)
84. 600 mH ,Accuracy 100 Hz: ± (1.5% + 5d)
85.                 Accuracy  120 Hz: ± (1.5% + 5d)
86.                 Accuracy 1000 Hz: ± (1.5% + 5d)
87.                 Accuracy 10 KHz: ± (1.5% + 5d)
88. 6000 mH ,Accuracy 100 Hz: ± (1.5% + 5d)
89.                 Accuracy  120 Hz: ± (1.5% + 5d)
90.                 Accuracy 1000 Hz: ± (1.5% + 5d)
91.                 Accuracy 10 KHz: ± (1.5% + 5d)
92. 60 H ,Accuracy 100 Hz: ± (1.5% + 5d)
93.                 Accuracy  120 Hz: ± (1.5% After calibration)
94.                 Accuracy 1000 Hz: ± (2.5% + 5d)
95.                 Accuracy 10 KHz: —
96. 200 H ,Accuracy 100 Hz: ± (2.5% + 5d)
97.                 Accuracy  120 Hz: ± (2.5% After calibration)
98.                 Accuracy 1000 Hz: —
99.                 Accuracy 10 KHz: —
100.

101. LCR Scale range configruration
102. Inductance (SER/PAL) :
103. 100/120Hz                     Frequency:            100/120Hz
104.                                           Measuring range: 60.00 mH to 200.0 H
105.                                           Min. resolution:     0.01 mH
106.  1kHz                                Frequency:           1kHz
107.                                           Measuring range:  600.0 uH to 60.00 H
108.                                           Min. resolution:     0.1 uH
109.  10kHz                              : Frequency:            10kHz
110.                                           Measuring range:  600.0 uH to 6000 mH
111.                                           Min. resolution:     0.1 uH
112.

113. Capacitance                  :
114. 100/120Hz                      Frequency: 100/120Hz
115.                                           Measuring range: 600.0 pF to 10.00 mF
116.                                           Min. resolution: 1 pF
117.  1kHz                                Frequency:           1kHz
118.                                           Measuring range: 600.0 pF to 600.0 uF
119.                                           Min. resolution:    0.1 pF
120.  10kHz                              : Frequency:            10kHz
121.                                           Measuring range:  600.0 pF to 60.00 uF
122.                                           Min. resolution:     0.1 pF
123. Resistance (SER/PAL) :
124. 100/120Hz                      Frequency: 100/120Hz
125.                                           Measuring range: 60.00 Ω to 20.00 MΩ
126.                                           Min. resolution: 0.01 Ω
127.  1kHz                                Frequency:           1kHz
128.                                           Measuring range: 60.00 Ω to 20.00 MΩ
129.                                           Min. resolution:    0.01 Ω
130.  10kHz                              : Frequency:            10kHz
131.                                           Measuring range:  60.00 Ω to 20.00 MΩ
132.                                           Min. resolution:     0.01 Ω
133.

134. Display: 97 x 56mm large LCD display
135. Test frequency: 100 Hz/ 120 Hz/ 1 kHz/ 10 kHz
136. Mode: L/ C/ R Function selector
                 Frequency selector
                 D/ Q/ θ selector
                 SER/PAL selector
137. Dissipation factor: 0.000 to 9999
138. Quality factor: 0.000 to 9999
139. θ measurement: ± 90°
140. Calibration: Open/ Short calibration
141. Datalogger Sampling Time Setting Range: Auto: 2 seconds to 3600 seconds
142. Manual: Push the data logger button once will save data one time  @ Set the sampling time to 0 second
143. Data error no.: ≤ 0.1% no. of total saved data typically
144. SD card Capacity: 2 to 32 GB
145. Power consumption: Approx. 11 mA (without SD card save data)
     When the SD card saved the data will increase Approx. 25 mA
