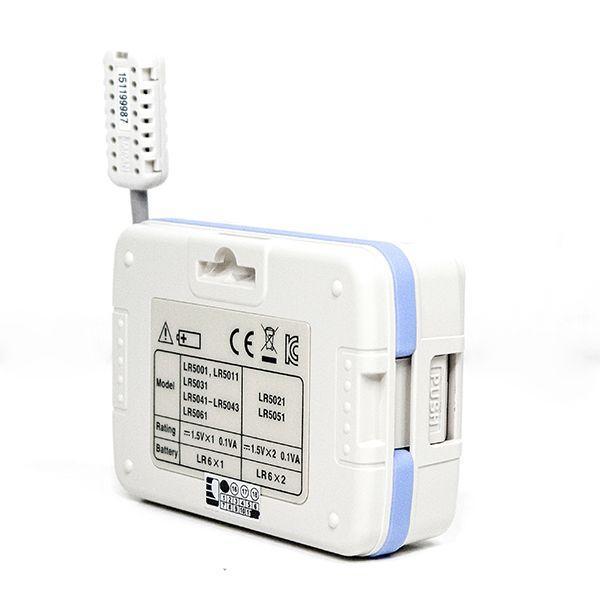

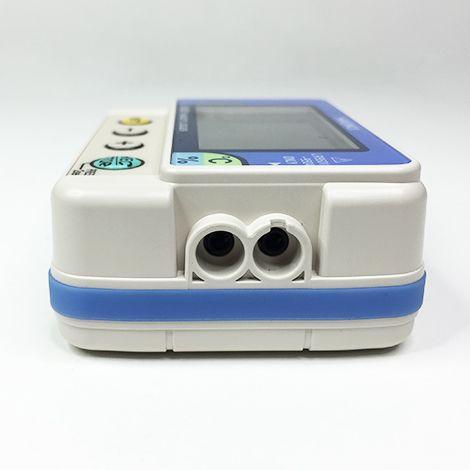

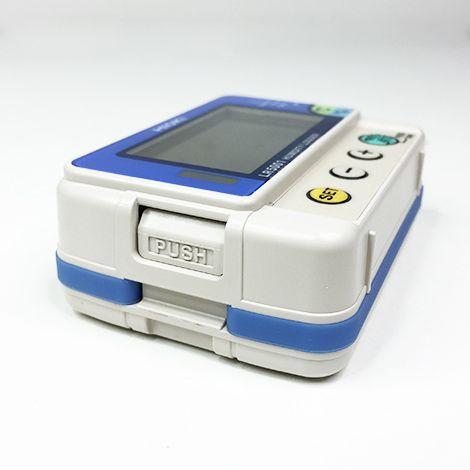

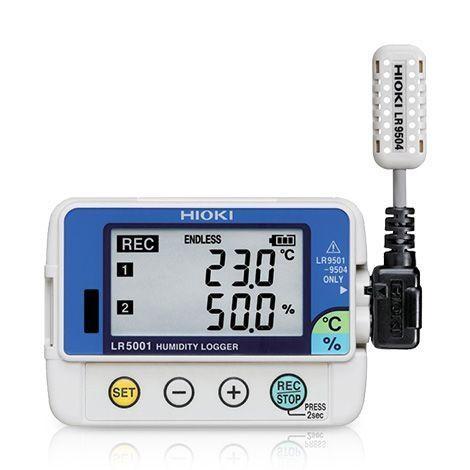

Hioki-LR5001 เครื่องบันทึกอุณหภูมิความชื้น

รหัสสินค้า

LR5001

฿11,620.00(ไม่รวมภาษี)

จำนวน

สินค้าในคลัง10

ภาพรวม

เครื่องวัดและบันทึกอุณหภูมิและความชื้น ช่วงการวัดอุณหภูมิ -40 to 85°C/ ความชื้น 0 to 100%RH ฟังก์ชั่นบันทึกข้อมูล 60,000 ค่า, Infrared communications ยี่ห้อ Hioki, Japan

เพิ่มคำถาม

LR5001 | ฟังก์ชั่นการวัด

เครื่องบันทึกอุณหภูมิความชื้น

LR5001 | จุดเด่น

หน้าจอ LCD แสดงผลอุณหภูมิและความชื้นพร้อมกัน
Sampling interval ความถี่ในการบันทึกข้อมูล 1 to 30 วินาที, 1 to 60 นาที
ฟังก์ชั่นบันทึกข้อมูล 60,000 ค่า
ตัวเครื่องมาตรฐาน IP54
Infrared optical communications with LR5091

Battery life: Approx. 3 months (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 20 days (Instantaneous recording, with 1-second interval at 20 °C)

LR5001 | ช่วงการวัด

Temperature: -40.0°C to 85.0°C

Humidity: 0 to 100% RH at sensor environment

Basic accuracy

[Temperature] : ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C)
[Humidity] : ±5 % rh (main unit + temperature / humidity sensor LR950x combination, at 20 to 30 °C / 10 to 50 % rh)
Note: Basic accuracy is typical value, refer to the detailed catalog

LR5001 | Power Supply

LR6 (AA) Alkaline battery × 1

LR5001 | ขนาดสินค้า

79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)

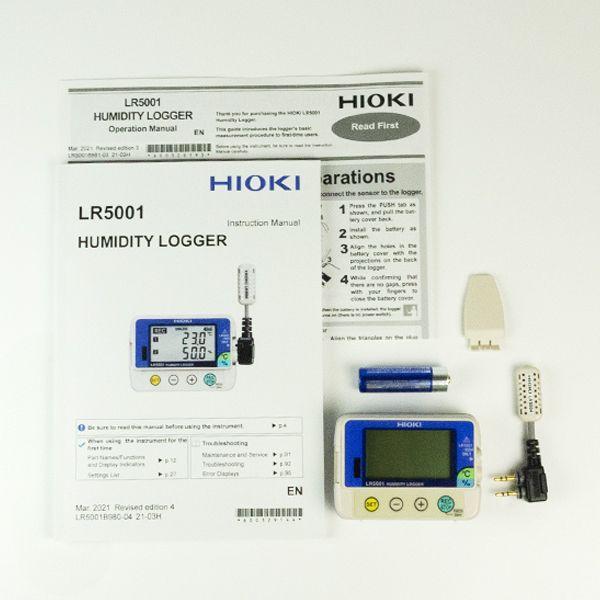

LR5001 | อุปกรณ์ที่มาในชุด

ตัวเครื่อง

Humidity Sensor LR9504

Operation guide

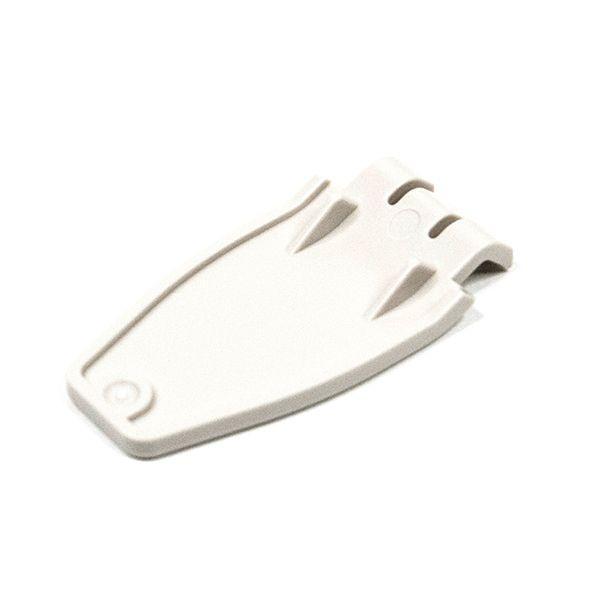

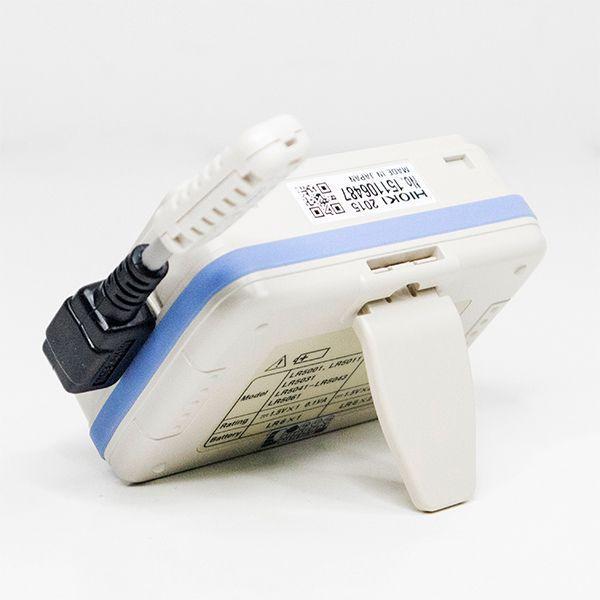

Kickstand

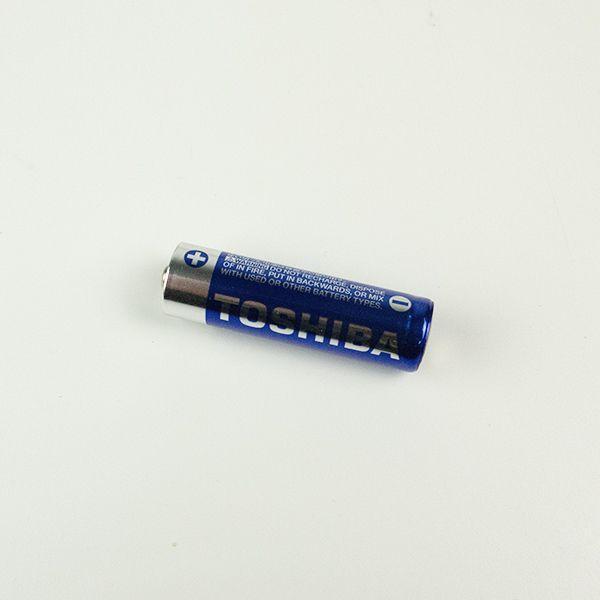

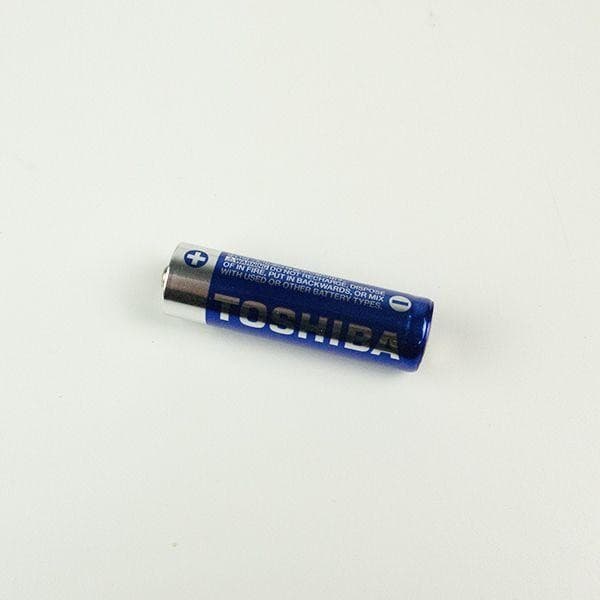

แบตเตอรี่ Alkaline AA x 1

คู่มือ

LR5001 | อุปกรณ์เสริม

COMMUNICATION ADAPTER LR5091

DATA COLLECTOR LR5092-20

WALL-MOUNTED HOLDER LR9901

MAGNETIC STRAP Z5004

HUMIDITY SENSOR LR9501

HUMIDITY SENSOR LR9502

HUMIDITY SENSOR LR9503

HUMIDITY SENSOR LR9504

LR5001 | ข้อมูลจำเพาะ

Measurement items Temperature 1 ch and Humidity 1 ch (Requires included or optional humidity sensor)

Storage capacity  Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch

Recording interval  1 to 30 sec., 1 to 60 min., 15 selections

Recording modes

Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Recording methods

One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Other functions

Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low
Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement)

Waterproof and dust-proof  IP54 (EN60529) (with sensor connected, but not including sensor tip)

Interfaces  Infrared optical communications with LR5091, LR5092-20

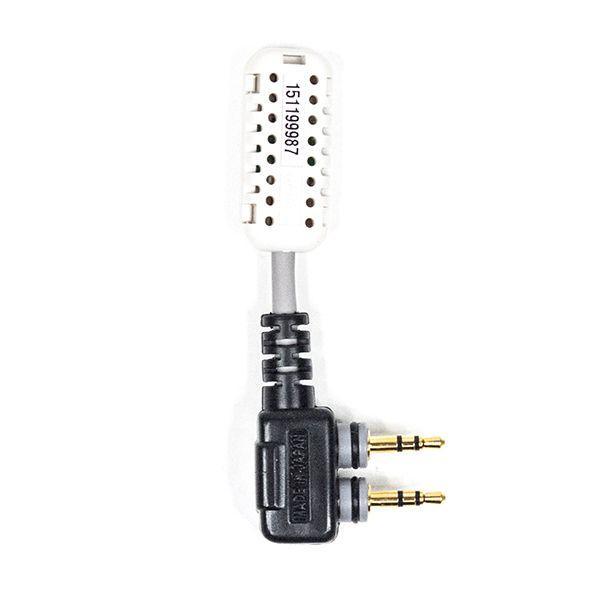

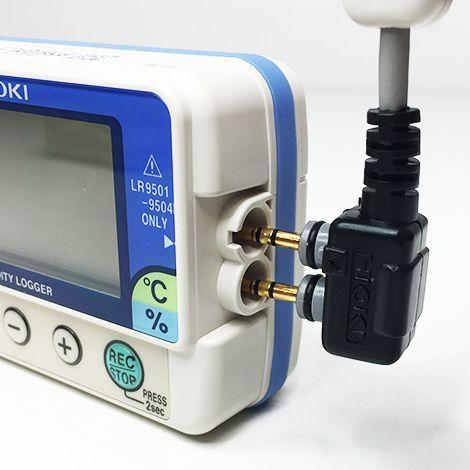

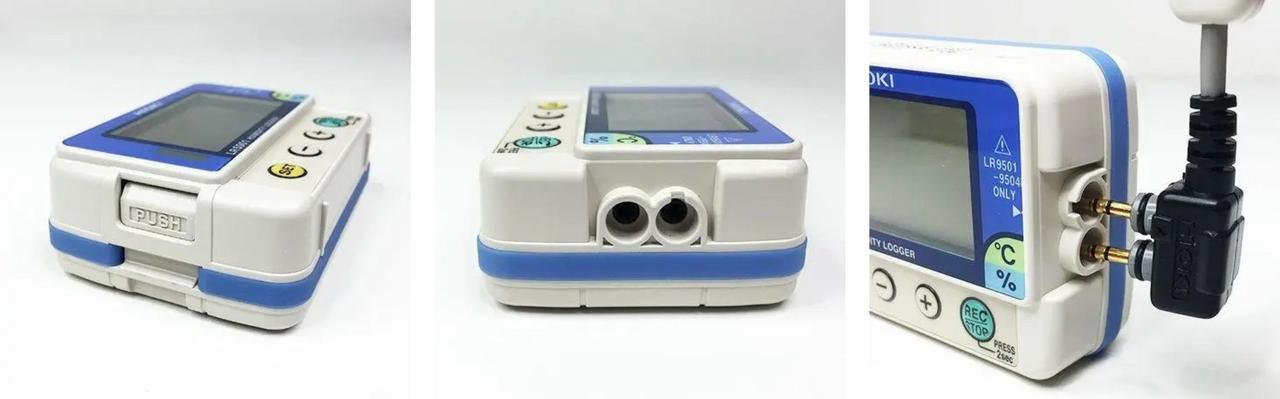

Humidity Sensor LR9504 มาพร้อมกับตัวเครื่อง

Hioki-LR5001 เครื่องบันทึกอุณหภูมิความชื้น

Hioki-LR5001 เครื่องบันทึกอุณหภูมิความชื้น

Infrared optical communications with LR5091 (แยกจำหน่าย)

Hioki-LR5001 เครื่องบันทึกอุณหภูมิความชื้น
