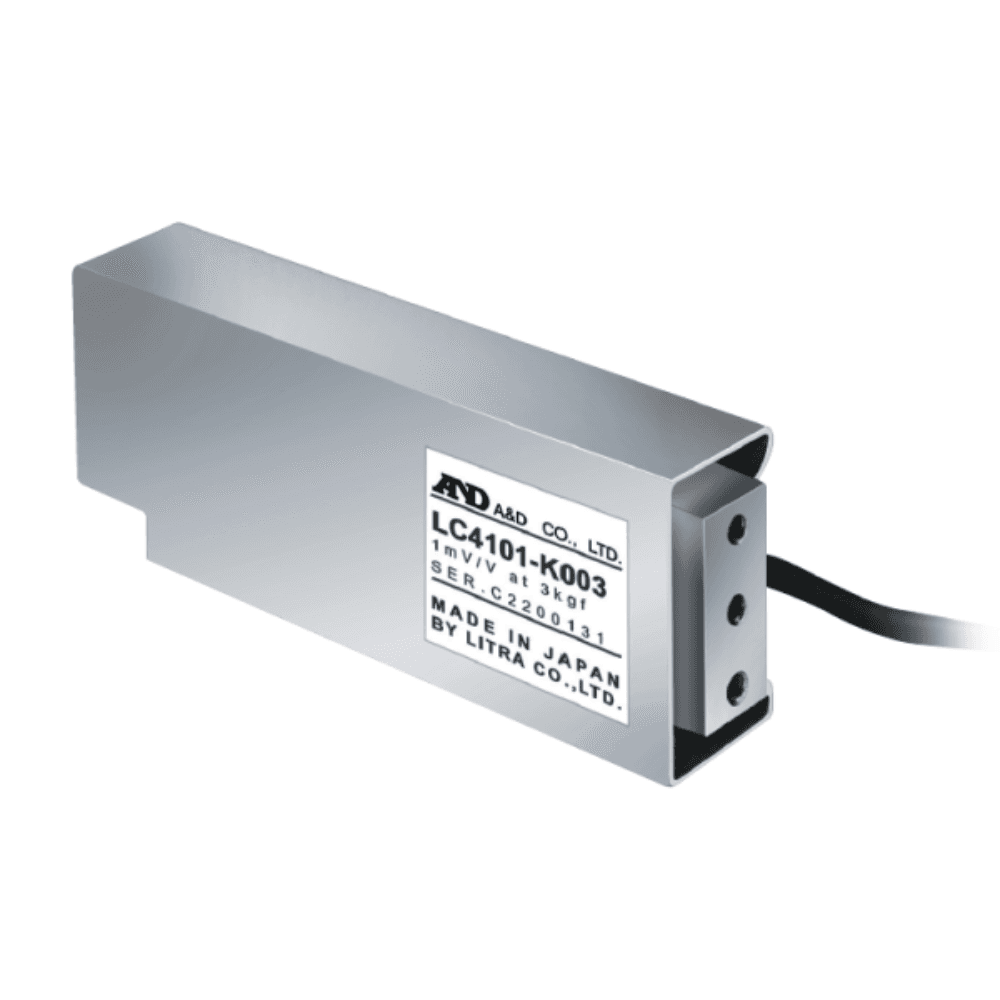

AND LC4101-K003 Single Point Load Cell

Rated Capacities

600 gf, 1.5 kgf, 3 kgf, 6 kgf, 15 kgf

Rated Output

1 mV/V (+15% / -0%)

Maximum Deadweight

80% of rated capacity

Maximum Safe Overload

300% of rated capacity

Combined Error

±0.015% of rated output

Creep

±0.05% of rated output / hour

Zero Balance

20% ± 5% of rated output

Compensated Temperature Range

-10°C to +40°C (14°F to 104°F)

Recommended Excitation Voltage

12 V

Maximum Excitation Voltage

15 V

Input Terminal Resistance

Approximately 400 Ω

Output Terminal Resistance

350 Ω ± 5 Ω

Insulation Resistance

> 5000 MΩ (at DC 50V)

Temperature Effect on Zero

0.004% of rated output / °C

Temperature Effect on Span

0.0014% of rated output / °C

Platform Size

300 × 300 mm

Cable Length

1.5 m
