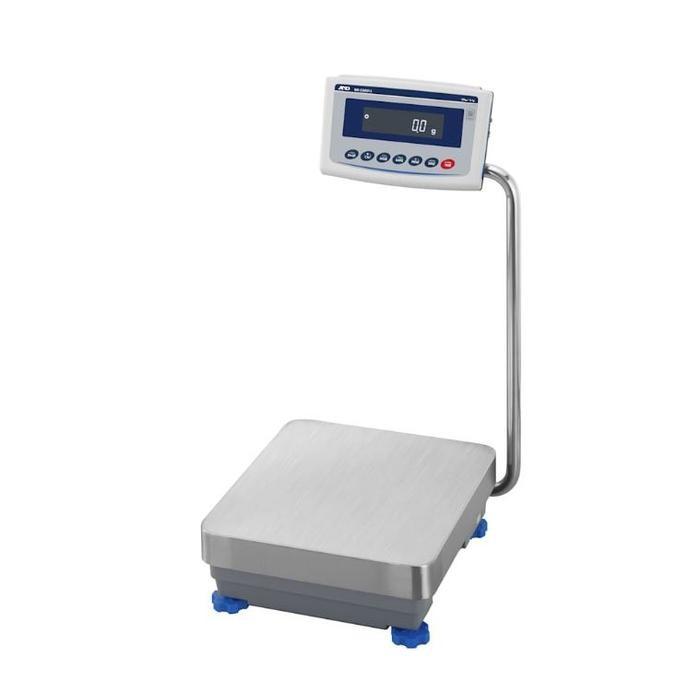

AND GX62001LS เครื่องชั่งน้ำหนักดิจิตอล | Max.62 Kg

GX62001LS ฟังก์ชั่นการวัด

ชั่งน้ำหนัก

GX62001LS ช่วงการวัด

1. Capacity : 62 kg
2. Readability : 0.1 g
3. Repeatability (standard deviation) : 0.2 g
4. Minimum weight*ii : 140 g
5. Linearity : ±0.5 g
6. Stabilization time (typical when set to FAST) : Approx. 1.5 seconds
7. Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic //  self sensitivity adjustment is OFF) : ±6 ppm/°C
8. Accuracy immediately after internal sensitivity //adjustment (for the GX-L(S) series)*iii : ±3 g

GX62001LS Power Supply

AC adapter / approx. 30 VA

GX62001LS ขนาดสินค้า

Weighing pan size : 384 × 344 mm

External dimensions

1. Swing-arm type (GX-L/GF-L) : 372 (W) × 615 (D) × 130 (H) mm*V
2. Separate type (GX-LS) : 344 (W) × 442 (D) × 130 (H) mm*Vi

Net weight

Internal adjustment type (GX-L/GX-LS) : Approx. 17 kg

GX62001LS อุปกรณ์ที่มาในชุด

Display cover, AC adapter, USB cable (1.8 m), Cable clamp × 2*vii

GX62001LS อุปกรณ์เสริม

1. GXL-04*9*10 : Comparator relay output/buzzer/RS-232C/external key input interface
2. GXL-06*9*10 : Analog (0-1/0.2-1 V) output/RS-232C interface
3. GXL-07 : 5-meter cable for the GX-LS
4. GXL-08*9*10 : Ethernet (TCP/IP) interface
5. GXL-27*9*11 : Bluetooth® interface
6. GP-12 : Animal-weighing pan
7. GP-16 : AD-8127 printer support
8. GP-20 : Underhook for models with 42 kg capacity or below
9. GP-21 : Underhook for models with 62 kg capacity or above
10. AD-1682 : Rechargeable battery unit
11. AD-1683A : Static eliminator
12. AD-1684A : Electrostatic field meter
13. AD-1687 : Weighing environment logger
14. AD-1688 : Weighing data logger
15. AD-8127 : Compact printer
16. AD-8526 : RS-232C/Ethernet (TCP/IP) converter
17. AD-8920A : Remote display
18. AD-8922A :  Remote controller
19. AX-GXL-31 :Display unit cover (5 pcs)
20. AX-KO2737-500 :  Waterproof RS-232C cable (5 m)
21. AX-USB-9P : RS-232C/USB converter with cable

*9 Only one of GXL-04, GXL-06, GXL-08, GXL-27, or the standard (RS-232C and USB)
interfaces can be used.
*10 The GX-L/GF-L series are not IP65 with GXL-04, GXL-06, or GXL-08.
*11 Please contact your local A&D representative to find out whether GXL-27 is certified
for compliance with Bluetooth® communication laws in your country.

GX62001LS ข้อมูลจำเพาะ

1. Operating environment : 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)
2. Data memory : 200 weighing results + 50 sensitivity adjustment/calibration test results (with timestamps), 50 unit masses for counting mode, 20 sets of upper/lower limit values for comparator mode, and 20 tare values
3. Display refresh rate : 5 times/second, 10 times/second, or 20 times/second
4. Units of measure*iv : g (gram), kg (kilo gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), pcs (counting mode), % (percent mode), DS (density mode), and a user-programmable unit
