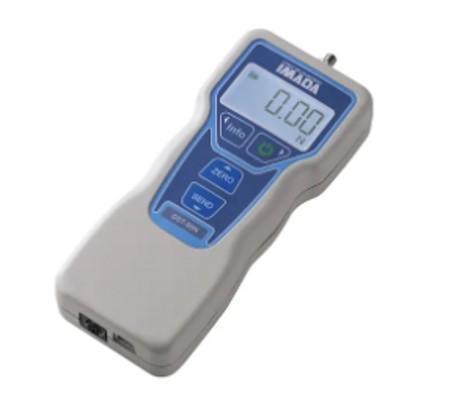

IMADA DST-5N Digital Force Gauge 5 Newton

DST-5N | ฟังก์ชั่นการวัด

Digital Force Gauge 5 Newton

DST-5N | จุดเด่น

Hand fitting design and light weight ideal for stable measurement even for handheld use

Great portability with long battery life (lasts 30 hours continuously at max with backlight off), and various charging methods (charges from a PC or a mobile battery)

Easy data management using supplied software Force Logger via USB connection to PC

Mechanical stopper for overload prevention (up to 50N range)

Assists management of force gauges with calibration schedule reminder showing a message 30 days in advance from the set schedule

DST-5N | ช่วงการวัด

Capacity  5N

Display  5.000N

Resolution  0.001N

DST-5N | Power Supply

Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC, mobile battery, AC adapter)

DST-5N | ขนาดสินค้า

D72xH181xW32 mm

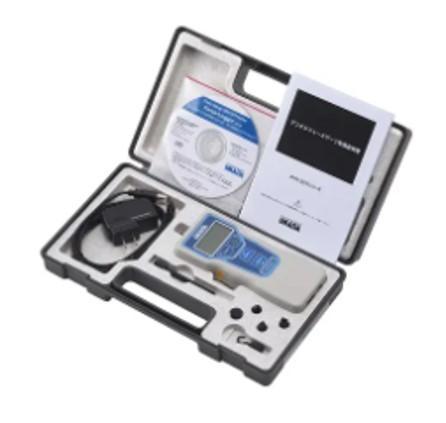

DST-5N | อุปกรณ์ที่มาในชุด

CD driver (including data logging software)

USB cable

AC adaptor

Attachments (The types of attachments vary by models)

Carrying case/ Instruction manual/Inspection certificate

DST-5N | ข้อมูลจำเพาะ

Model  DST-5N

Accuracy  ±0.2％F.S.(full scale)±1digit

Unit  N(mN, kN), kgf(gf), lbf (*1)

Display  4-digit LCD

Sampling rate  Max. 1000 data/sec

Battery

Approx.30 hours (when back light is off）

Approx.14 hours (when back light is on)

(need 4.5 hours for full charge）

Overload  Approx.200%F.S.

Power

Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC, mobile battery, AC adapter)

Operating environment

Temperature：0 - 40°C,

Humidity：20 -80%RH

Functions

Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/

Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/

Reminder for calibration schedule/Overload alarm

Tilt-sensing alarm/Continuity peak mode(*2)/Internal memory (1000 point)

Output  USB/RS232C

Overload alarm

Alarm to notify “near-overload state”: Approx. 90%F.S. (Alarm sound)

Alarm to notify “overloaded state” : Approx.110％F.S. (Alarm sound／Indication blinking)

Weight  Aprrox.460g (*3)
