เครื่องวัดแรงดิจิทัลแบบสมรรถนะสูง มีพิกัดการวัดสูงสุด 1000 นิวตัน มาพร้อมฟังก์ชันเพิ่มเติมจากซีรีส์ ZTS เช่น การรับ/ส่งสัญญาณระยะกระจัด (Displacement) และการบันทึกข้อมูลลง USB
Feature
High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time/force-displacement graphing also possible
Equips additional functions such as displacement I/O (linear scale required), direct connection to USB flash drive, and 1st and 2nd peak value detection
[Specifications of ZTA series]
Model | ZTA |
|---|---|
Feature | Standard Model with high functionality and usability. |
Accuracy | +/-0.2%F.S.+/-1digit |
Measurement Unit | N, kgf, lbf (*1) |
Display | 4-digit Organic EL |
Display update | 16 / sec |
Sampling Rate | 2000 data / sec at maximum (*2) |
Battery | 6.5 hours (2 hours for re-charging) (*3) |
Safe overload rating | Approx.200%F.S. |
Operating environment | Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
Function | Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, 1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force, Setting lock |
Output | USB, RS232C / ±2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
Overload warning | Approx.110%F.S. (Warning message and alarm) |
External connecting switch | Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching |
Available linear scales (*4) | - Online driver output (a line receiver according to RS422/485 must be built in.) - Open collector output (Voltage drop between contacts must be smaller than 0.5V.) |
Weight | From 2N to 1000N Model: Approx.490g (*5) 2500N, 5000N: Approx.1100g (*5) |
Dimensions | Please refer to dimensions. |

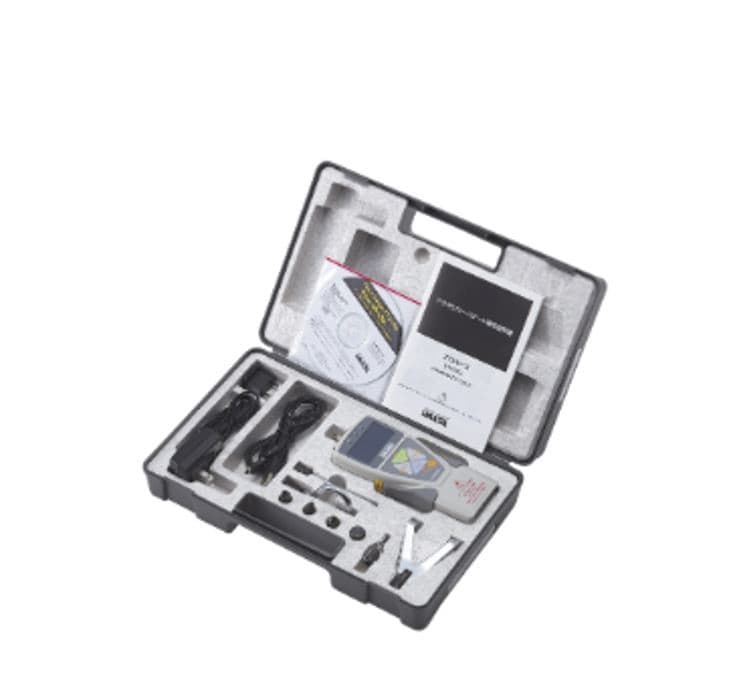

Accessory | AC adapter, Inspection certificate, CD driver (including data logging software), Attachments (The set of attachments varies according to range.), Handles (only for 2500N/5000N range), USB cable, Carrying case, Adaptor for USB flash drive (*6) |
1 The measurement Unit: mN displayed for models of 5N or less, and kN displayed for models of 1000N or more. In addition, possible to display the unit kg (g: 5N or less range) as a conversion value. 2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec).
3 The battery is more consumed when connected to USB flash drive or a linear scale.
4 Some linear scales could not be available even if they meet the mentioned specifications.
5 The Weight differs according to the Model range.
6 USB flash drive is not included.
[ZTA series models]
Model | Capacity | Display | Resolution | Measuring shaft | Measuring shaft |
|---|---|---|---|---|---|
ZTA-2N | 2N | 2.000N (2000mN) | 0.001N (1mN) | M6 P1.0 (Coarse thread) Thread length: 11.6mm | M6 P1.0 (Coarse thread) Thread length: 11.6mm |
ZTA-5N | 5N | 5.000N (5000mN | 0.001N (1mN) | ||
ZTA-20N | 20N | 20.00N | 0.01N | ||
ZTA-50N | 50N | 50.0N | 0.01N | ||
ZTA-100N | 100N | 100.0N | 0.1N | ||
ZTA-200N | 200N | 200.0N | 0.1N | ||
ZTA-500N | 500N | 500.0N | 0.1N | ||
ZTA-1000N | 1000N | 1000N (1.000kN) | 1N (0.001kN) | ||
ZTA-2500N | 2500N | 2500N (2.500kN) | 1N (0.001kN) | M10 P1.5 (Coarse thread) Thread length: 15mm | M10 P1.5 (Coarse thread) Thread length: 15mm |
ZTA-5000N | 5000N | 5000N (5.000kN) | 1N (0.001kN) |
