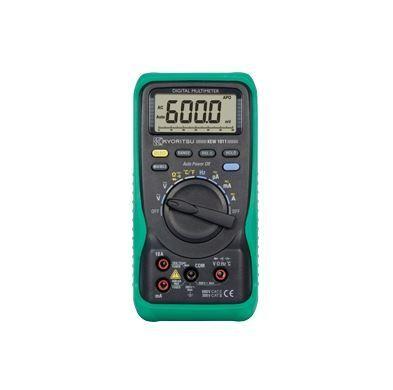

KYORITSU มัลติมิเตอร์แบบดิจิตอล DIGITAL MULTIMETER รุ่น KEW 1011 • 6040 counts with Bar Graph display • MIN/MAX function enables to record min & max value • REL(relative value) function • Temperature measurement, selectable for °C and °F • DUTY measurement function
ฟังก์ชั่นการวัด
DCV, ACV, DCA, ACA, Ohm
ช่วงการวัด
DC V 600.0mV/6.000/60.00/600.0/600V
AC V 6.000/60.00/600.0/600V
DC A 600/6000µA/60/600mA/6/10A
AC A 600/6000µA/60/600mA/6/10A
Ω 600Ω/6/60/600kΩ/6/60MΩ
Power Supply
R6P (1.5V) × 2 (Auto-Power-OFF Within 15 Minutes)
ขนาดสินค้า
Dimensions 161(L) × 82(W) × 50(D) mm.
Weight approx. 280g
อุปกรณ์ที่มาในชุด
7066A (Test leads)
8216 (K-type Temperature probe)
8918(Ceramic fuse[0.8A/600V]) × 1 (included)
8919(Ceramic fuse[10A/600V]) × 1 (included)
R6 × 2
Instruction Manual
อุปกรณ์เสริม
7234 (Crocodile clip test lead)
9095 (Carrying case)
ข้อมูลจำเพาะ
Continuity buzzer 0 – 600Ω (Buzzer sounds below 100Ω)
Diode test 2.8V open circuit voltage: Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1 – 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz)
Temperature
-50 – 300ºC (-58 – 572ºF)
(with the use of Temperature probe 8216)
Note: KEW 1011 can measure max. 700ºC
In order to measure over 300ºC, please use a K-type temperature probe available in the market.
Applicable standards
IEC 61010-1 CAT III 300V Pollution degree 2
IEC 61010-1 CAT II 600V Pollution degree 2
IEC 61010-031
IEC 61326
Display 6040 Counts
