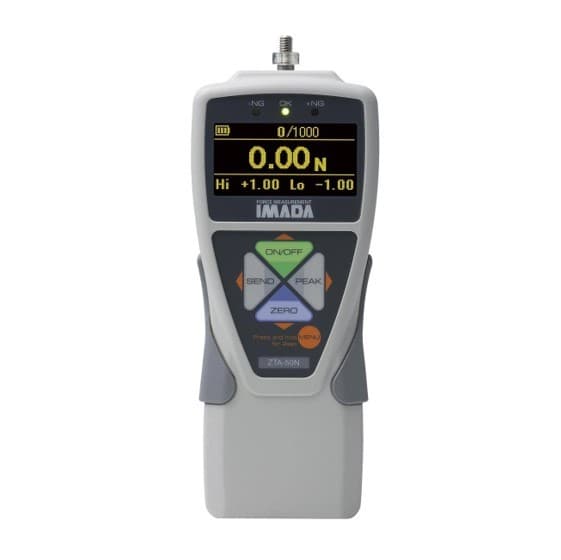

IMADA ZTA-50N เครื่องวัดแรงดึง-แรงผลัก 50 NewtonIMADA ZTA-50N เครื่องวัดแรงดึง-แรงผลัก 50 Newton
IMADA

IMADA ZTA-50N เครื่องวัดแรงดึง-แรงผลัก 50 Newton

รหัสสินค้า

ZTA-50N

฿27,500.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดแรงดึง-แรงผลัก Digital Force Gauge Capacity : 50N Resolution : 0.01N รองรับหน่วยการวัด N, kgf, lbf ยี่ห้อ IMADA , Japan

เพิ่มคำถาม

ZTA-50N ฟังก์ชั่นการวัด

เครื่องวัดแรงดึง-แรงผลัก Digital Force Gauge

ZTA-50N จุดเด่น

High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time/force-displacement graphing also possible
Equips additional functions such as displacement I/O (linear scale required), direct connection to USB flash drive, and 1st and 2nd peak value detection

ZTA-50N ช่วงการวัด

Capacity : 50N

Display : 50.00N
Resolution : 0.01N

Accuracy +/-0.2%F.S.+/-1digit

ZTA-50N Power Supply

6.5 hours (2 hours for re-charging) (*3)

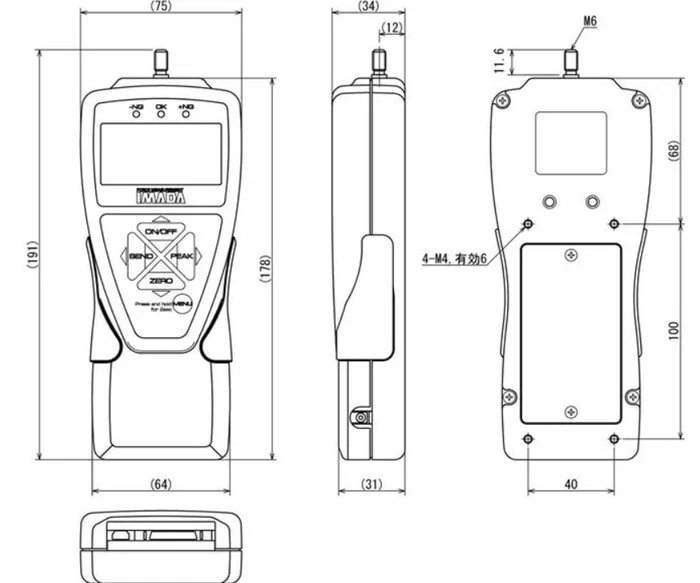

ZTA-50N ขนาดสินค้า

Dimensions: ~1000N

Approx.490g (*5)

Unit: mm

IMADA ZTA-50N เครื่องวัดแรงดึง-แรงผลัก 50 Newton

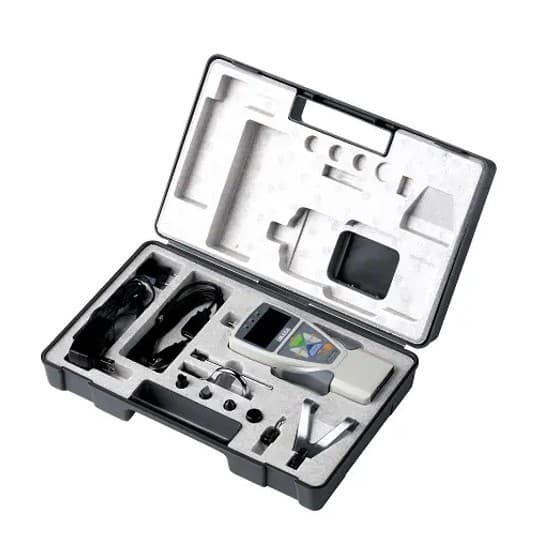

ZTA-50N อุปกรณ์ที่มาในชุด

AC adapter,

Inspection certificate,

CD driver (including data logging software),

Attachments (The set of attachments varies according to range.),

USB cable,

Carrying case,

Adaptor for USB flash drive (*6)

ZTA-50N ข้อมูลจำเพาะ

Feature  Standard Model with high functionality and usability.

Measurement Unit N, kgf, lbf (*1)

Display 4-digit Organic EL

Display update 16 / sec

Sampling Rate 2000 data / sec at maximum (*2)

Safe overload rating Approx.200%F.S.

Operating environment  Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH

Output

USB, RS232C / ±2VDC analog output (D/A),

Comparator 3 steps (-NG/OK/+NG), Overload alarm

Overload warning

Approx.110%F.S. (Warning message and alarm)

External connecting switch  Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching

Available linear scales (*4)

- Online driver output (a line receiver according to RS422/485 must be built in.)

- Open collector output (Voltage drop between contacts must be smaller than 0.5V.)

*1 The measurement Unit: mN displayed for models of 5N or less, and kN displayed for models of 1000N or more.
In addition, possible to display the unit kg (g: 5N or less range) as a conversion value.
*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec).
*3 The battery is more consumed when connected to USB flash drive or a linear scale.
*4 Some linear scales could not be available even if they meet the mentioned specifications.
*5 The Weight differs according to the Model range.
*6 USB flash drive is not included.
