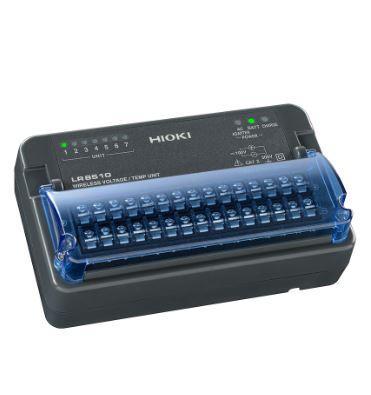

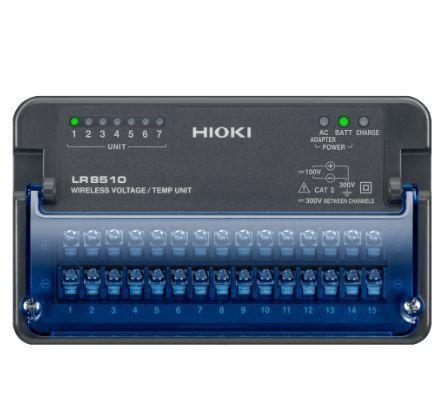

WIRELESS VOLTAGE/TEMP UNIT LR8510 for LR8410-20

LR8510 | ฟังก์ชั่นการวัด

15 analog channels

LR8510 | จุดเด่น

Capture logging data using Bluetooth® wireless technology. Install in hard-to-reach locations

Choose an input module based on the parameters you wish to measure (15-channel type)

Easily add up to 7 input modules wirelessly to keep your environment free of tangled wires

100 msec simultaneous sampling across all channels using rapid scanning method

LR8510 | ช่วงการวัด

[Voltage] ±10 mV to ±100 V, 1-5 V f.s., max. 500 nV resolution
[Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, T, or other), max. 0.01 ˚C resolution
Not available for [Pt 100, JPt 100 sensor] [Resistance] [Humidity]
[Max. rated voltage between isolated input channels] 300 V DC
[Max. allowable input] ±100 V DC
[Max. rated voltage from isolated terminals to ground] 300 V AC, DC

LR8510 | Power Supply

[AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 23 VA Max. (including AC adapter), 7 VA Max. (exclusive of AC adapter)
[Internal battery] Using the Battery Pack Z1007 (optional accessory), 24 hours of continuous use (at 100 ms recording interval, 23 ˚C reference data), 120 hours of continuous use (at 1 minute recording interval, 23 ˚C reference data), 0.4 VA Max.
[External power] 10 to 28 V DC, 7 VA Max.

LR8510 | ขนาดสินค้า

150 mm (5.91 in) W × 90 mm (3.54 in) H × 56 mm (2.20 in) D, 340 g (12.0 oz)

LR8510 | อุปกรณ์ที่มาในชุด

Instruction manual ×1

AC adapter Z1008 (with supplied power cord) ×1

Bracket ×1

M3×4 mm screw ×2

LR8510 | อุปกรณ์เสริม

BATTERY PACK Z1007

AC ADAPTER Z1008

LR8510 | ข้อมูลจำเพาะ

Supported model: Model LR8410-20

Control and communications: Between instrument and unit: Bluetooth® 2.1 + EDR, Communications range: 30 m (98.43 ft), Security: SSP

Measurement parameters: [No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type)
[Voltage] ±10 mV to ±100 V, 1-5 V f.s., max. 500 nV resolution
[Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, T, or other), max. 0.01 ˚C resolution
Not available for [Pt 100, JPt 100 sensor] [Resistance] [Humidity]
[Max. rated voltage between isolated input channels] 300 V DC
[Max. allowable input] ±100 V DC
[Max. rated voltage from isolated terminals to ground] 300 V AC, DC

Operating temperature: -20 °C to +60 °C (-4 °F to 140 °F)

Power supply: [AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 23 VA Max. (including AC adapter), 7 VA Max. (exclusive of AC adapter)
[Internal battery] Using the Battery Pack Z1007 (optional accessory), 24 hours of continuous use (at 100 ms recording interval, 23 ˚C reference data), 120 hours of continuous use (at 1 minute recording interval, 23 ˚C reference data), 0.4 VA Max.
[External power] 10 to 28 V DC, 7 VA Max.

Dimensions and mass: 150 mm (5.91 in) W × 90 mm (3.54 in) H × 56 mm (2.20 in) D, 340 g (12.0 oz)

Included accessories: Instruction manual ×1, AC adapter Z1008 (with supplied power cord) ×1, Bracket ×1, M3×4 mm screw ×2
