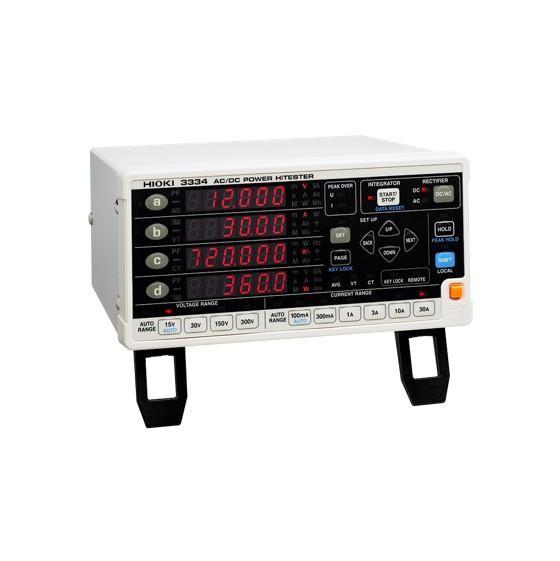

HIOKI 3334 เครื่องวิเคราะห์ไฟฟ้า AC/DC POWER HiTESTER

Hioki-3334 ฟังก์ชั่นการวัด

เครื่องวัดกระแสไฟ AC/DC HiTESTER

Hioki-3334 จุดเด่น

Compatible with the SPECpower® (*1) benchmarking for server power consumption
DC measurement mode, AC, and AC+DC measurement
Integration function for current and power
±0.1% high basic accuracy (*2) For complete details, please refer to the specifications)
Extended period of guaranteed accuracy of 3 years
Complete accuracy over a wide input range

*1:SPECpower® is a registered trademark of Standard Performance Evaluation Corporation.
*2:For complete details, please refer to the specifications.

Hioki-3334 ช่วงการวัด

Measurement lines Single-phase/ two-wires
Measurement items Voltage, Current, Active power, Apparent power, Power factor, Frequency, Integration (current, active power), Waveform peak (voltage and current)
Measurement ranges

[Voltage] AC/DC 15.000/ 30.00/ 150.00/ 300.0 V
[Current] AC/DC 100.00/ 300.0 mA, 1.0000/ 3.000/ 10.000/ 30.00 A
[Power] 1.5000 W to 9.000 kW (combination of voltage and current ranges)

Integration measurement Integration time up to 10,000 hours

[Current] No. of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value)
[Active power] No. of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance (50/60 Hz) [Voltage] 2.4 MΩ, [Current] 10 mΩ or less (direct input)
Basic accuracy

±0.1% rdg. ±0.2% f.s. (DC), ±0.1% rdg. ±0.1% f.s. (45 Hz to 66 Hz)
Note: Provided accuracy of 1 Year, typical value

Hioki-3334 Power Supply

100 V to 240 V AC, 50/60 Hz, 20 VA max.

Hioki-3334 ขนาดสินค้า

210 mm (8.27 in) W × 100 mm (3.94 in) H × 245 mm (9.65 in) D, 2.5 kg (88.2oz)

Hioki-3334 อุปกรณ์ที่มาในชุด

Instruction manual ×1, Power cord ×1

Hioki-3334 อุปกรณ์เสริม

GP-IB CONNECTOR CABLE 9151-02
RS-232C CABLE 9637

Hioki-3334 ข้อมูลจำเพาะ

Display refresh rate 5 times/s
Frequency characteristics DC, 45 Hz to 5 kHz
Waveform output

Parameter output representation: voltage, current and power (3 simultaneous channels), Output voltage: 1 V DC f.s.
Analog output (D/A output)

Parameter output representation: voltage, current active power and selected 1 item (4 simultaneous channels), Selected 1 item from apparent power, power factor, current integration, active power integration, Output voltage: ±2 V DC f.s.
Functions

Rectification method switchable between AC+DC (True RMS), DC (simple average), AC (True RMS), Wave peak measurement, VT or CT ratio settings, Average function
Interfaces RS-232C included as standard, GP-IB (Model 3334-01 only)
