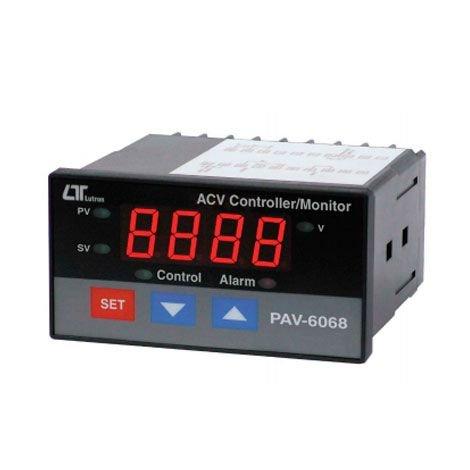

Lutron PAV-6068 เครื่องควบคุม AC Current Controller/Monitor

Without PT( direct input )

Measurement range

1 ACV to 600 ACV
* True rms value

Accuracy

± ( 0.5 % + 5d ) reading

Resolution

 0.1 ACV

With PT ( Potential transformer )

Measurement range

10 ACV to 9999 ACV

 Accuracy

  1 ACV

 Resolution

 ± ( 0.5 % + 5d ) reading

specification

Display

4 digits red LED, 14 mm ( 0.55 inch ) digit height

5 indicator :

• PV ( process value ) indicator

• SV ( set value ) indicator

• Control out indicator

• Alarm out indicator

• V ( ACV ) indicator

Circuit

Custom chip of microprocessor LSI circuit

Sampling Time

Approx. 0.8 second

Relay Output

2 relays

Function :

• Relay 1 : control relay

• Relay 2 : High/Low alarm relay

Setting Function

1st layer setting procedures

• CtLo ( Control low limit )

• CtHi ( Control high limit )

• ALLo ( Alarm low limit )

• ALHi ( Alarm high limit )

• Second layer setting procedures

• CtSt ( CT rate setting )

• CtHy ( Control hysteresis value setting )

• ALHy ( Alarm hysteresis value setting )

Over input

" - - - - " mark indication

Zero Adjustment

Automatic adjustment

Data Output

RS 232 PC serial interface

Power Supply

90 to 260 ACV, 50/60 Hz

Power  Consumption

Approx. 3.3 VA/AC 110V
Approx. 4.9 VA/AC 220V

Dimension

DIN size : 96 x 48 mm
Depth : 110 mm
weight : 261 g

AccessoriesIncluded

• PAV-6068 x 1

• Instruction manual x 1

• Case holder with screw x 2

Optional Accessories

• Data Acquisition software SW-E816

• RS232 cable, UPCB-02

• USB cable, USB-01

• GSM controller, GSM-889

• Interface cable ( cable between meter to GSM-889 ), GMCB-89
