LUTRON

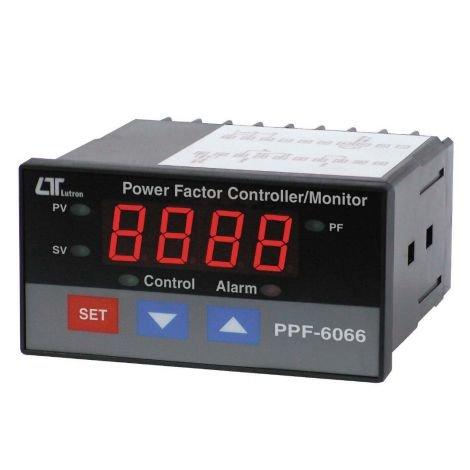

Lutron PPF-6066 เครื่องควบคุม Power Factor Controller/Monitor

รหัสสินค้า

ppf-6066

฿9,500.00(ไม่รวมภาษี)

จำนวน

ภาพรวม

Lutron PPF-6066 เครื่องควบคุม Power Factor Controller/Monitor มาพร้อม standard DIN case (96 × 48 mm) และฟังก์ชันควบคุมพร้อมสัญญาณเตือนในตัว ภายในใช้วงจรไมโครโปรเซสเซอร์ที่ช่วยเพิ่มความแม่นยำในการวัด พร้อมรองรับฟังก์ชันการทำงานพิเศษหลากหลาย หน้าจอแสดงผลเป็น LED สีแดงขนาดใหญ่ ให้ความสว่างสูง มองเห็นได้ชัดเจนแม้ในสภาพแสงน้อย มาพร้อมฟังก์ชันตั้งค่า Control, การตั้งค่าสัญญาณเตือนสูง/ต่ำ (Hi/Lo alarm) พร้อม Output ของ Control Relay และ Alarm Relay

เพิ่มคำถาม

เครื่องควบคุม Power Factor Controller/Monitor

  • เครื่องวัดค่า Power Factor ระดับมืออาชีพ พร้อม standard DIN case (96 × 48 mm) และฟังก์ชันควบคุม/สัญญาณเตือน

  • วงจรไมโครโปรเซสเซอร์ (Microprocessor) ช่วยให้การวัดมีความแม่นยำสูง พร้อมฟังก์ชันการทำงานพิเศษ

  • จอแสดงผล LED สีแดงขนาดใหญ่ ความสว่างสูง มองเห็นชัดเจน

  • ช่วงการวัดโดยไม่รวมการใช้ CT และ PT ภายนอก : Power factor : 0.10 to 1.00 PF

  • Current input สามารถเชื่อมต่อกับ CT ภายนอก (Current Transformer) เช่น CT 1000/5A, CT 100/5A เพื่อขยายช่วงการวัด โดยสามารถปรับค่า CT ได้ตามค่าเริ่มต้น

  • Voltage input สามารถเชื่อมต่อกับ PT ภายนอก (Voltage Transformer) เพื่อขยายช่วงการวัด โดยสามารถปรับค่า PT ได้ตามค่าเริ่มต้น

  • Control setting, Hi/Lo alarm setting

  • Control relay output, alarm relay output.

  • Control relay จะทำงานเมื่อค่าที่อ่านได้ถึงค่าที่ตั้งไว้สำหรับควบคุม

  • alarm relay จะทำงานเมื่อค่าที่อ่านได้ถึงค่าที่ตั้งไว้สำหรับสัญญาณเตือนสูง/ต่ำ

  • สามารถตั้งค่า Hysteresis สำหรับฟังก์ชันควบคุมและสัญญาณเตือน

  • มีอินเทอร์เฟซคอมพิวเตอร์ RS232/USB

  • มีซอฟต์แวร์เก็บข้อมูล (Data acquisition software) ให้เลือกใช้งานเพิ่มเติม

ช่วงการวัด

  • Range : 0.10 to 1.00

  • Resolution : 0.01

  • Accuracy : ± ( 1.5 % + 2d ) reading

Power Supply

90 to 260 ACV, 50/60 Hz.

ขนาดเครื่อง

  • DIN size : 96 x 48 mm

  • Panel cut size : 92 x 46 mm

  • Depth : 110 mm

  • Weight : 261 g

อุปกรณ์ที่มาในชุด

  • PPF-6066 x 1

  • Instruction manual x 1

  • Case holder with screw x 2

อุปกรณ์เสริม

ข้อมูลจำเพาะ

Display

Large LED display. 4 digit LED

14 mm ( 0.55 inch ) digit height

5 indicators

  • PV ( process value ) indicator

  • SV ( set value ) indicator

  • Control out indicator

  • Alarm out indicator

  • PF indicator

Circuit

Custom chip of microprocessor LSI circuit

Power factor measurement

0.10 to 1.00 PF.

Input signal

ACV : 0 to 600 ACV, 40 to 400 Hz.

ACA : 0 to 10 A, 40 to 400 Hz.

* w/o PT. CT.

Sampling Time

Approx. 0.8 second

Relay Output

Number : 2 relays

Function :

  • Relay 1 : control relay

  • Relay 2 : High/Low alarm relay

Setting function

1st layer setting procedures :

  • CtLo ( Control low limit )

  • CtHi ( Control high limit )

  • ALLo ( Alarm low limit )

  • ALHi ( Alarm high limit )

Second layer setting procedures :

  • CtSt ( CT rate setting )

  • PtSt ( PT rate setting )

  • CtHy ( Control hysteresis value setting )

  • ALHy ( Alarm hysteresis value setting )

Over input

" - - - - " mark indication

Zero Adjustment

Automatic adjustment

Data Output

RS232 / USB PC Computer interface

*Connect the optional RS232 cable, UPCB - 02 will get the RS232 plug

*Connect the optional USB cable, USB - 01 will get the USB plug
