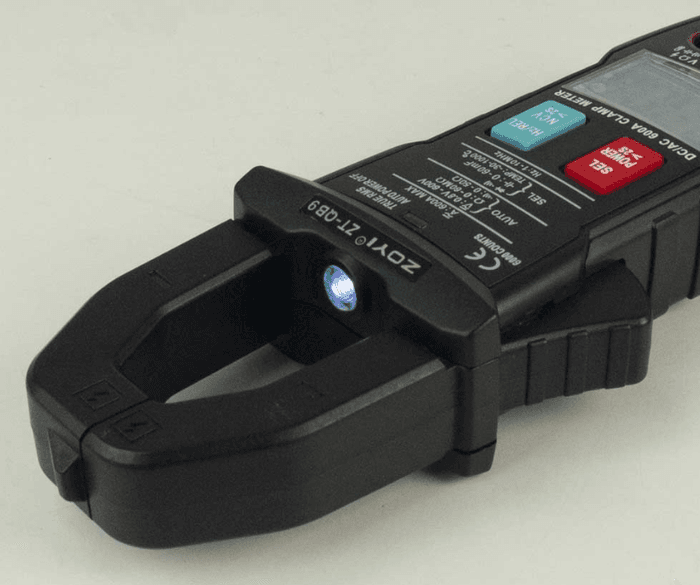

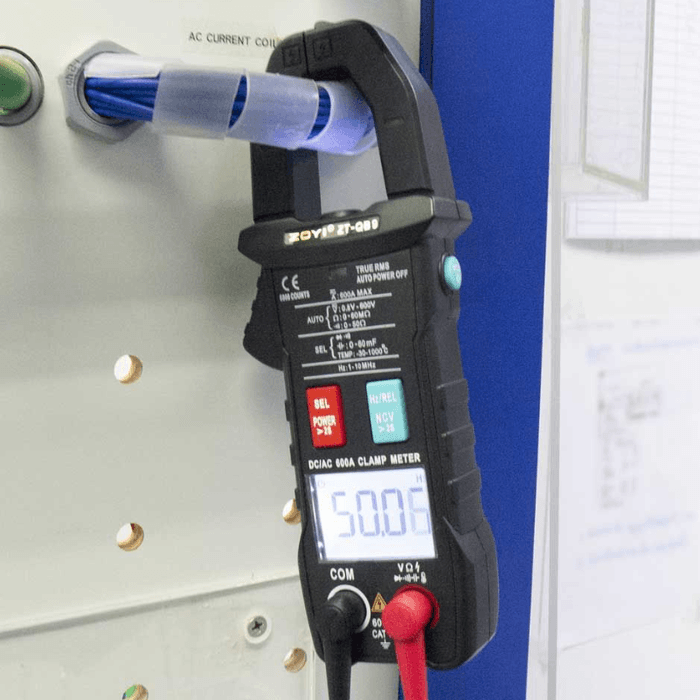

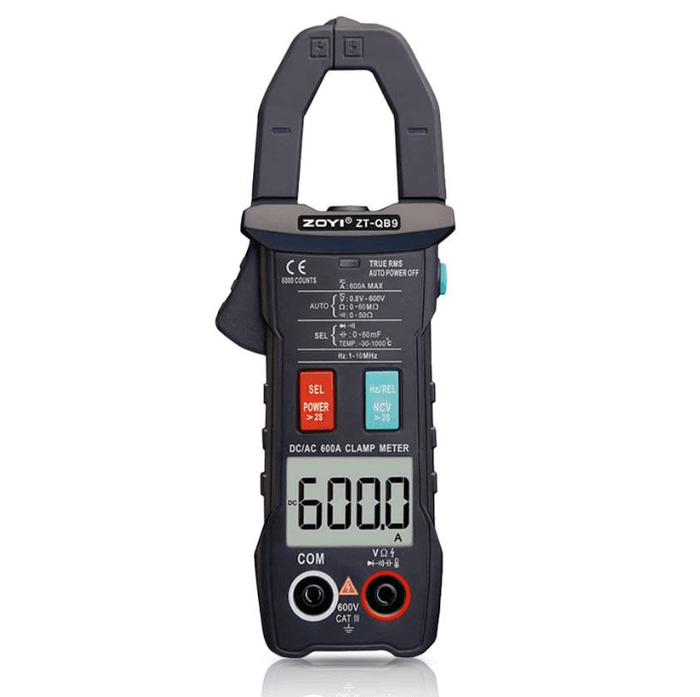

ZOYI ZT-QB9 แคลมป์มิเตอร์ (True RMS, AC/DC Current, DC/AC Voltage)

ZT-QB9 | ฟังก์ชั่นการวัด

✔ Auto ranging

✔ True RMS

✔ Data hold

✔ Backlight

✔ Low battery alert

✔ Auto power off

✔ Flashlight

✔ Inrush current

✔ Peak Hold

✔ Smart mode

✔ DC & AC current test

ZT-QB9 | ช่วงการวัด

DC Voltage

Range 6.000V / 60.00V / 600.0V Accuracy ±(0.5%+3)

AC Voltage

Range 6.000V / 60.00V / 600.0V Accuracy ±(1.0%+3)

DC Current

Range 60.00A / 600.0A Accuracy ±(2.0%+30)

AC Current

Range 60.00A / 600.0A Accuracy ±(2.0%+30)

Resistance

Range 6.000kΩ Accuracy ±(1.5%+3)

Range 60.00kΩ / 600.0kΩ / 6.000MΩ Accuracy ±(0.5%+3)

Range 60.00MΩ ±(1.5%+3)

Capacitance

Range 6.000nF Accuracy ±(5.0%+20)

Range 60.00nF / 600.0nF / 6.000μF / 60.00μF / 600.0μF Accuracy ±(2.0%+5)

Range 6mF / 60.000mF Accuracy ±(5.0%+5)

Frequency

Range 6.000Hz / 60.00Hz / 600.0Hz / 6kHz / 60kHz / 600kHz / 6MHz / 10MHz Accuracy ±(0.5%+5)

Temperature

Range -30℃~1000℃ / -22℉~1832℉

ZT-QB9 | Power Supply

Battery AA x 2

ZT-QB9 | ขนาดสินค้า

Core Jaw ø 24mm (Max. ø 42mm)

Dimension / Weight 172 x 64 x 32mm / 250g

ZT-QB9 | อุปกรณ์ที่มาในชุด

• Batteries
• Test leads
• Standard user manual
• Black soft case
• Thermocouple probe
