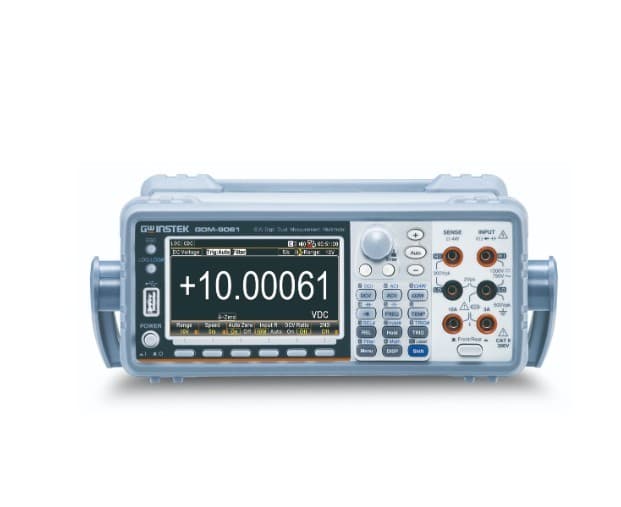

GW instek GDM-9061 Dual Measurement Multimeter-photo1

GW instek GDM-9061 Dual Measurement Multimeter

Name: GW instek GDM-9061 Dual Measurement Multimeter
Brand: GW-Instek
SKU: gdm-9061
Price: 55770 THB
Availability: OutOfStock

SKU

gdm-9061

฿55,770.00(ราคายังไม่รวมภาษี 7%)

ภาพรวม

ตัวมัลติมิเตอร์แบบวัดค่าพร้อมกัน 2 ช่อง โดดเด่นด้วยความแม่นยำในการวัดแรงดันไฟฟ้ากระแสตรง (DC) สูง อัตราการสุ่มตัวอย่างรวดเร็ว รองรับฟังก์ชันการวัดทั้งหมด 12 รูปแบบ DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance

เพิ่มคำถาม

Feature

6 1/2 Digit Display:1,200,000 Counts
4.3 TFT Graphic LCD
DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)
12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance
Sampling Rate up to 10k SPS (GDM-9061)
Dual Measurement Function to Providing Two Selected Measurement Simultaneously
Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend
Temperature Measurement Support RTD, Thermistor as Well as Thermocouple
Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
Optional Interface: GPIB

Specifications

Measurements

Mode	Range	Basic precision	Minimum Resolution
Max. DC Voltage	1000 V	±(0.0035 + 0.0005)	0.1 μV
Max. DC Current	10 A	±(0.05 + 0.005)	100 pA
Max. AC Voltage	750 V	±(0.06 + 0.04)	0.1 μV
Max. AC Current	10 A	±(0.30 + 0.04)	100 pA
Max. resistance	100 MΩ	±(0.010 + 0.001)	100 μΩ
Max. capacitance	100 μF	±(2 + 0.40)	0.001 nF
Frequency	3 Hz - 1 MHz	±(0.1)
Temperature	-200 °C ~ +1820 °C	±(0.06 °C (typical))	0.001 °C

Sampling rate

10k/sec

Memory

100k

Measurement functions

DCV, ACV, DCI, ACI, 2-/4-wire resistance, frequency, period, diode, continuity, temperature, capacity

Math functions

dB, dBm, Compare, MX+B, Percent, 1/X

Display

6 1/2 Digit Display - 1,200,000 counts
4.3" Color TFT (480 x 272)

Connectivity

RS232C,USB Host/Device,Lan,Digital I/O

Dimensions

267(W) x 107(H) x 302(D) mm

Weight

3.5 kg

Included Accessories

Safety Instructions x1, Power cord x1,

USB cable GTL-246 x1, Test lead GTL-217 x1,

CD x1(including the complete user manual, upgrade program and PC software, DMM-Viewer2)

Option

GDM-90G1 GPIB card

(*) GPIB can be installed at customer site

Optional Accessories

GTL-205A Temperature Probe Adapter with Thermocoupling (K-type), approx. 1000mm

GTL-234 RS-232C Cable, 9-pin female-female cable, null modem for computer, approx. 2000mm

GTL-248 GPIB Cable, approx. 2000mm

GTL-308 4Wire Type (+shield) Test Lead, approx. 1500mm

GRA-422 Rack Mount Kit (19",2U)

GRA-454 Rack Mount Kit (19",2U) for one set or two Sets

GDM-TL1 Test Lead Set for All DMM

GSC-014 Soft Carrying case for DMM Accessory
