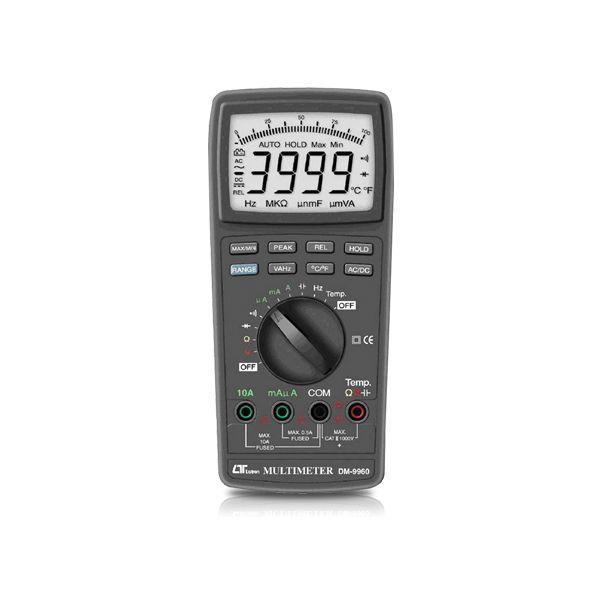

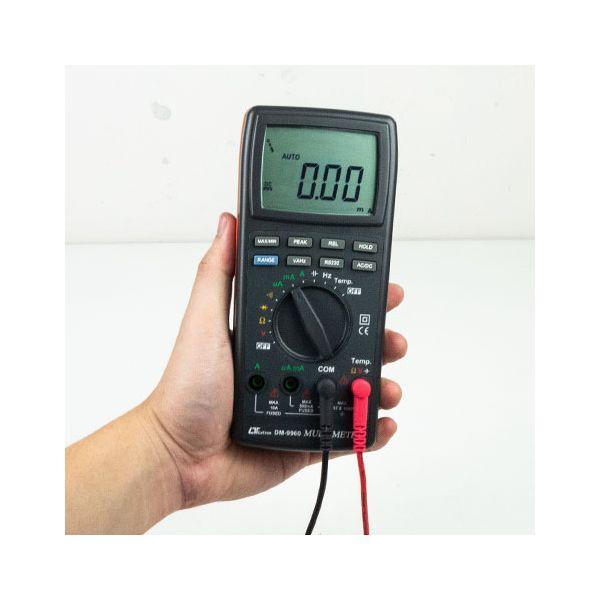

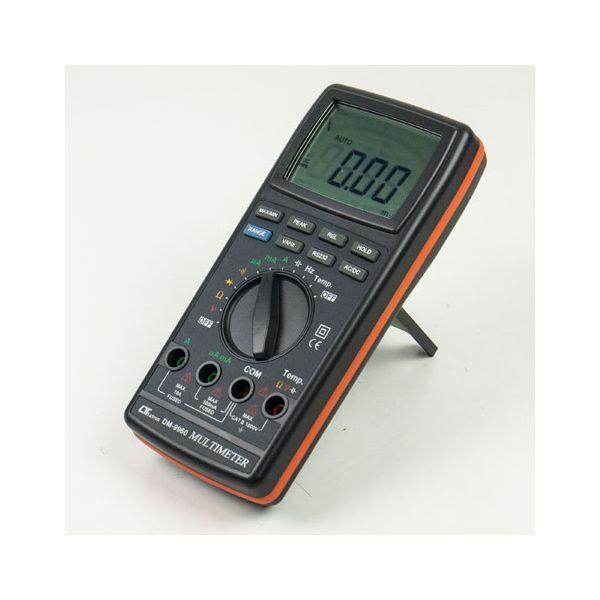

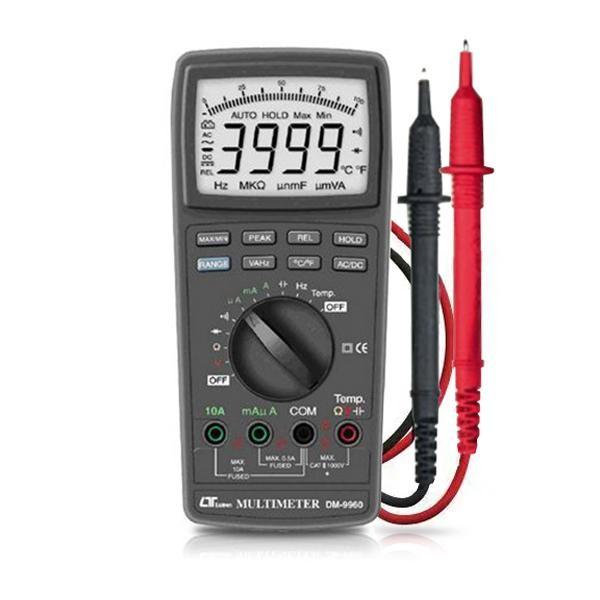

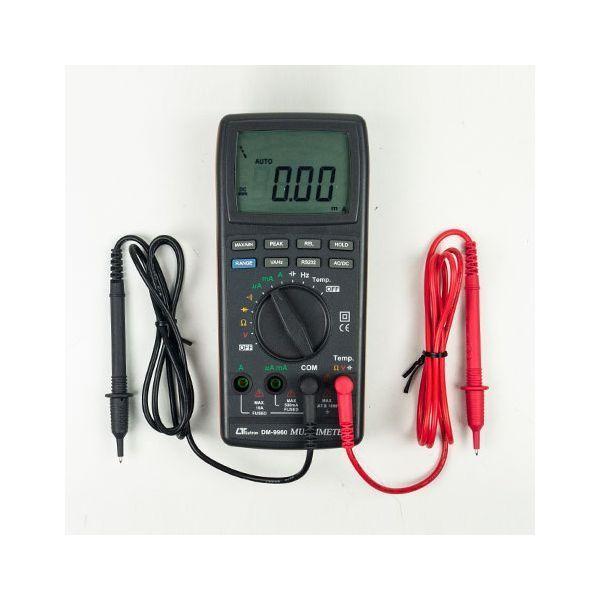

Lutron DM-9960 เครื่องวัดมัลติมิเตอร์แบบดิจิตอล

รหัสสินค้า

DM-9960

฿4,900.00(ไม่รวมภาษี)

ภาพรวม

Lutron DM-9960 เครื่องวัดมัลติมิเตอร์แบบดิจิตอล มัลติมิเตอร์ CAT III-1000V AUTO RANGE DMM, bar graph ฟังก์ชั่นการวัด ACV, DCV, Ohms, Continuity beeper, Hz, Capacitance, Temperature, Diode ตัวเครื่องสามารถ Peak, Data hold, Relative, Max//Min. ค่าการวัด สามารถเลือกปรับ Auto range หรือ Manual range ได้ ยี่ห้อ Lutron, Taiwan

เพิ่มคำถาม

DM-9960 ฟังก์ชั่นการวัด

DC Voltage
AC Voltage

Ohms

Continuity beeper

Frequency

Capacitance

Temperature

Diode

DM-9960 จุดเด่น

✔ตัวเครื่องสามารถ Peak, Data hold, Relative, Max//Min. ค่าการวัด
✔สามารถเลือกปรับ Auto range หรือ Manual range ได้

✔ฟังก์ชั่น “V”  สำหรับวัด ACV, DCV
✔ฟังก์ชั่น “Ω”  สำหรับวัด Resistance, Diode, Capacitance, Continuity beeper
✔ฟังก์ชั่น “℃” สำหรับวัดอุณหภูมิ ใช้งานร่วมกับ Temperature probe  Type K, T
✔Build-in Overload Protection : ± 500 DCV, 350 ACV.
✔หน้าจอ LCD ขนาดใหญ่

DM-9960 ช่วงการวัด

ช่วงการวัด ACV : 400.0 mV / 4 V/ 40 V/ 400 V / 1000 V
Resolution : 0.1 mV /1 mV /10 mV /100m V/1 V
Accuracy : ± ( 1% + 2d )  Spec. are tested under 50/60 Hz.
ช่วงการวัด DCV  : 400.0 mV / 4 V/ 40 V/ 400 V / 1000 V
Resolution : 0.1 mV /1 mV /10 mV /100m V/1 V
Accuracy : ± ( 0.5% + 2d )- 400 mV.
: ± ( 0.8% + 1d )- 4 V, 40 V, 400 V, 1000 V

ช่วงการวัด DC Current, AC Current :  10 A/ 400 mA/ 40 mA/ 4000 uA/ 400 uA
Resolution : 10 mA/0.1 mA/0.01 mA/1 uA/0.1 uA
Accuracy : 400 uA : ±( 1 % + 2d )
: 4000 uA : ±( 1.5 % + 2d )
: 40 mA : ±( 1 % + 2d )
: 400 mA : ±( 1.5 % + 2d )
: 400 mA : ±( 1.5 % + 2d ) * ACA spec. are tested under 50/60 Hz


ช่วงการวัด Diode : 2 V
Accuracy : ±( 0.5% + 2d )


ช่วงการวัด Capaitance : 4 nF/ 40 nF/ 400 nF/ 4 uF/ 40 uF/ 400 uF/ 4 mF/ 40 mF
Resolution : 1 pF/ 10 pF/ 0.1 nF/ 1 nF/ 10 nF/ 0.1 uF
Accuracy : ±( 3 % + 1d )


ช่วงการวัด Frequency :  4 KHz/ 40 KHz/ 400 KHz/ 4 MHz/ 40 MHz
Resolution : 1 Hz/ 10 Hz/ 0.1 KHz/ 1 kHz/ 0.01 MHz/ 0.1 MHz
Accuracy : ±( 0.5% + 2d )


ช่วงการวัด OHMS : 400/ 4 K/ 40 K/ 400 K/ 4 M/ 40 M ohm
Resolution : 0.1/ 1/ 10/ 100/ 1 K/ 10 K ohm
Accuracy : 400 ohm : ±( 1 % + 2d )
: 4K/ 40K/ 400K/ 4 M : ±( 1.5 % + 2d )
: 40 M : ±( 3 % + 5d )


ช่วงการวัด Temperature : -20 to 750 ℃
Resolution : 1 ℃
Accuracy : -20 to 300 ℃ : ±( 1% + 2 )
: 301 to 750 ℃  : ± 3% reading

Continuity beeper : Beeper will sound if measured resistance less than 20 hom

DM-9960 Power Supply

แบตเตอรี่ :1.5V Battery x 2  UM-4/AAA/Micro/R03 type

DM-9960 ขนาดสินค้า

ขนาดตัวเครื่อง 185 x 88 x 40 mm (350g)

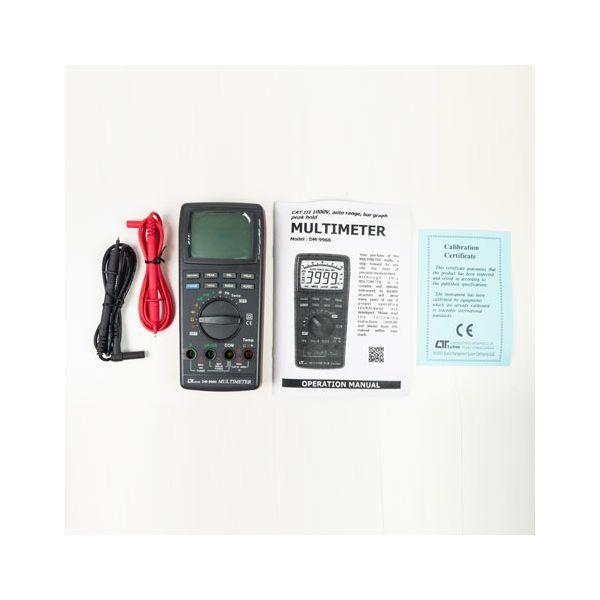

DM-9960 อุปกรณ์ที่มาในชุด

ตัวเครื่อง DM-9960
Red and Black Test lead x1
0.5 Amp Spare Fuse x1
Instruction Manual x1

DM-9960 อุปกรณ์เสริม

ACA/ DCA current adapter, adapter, Tachometer adapter Humidity adapter, Pressure adapter, Light adapter, EMF adapter, Sound level adapter
High voltage probe.
Temperature probe  TP-11
RS232 cable UPCB-06

DM-9960 ข้อมูลจำเพาะ

Display : 65 mm x 48 mm large LCD display with bar graph indicator.
Measurement :  DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper.
A/D counts no. :  4000 counts.
Range selection :  Auto range with manual range selecting.
Special function :  Max./Min., Peak value, Relative measurement, Data hold.
Data :  hold To freeze the display reading on the LCD display.
Memory recall :  Records Maximum & Minimum readings with recall.
Peak value :  To measure the signal peak value.
Relative measurement :  To offset the measurement value.
VAHz button :  When execute the ACV, ACA function also can measure the frequency of signal.
Data output :  RS 232 PC serial interface, photo couple.
Polarity :  Automatic Switching, , " - " indicates neqative polarity.
Zero adjustment :  Automatic.

Sampling time :  Approx. 0.5 to 1 second.

Operating temperature :  0 ℃ to 50 ℃(32 ºF to 122 ºF).

Operating humidity :  Max. 80% RH.

Power supply :  1.5 V battery x 2 PCS
Power
:  Approx. 0.5 to 1 second.
