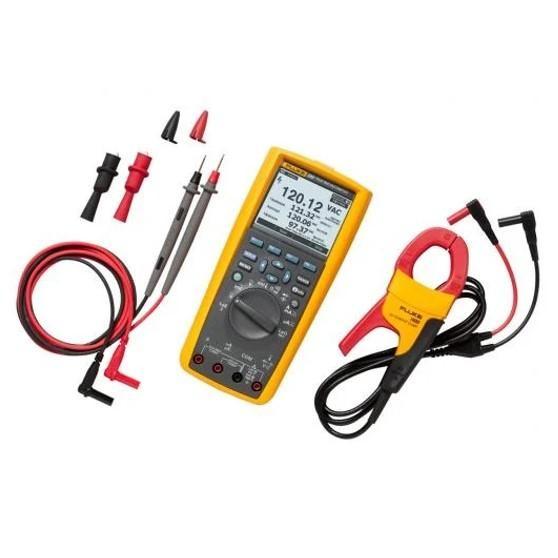

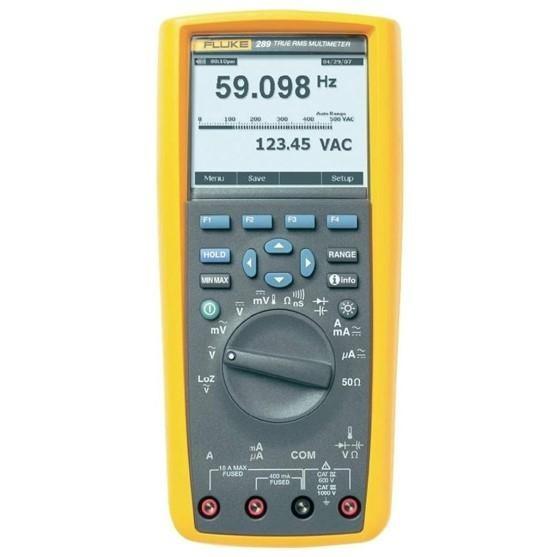

Fluke 289 ดิจิตอลมัลติมิเตอร์ IMSK Industrial Multimeter Service Kit

Fluke-289-IMSK ฟังก์ชั่นการวัด

ดิจิตอลมัลติมิเตอร์ /Multimeter

Fluke-289-IMSK จุดเด่น

True-RMS accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording give you the results you need.

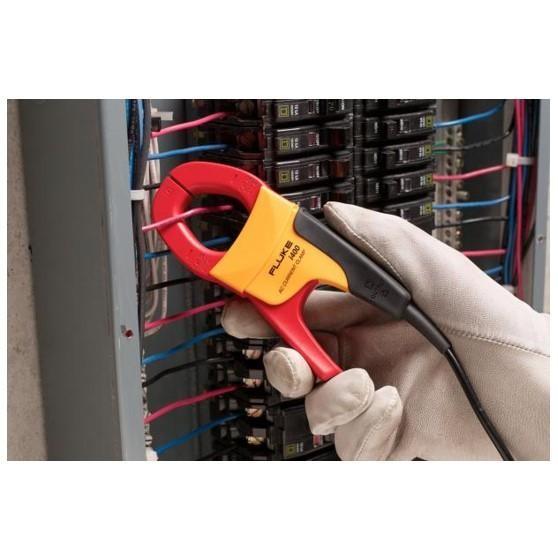

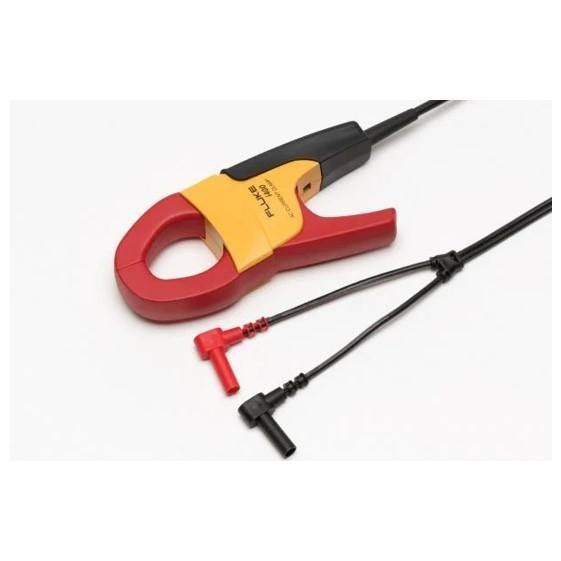

Fluke-i400 AC 400A Current Clamp turns the 289 into a clamp meter.
Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.

Fluke-289-IMSK ช่วงการวัด

DC volts

Range / resolution 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

Basic accuracy 0.025%

AC volts

Range / resolution 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
Basic accuracy 0.4% (True-RMS)

DC current

Range / resolution 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy 0.05%

AC current

Range / resolution 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy 0.6% (True-RMS)

Temperature (excluding probe)

Range / resolution -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
Basic accuracy 1.0%

Resistance

Range / resolution 50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Basic accuracy 0.05%

Capacitance

Range / resolution 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
Basic accuracy 1.0%

Frequency

Range / resolution 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Basic accuracy 0.005%

Connectivity

Optional infrared connector via Fluke ir3000 FC

Fluke-289-IMSK Power Supply

6 AA alkaline batteries, NEDA 15A IECLR6

Fluke-289-IMSK ขนาดสินค้า

22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
870.9 g (28 oz)

Fluke-289-IMSK อุปกรณ์ที่มาในชุด

Fluke-289-IMSK ข้อมูลจำเพาะ

Maximum voltage between any terminal and earth ground  1000 V

Battery life 100 hours minimum, 200 hours in logging mode

Temperature

Operating  -20°C to 55°C
Storage -40°C to 60°C

Relative humidity 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility EMC EN61326–1
Vibration Random vibration per MIL-PRF-28800F Class 2
Shock 1-meter drop per IEC/EN 61010–1 3rd Edition

Multiple on screen displays Yes
True-RMS AC bandwidth 100 kHz
dBV/dBm Yes
DC mV resolution 1 μV
Megohm range Up to 500 MΩ
Conductance 50.00 nS
Continuity beeper Yes
Battery/fuse access Yes/Yes
Elapse time clock Yes
Time of day clock Yes
Min-max-avg Yes
Duty cycle Yes
Pulse width Yes
Isolated optical interface Yes
Auto/touch hold Yes
Reading memory Yes
Log to PC Yes
Interval/event logging Yes
Logging memory Up to 15,000 readings
