Fluke-117 Electrician's Multimeter with Non-Contact Voltage เครื่องวัดมัลติมิเตอร์แบบไม่สัมผัส

เครื่องวัดมัลติมิเตอร์แบบไม่สัมผัส

เครื่องวัดมัลติมิเตอร์แบบไม่สัมผัส Electrician's Multimeter with Non-Contact Voltage

จุดเด่น

1. The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V
2. True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites
3. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for :
4. - Resistance
5. - Continuity
6. - Frequency
7. - Capacitance
8. - Min/Max/Average
   - For the everyday
   - A digital multimeter designed to be hauled everywhere with you, part of your everyday tools. The 117 is built for demanding applications like:
9. - Commercial buildings
10. - Hospitals
11. - Schools
12. Non-contact voltage detection
13. Automatic AC/DC selection

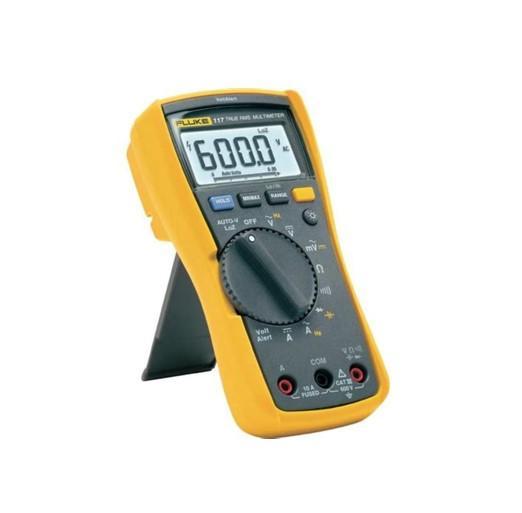

ภาพด้านบน : แสดงลักษณะเครื่องวัดมัลติมิเตอร์ Electrician's Multimeter with Non-Contact Voltage

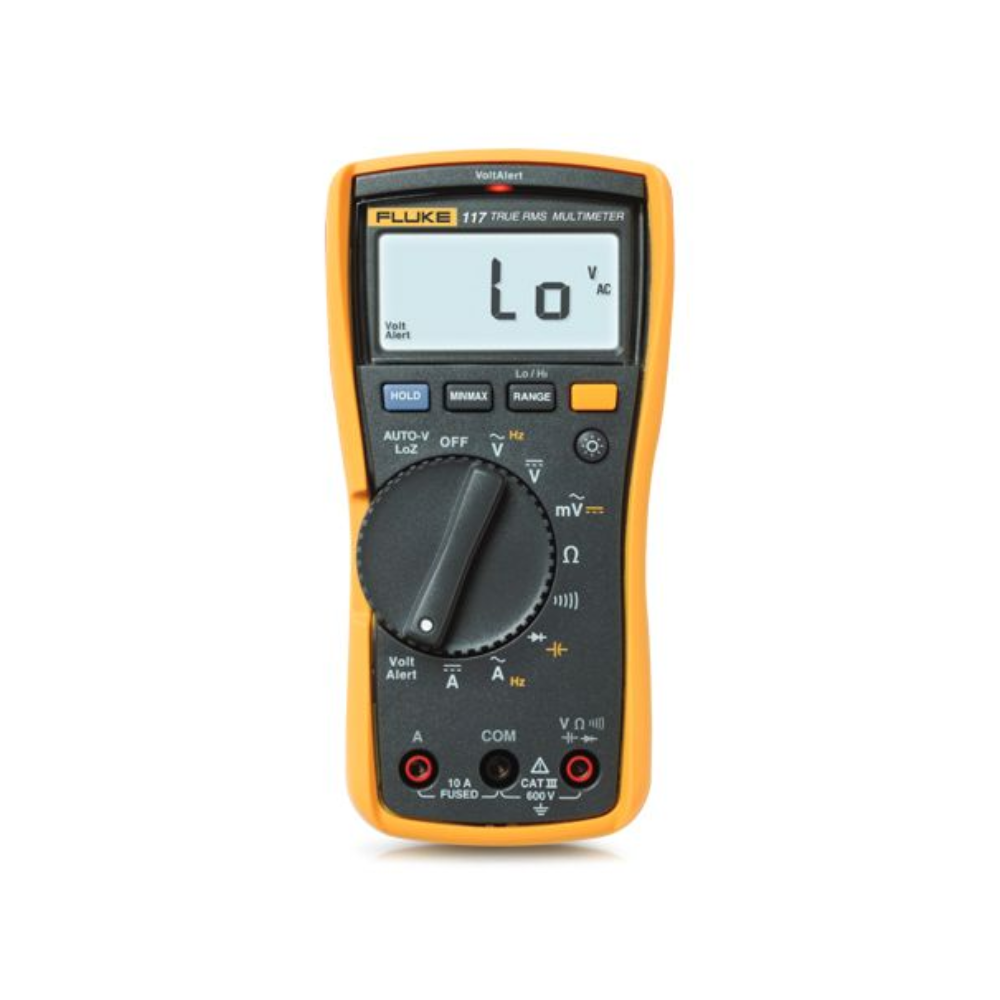

ภาพด้านบน : แสดงลักษณะของการใช้งานเครื่องวัดมัลติมิเตอร์ Electrician's Multimeter with Non-Contact Voltage

ช่วงการวัด

Maximum voltage between any terminal and earth ground : 600 V

Accuracy Specifications

DC millivolts

• Range/resolution : 600.0 mV / 0.1 mV
• Accuracy : ± ([% of reading] + [counts]) : 0.5% + 2

DC volts

• Range/resolution : 6.000 V / 0.001 V
                                   60.00 V / 0.01 V
                                   600.0 V / 0.1 V
• Accuracy : ±([% of reading] + [counts]) : 0.5% + 2

Auto volts

• Range/resolution : 600.0 V / 0.1 V
• Accuracy : 2.0% + 3 (DC, 45 Hz to 500 Hz)
                    4.0% + 3 (500 Hz to 1 kHz)

AC millivolts¹ True RMS

• Range/resolution : 600.0 mV / 0.1 mV
• Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz)
                    2.0% + 3 (500 Hz to 1 kHz)

AC volts¹ True RMS

• Range/resolution : 6.000 V / 0.001 V
                                   60.00 V / 0.01 V
                                   600.0 V / 0.1 V
• Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz)
                    2.0% + 3 (500 Hz to 1 kHz)

Continuity

• Range/resolution : 600 Ω / 1 Ω
• Accuracy : Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.

Ohms

• Range/resolution : 600.0 Ω / 0.1 Ω
                                   6.000 kΩ / 0.001 kΩ
                                   60.00 kΩ / 0.01 kΩ
                                   600.0 kΩ / 0.1 kΩ
                                   6.000 MΩ / 0.001 MΩ
• Accuracy : 0.9% + 1
• Range/resolution : 40.00 MΩ / 0.01 MΩ
• Accuracy : 5% + 2

Diode test

• Range/resolution : 2.00 V / 0.001 V
• Accuracy : 0.9% + 2

Capacitance

• Range/resolution : 1000 nF / 1 nF
                                   10.00 μF / 0.01 μF
                                   100.0 μF / 0.1 μF
                                    9999 μF / 1 μF
                                    100 μF to 1000 μF
• Accuracy : 1.9% + 2
• Range/resolution : > 1000 μF
• Accuracy : 5% + 20%

Lo-Z capacitance

• Range : 1 nF to 500 μF
• Accuracy : 10% + 2 typical

AC amps True RMS (45 Hz to 500 Hz)

• Range/resolution : 6.000 A / 0.001 A
                                   10.00 A / 0.01 A
• Accuracy : 1.5% + 3
                    20 A continuous overload for 30 seconds max

DC amps

• Range/resolution : 6.000 A / 0.001 A   10.00 A / 0.01 A
• Accuracy : 1.0% + 3
                    20 A continuous overload for 30 seconds max

Hz (V or A input)²

• Range/resolution : 99.99 Hz / 0.01 Hz
                                   999.9 Hz / 0.1 Hz
                                   9.999 kHz / 0.001 Hz
                                   50.00 kHz / 0.01 Hz
• Accuracy : 0.1% + 2

1. 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
   2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
   3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
   4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.

Power Supply

ใช้งานร่วมกับแบตเตอรี่ : 9 volt Alkaline, IEC 6LR61

ขนาดเครื่องวัดมัลติมิเตอร์

• ขนาดตัวเครื่อง : 167 mm  x 84 mm x 46 mm
• น้ำหนักรวม : 550 g

อุปกรณ์ที่มาในชุด

• Fluke 115 Field Service Technician's Multimeter x 1
• TL75 Test Leads x 1
• Holster x 1
• Battery 9V x 1
• Users Manual x 1

ข้อมูลจำเพาะ

1. Safety
2. IEC 61010-1: Pollution Degree 2
   IEC 61010-2-033: CAT III 600V
   Fuse for A input : 11 A, 1000 V FAST Fuse (Fluke PN 803293)
   Display : Digital: 6,000 counts, updates 4 per second
   Bar graph : 33 segments, updates 32 per second
   Operating temperature : -10 °C to +50 °C
   Storage temperature : -40 °C to +60 °C
   Battery life : 400 hours typical, without backlight

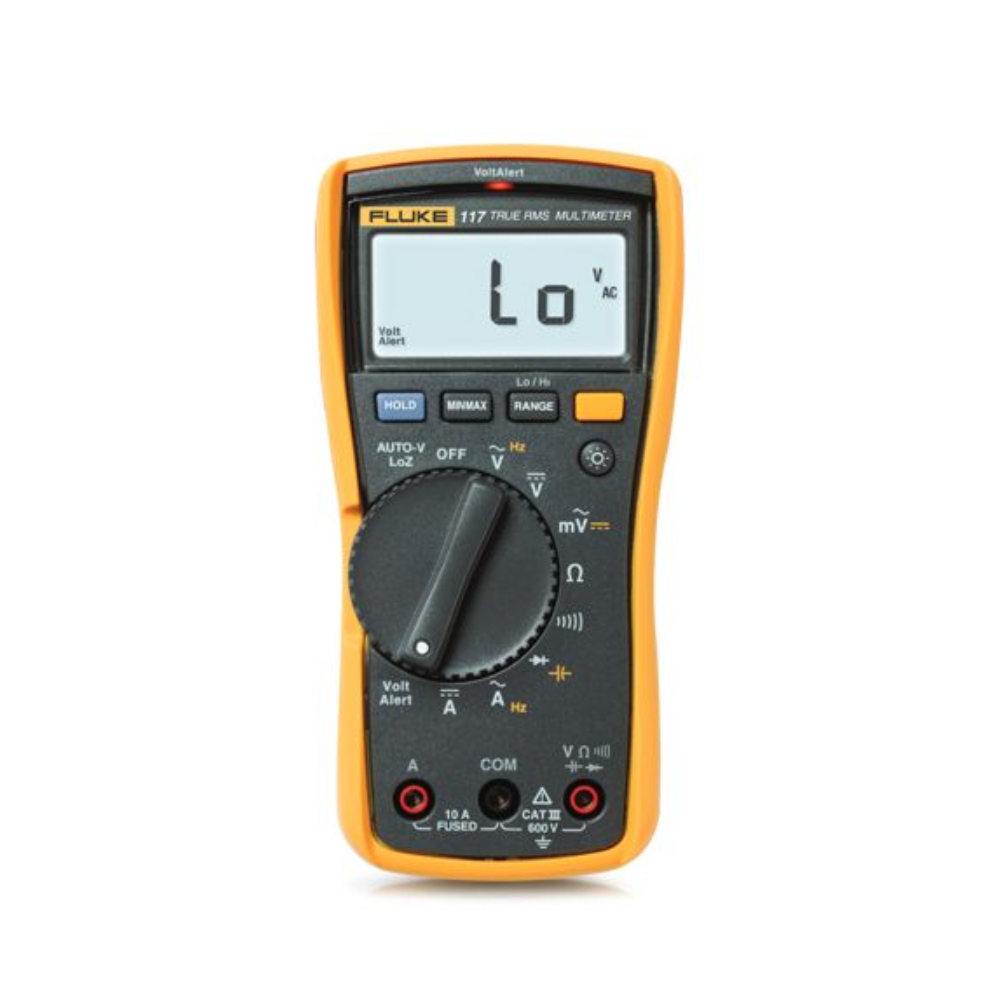

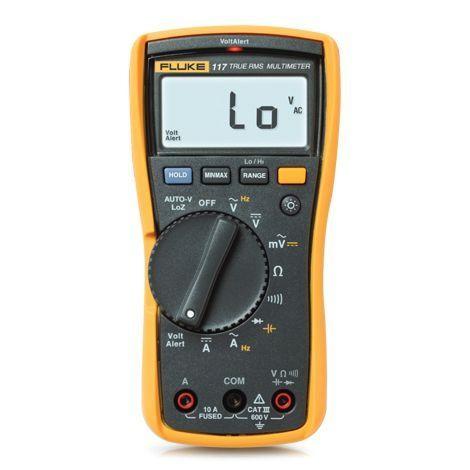

รูปภาพ : เครื่องวัดมัลติมิเตอร์แบบไม่สัมผัส Electrician's Multimeter with Non-Contact Voltage
