Fluke-115 Field Service Technician's Multimeter เครื่องวัดมัลติมิเตอร์สำหรับงานภาคสนามFluke-115 Field Service Technician's Multimeter เครื่องวัดมัลติมิเตอร์สำหรับงานภาคสนาม
FLUKE

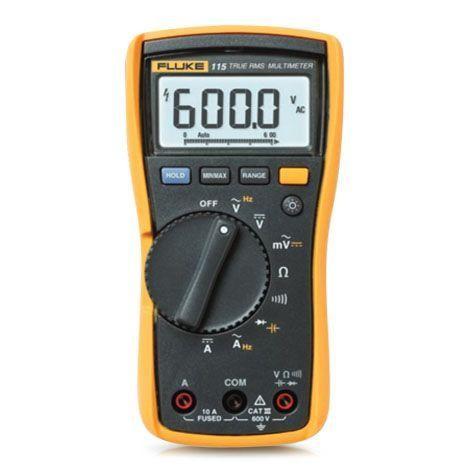

Fluke-115 Field Service Technician's Multimeter เครื่องวัดมัลติมิเตอร์สำหรับงานภาคสนาม

รหัสสินค้า

Fluke-115

฿9,910.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดมัลติมิเตอร์สำหรับงานภาคสนาม TRUE RMS เพิ่มความแม่นยำในการวัด ฟังก์ชั่น Min / Max / AVG หน้าจอแสดงผลขนาดใหญ่พร้อมไฟ backlit มาตรฐาน CAT III 600 V ยี่ห้อ Fluke, USA

เพิ่มคำถาม

Fluke-115 ฟังก์ชั่นการวัด

Field Service Technician's Multimeter เครื่องวัดมัลติมิเตอร์สำหรับงานภาคสนาม

Fluke-115 จุดเด่น

Compact True-rms digital multimeter for field service
Includes: meter, holster, 4 mm PVC-Insulated test lead
Easy one-handed operation of the meter
Min/Max/Average to record signal fluctuations

Fluke-115 ช่วงการวัด

DC millivolts

Range/resolution 600.0 mV / 0.1 mV
Accuracy ± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/resolution

6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V

Accuracy ± ([% of reading] + [counts]): 0.5% + 2

AC millivolts1 True RMS

Range/resolution 600.0 mV / 0.1 mV
Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)

AC volts1 True RMS

Range/resolution

6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V

Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)

Continuity

Range/resolution 600 Ω / 1 Ω
Accuracy

Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
500 μs or longer.

Ohms

Range/resolution

600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ

Accuracy 0.9% + 1
Range/resolution 40.00 MΩ / 0.01 MΩ
Accuracy
5% + 2

Diode test

Range/resolution 2.00 V / 0.001 V
Accuracy 0.9% + 2

Capacitance

Range/resolution

1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF

Accuracy 1.9% + 2
Range/resolution > 1000 μF
Accuracy 5% + 20%

Lo-Z capacitance

Range 1 nF to 500 μF
Accuracy 10% + 2 typical

AC amps True RMS (45 Hz to 500Hz)

Range/resolution

6.000 A / 0.001 A
10.00 A / 0.01 A

Accuracy

1.5% + 3
20 A overload for 30-seconds max

DC amps

Range/resolution

6.000 A / 0.001 A
10.00 A / 0.01 A
Accuracy

1.0% + 3
20 A overload for 30-seconds max

Hz (V or A input)2

Range/resolution

99.99 Hz / 0.01 Hz
999.9 Hz / 0.01 Hz
9.999 kHz / 0.001 kHz
50.00 kHz / 0.01 kHz
Accuracy 0.1% + 2


1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Frequency is AC coupled, 5Hz to 30 kHz for AC voltage.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
2. Temperature Range/Resolution: -40℉ to 752℉ / 0.2℉.


Fluke-115 Power Supply

9 volt Alkaline, IEC 6LR61

Fluke-115 ขนาดสินค้า

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
550 g

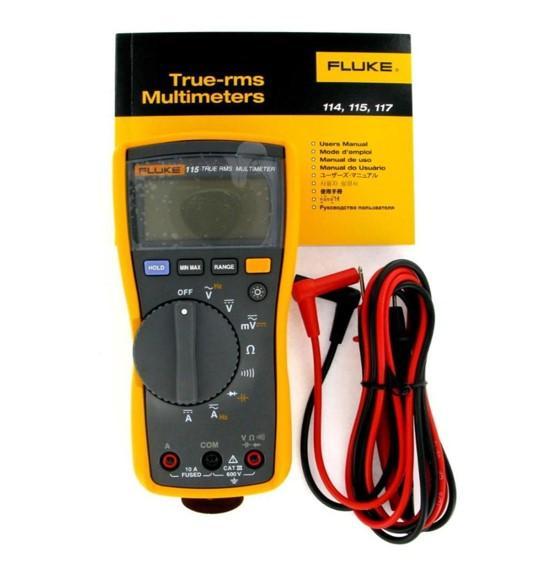

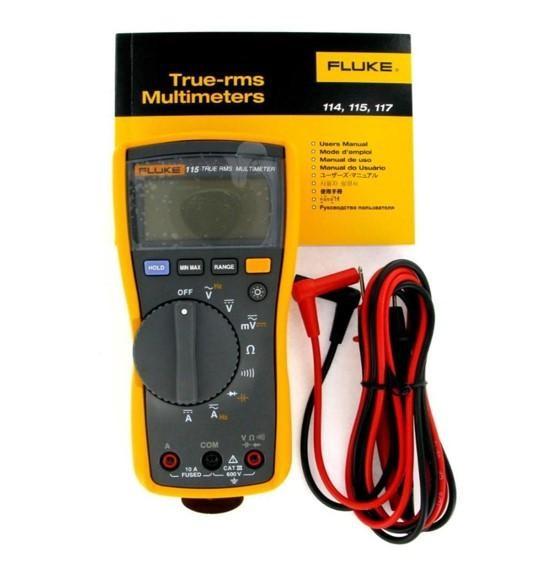

Fluke-115 อุปกรณ์ที่มาในชุด


Fluke-115 Field Service Technician's Multimeter เครื่องวัดมัลติมิเตอร์สำหรับงานภาคสนาม

Fluke-115 ข้อมูลจำเพาะ

Maximum voltage between any terminal and earth ground 600 V
Safety

IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
Display Digital: 6,000 counts, updates 4 per second
Bar graph 33 segments, updates 32 per second
Operating temperature -10℃ to + 50℃
Storage temperature -40℃ to + 60℃

Battery life 400 hours typical, without backlight
