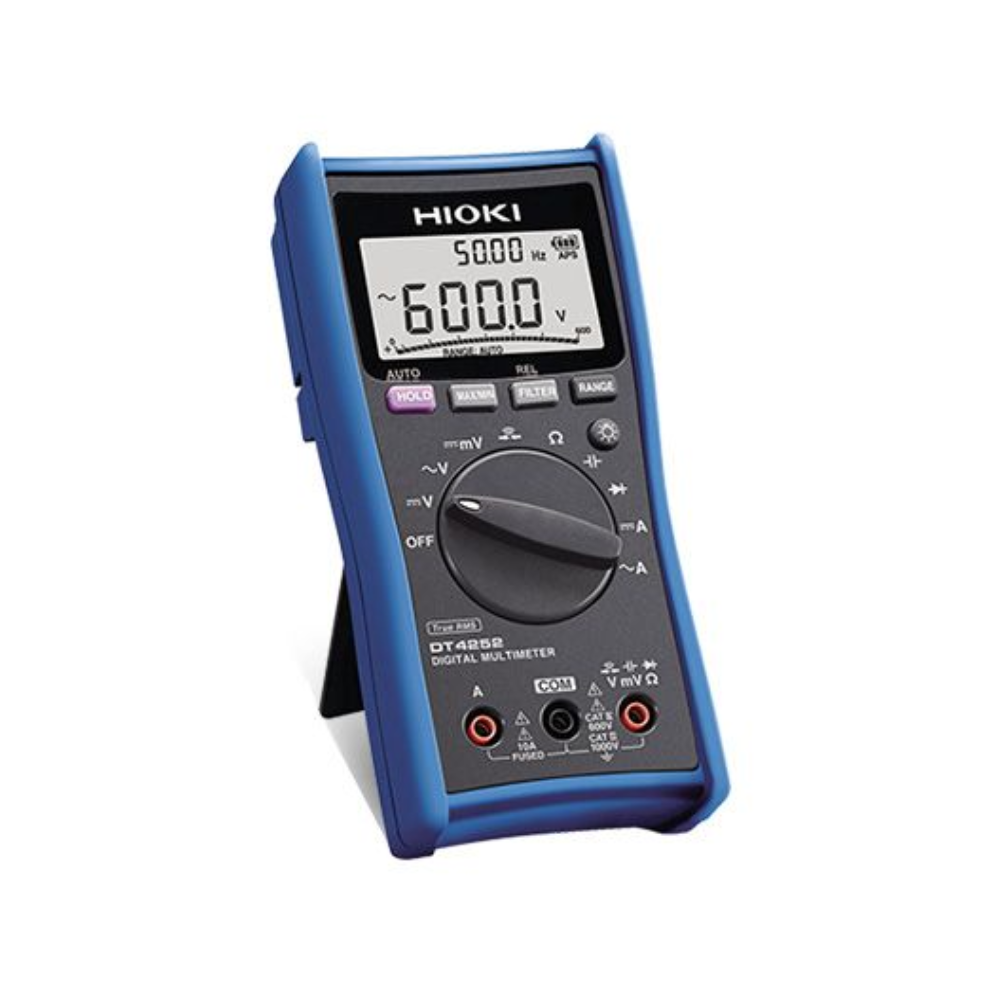

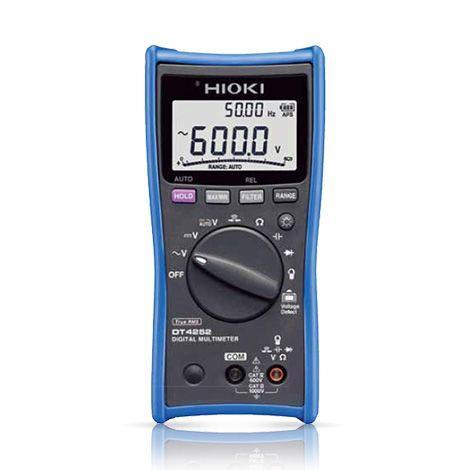

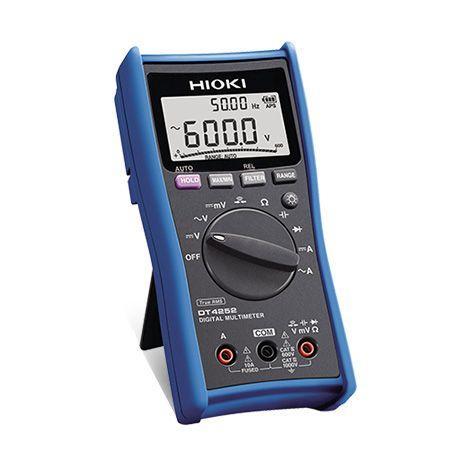

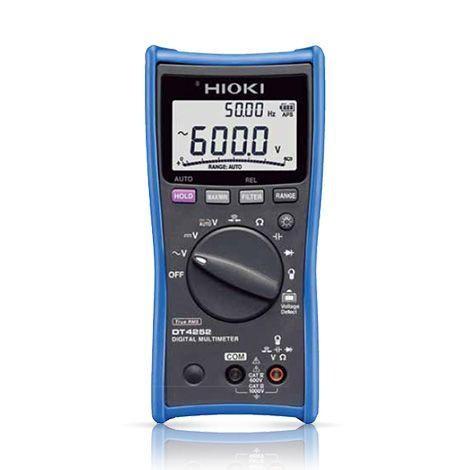

Hioki DT4252 ดิจิตอลมัลติมิเตอร์ True RMS (10A Direct Input)

DT4252 | ฟังก์ชั่นการวัด

ดิจิตอลมัลติมิเตอร์ True RMS (10A Direct Input)

DT4252 | จุดเด่น

มีอัตราการตอบสนองที่รวดเร็ว

มีความปลอดภัยทางไฟฟ้า

มีความแม่นยำ General purpose testing, with ±0.3% DCV และ Direct current input and wide 40 Hz to 1kHz bandwidth

มาตรฐาน CAT-IV 600V, CAT-III 1000V

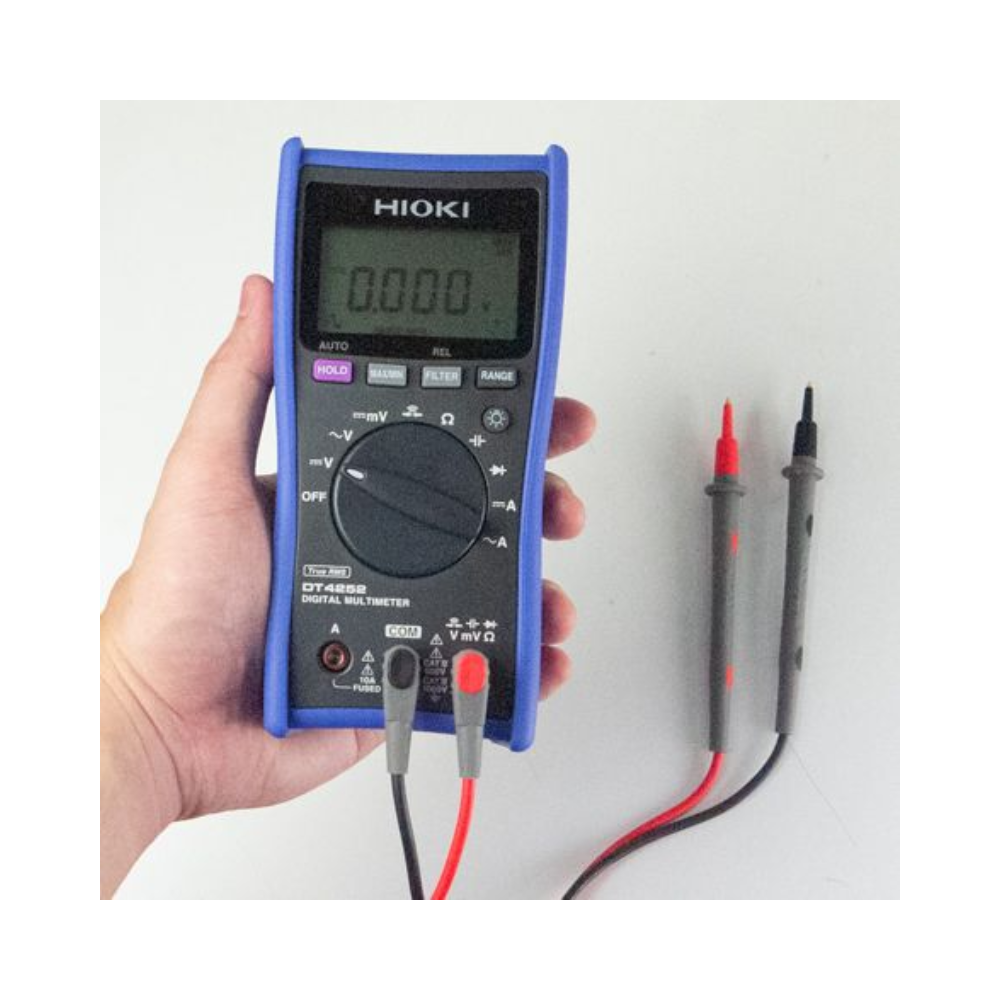

ตัวเครื่องมีขนาดกระทัดรัด

ตัวเครื่องมีขาตั้งด้านหลัง

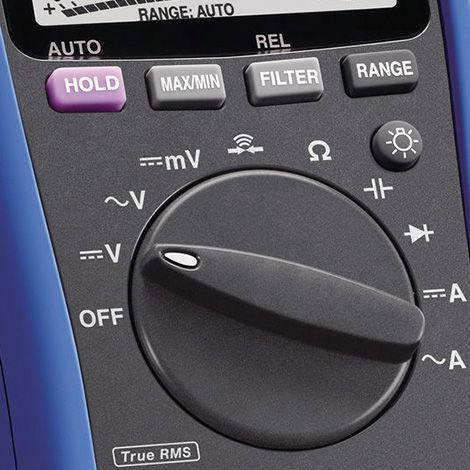

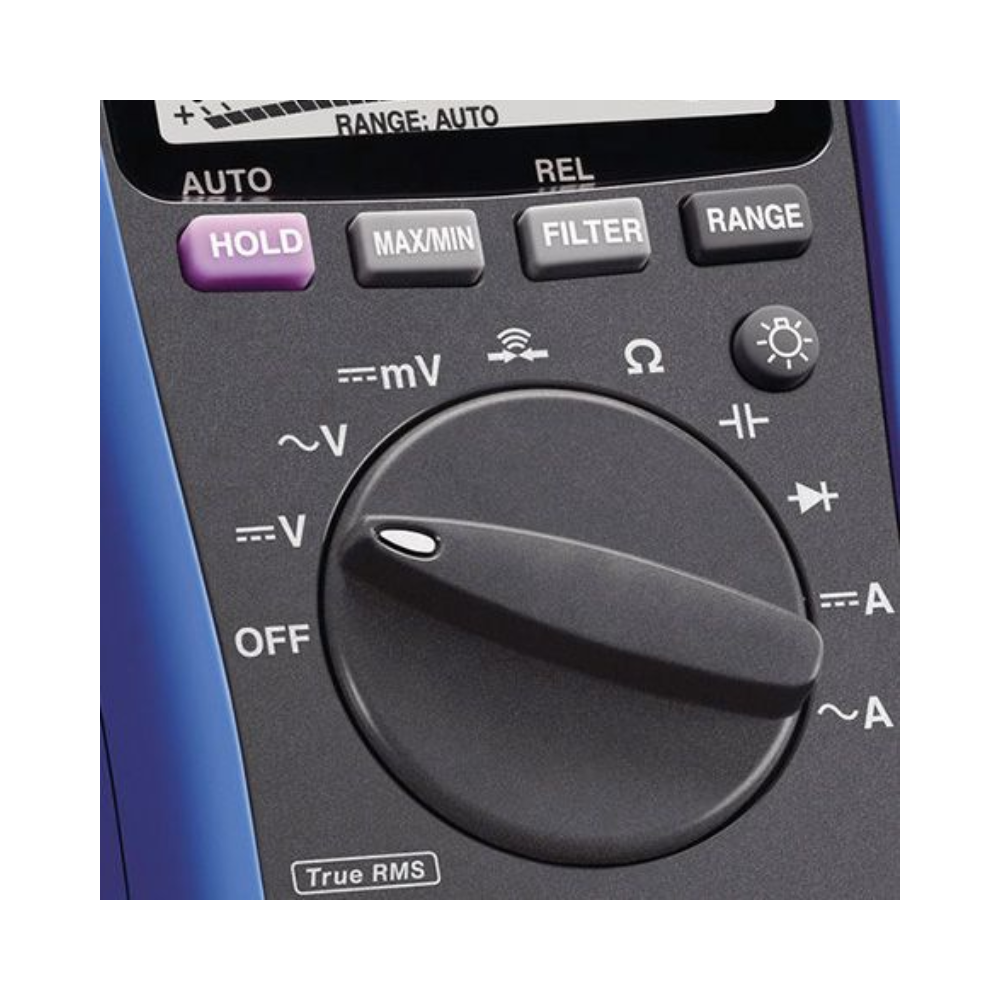

สามารถวัดค่า DC/AC Voltage , DC/AC current, Frequency, Resistance, Capacitance, Continuity check, Diode test

DT4252 | ช่วงการวัด

DC Voltage  600.0 mV to 1000 V, 5 ranges
Basic accuracy: ±0.3 % rdg. ±5 dgt.

AC Voltage 6.000 V to 1000 V, 4 ranges
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)

Resistance  600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.7 % rdg. ±5 dgt.

DC current 6.000 A / 10.00 A, 2 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.

AC current 6.000 A / 10.00 A, 2 ranges
Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt.
(True RMS, crest factor 3, 40 Hz to 1 kHz)

C (capacitance) 1.000 μF to 10.00 mF, 5 ranges
Basic accuracy: ±1.9 % rdg. ±5 dgt.

Frequency AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V)
Basic accuracy: ±0.1 % rdg. ±1 dgt.

Continuity check Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more
Response time: 0.5 ms or more

Diode test Open terminal voltage: 5.0 V or less
Testing current 0.5 mA or less
Threshold of forward voltage: 0.15 V to 1.5 V

DT4252 | Power Supply

LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)

DT4252 | ขนาดสินค้า

84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)

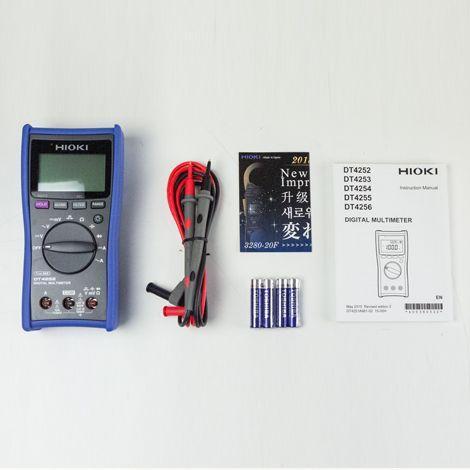

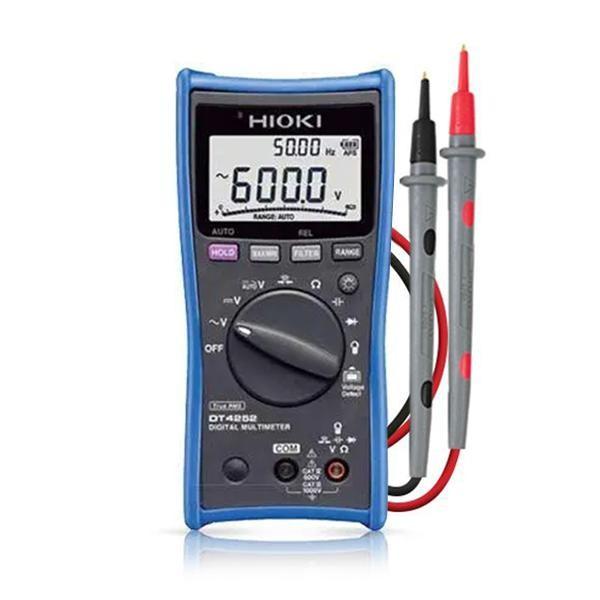

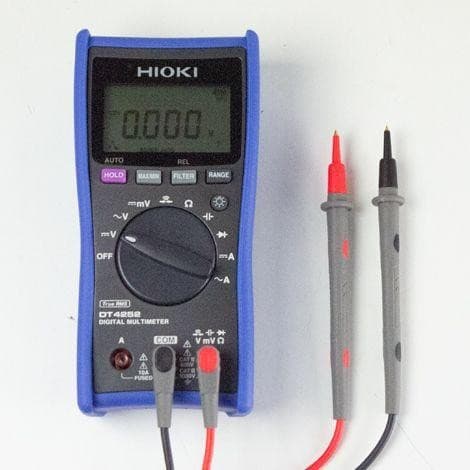

DT4252 | อุปกรณ์ที่มาในชุด

ตัวเครื่อง

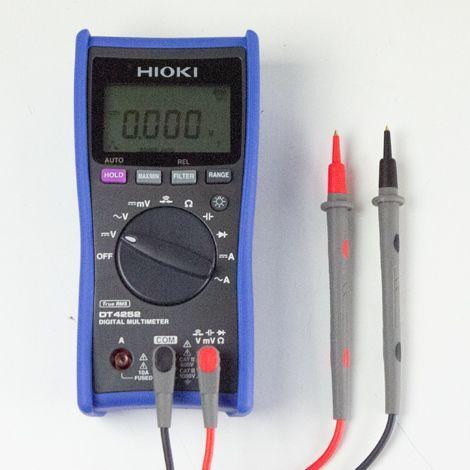

Test lead

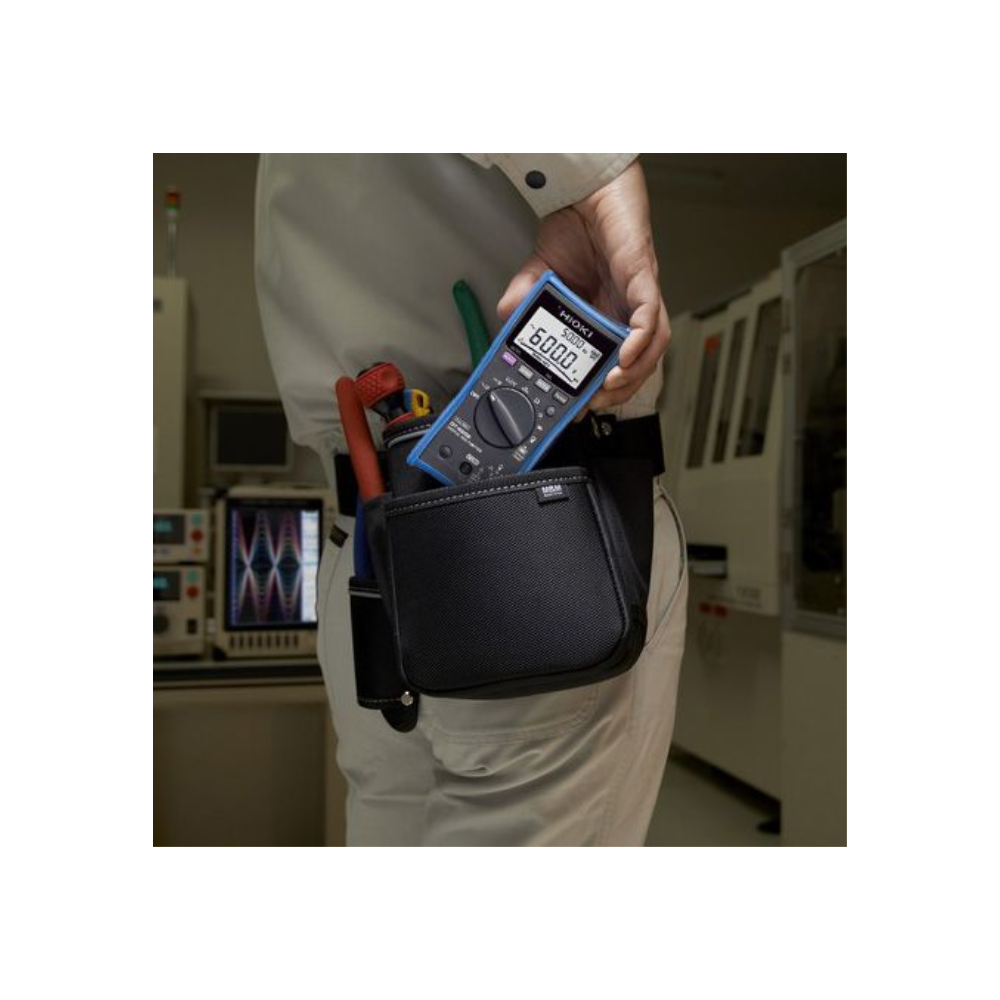

Holster

แบตเตอรี่ Alkaline LR03 ×4

คู่มือ

DT4252 | อุปกรณ์เสริม

TEST LEAD L9207-10

TEST LEAD L9300

DC HIGH VOLTAGE PROBE P2000

SMALL ALLIGATOR CLIP SET L4934

CONTACT PIN SET L4933

EXTENSION CABLE SET L4931

BREAKER PIN SET L4939

TEST PIN SET L4938

BUS BAR CLIP SET L4936

MAGNETIC ADAPTER SET L4937

TEST PIN SET L4932

CONNECTION CABLE SET L4930

ALLIGATOR CLIP SET L4935

GRABBER CLIP L9243

CARRYING CASE C0202

COMMUNICATION PACKAGE (USB) DT4900-01

CARRYING CASE C0201

MAGNETIC STRAP Z5020

DT4252 | ข้อมูลจำเพาะ

DC Voltage range 600.0 mV to 1000 V, 5 ranges
Basic accuracy: ±0.3 % rdg. ±5 dgt.

AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)

AUTO AC/DCV N/A

Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt.

DC Current range 6.000 A / 10.00 A, 2 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.

AC Current range 6.000 A / 10.00 A, 2 ranges,
Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt.
(True RMS, crest factor 3, 40 Hz to 1 kHz)

AC Current range (use with Clamp on probes) N/A

Voltage detection (50/60 Hz) N/A

Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.

Frequency range AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V)
Basic accuracy: ±0.1 % rdg. ±1 dgt.

Continuity check Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more
Response time: 0.5 ms or more

Diode test Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V

Other functions Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)

Display Main and sub displays: 4-digits LCD, max. 6000 digits, bar graph

Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )

Power supply LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)

Dimensions and mass 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)
