CD732 ฟังก์ชั่นการวัด

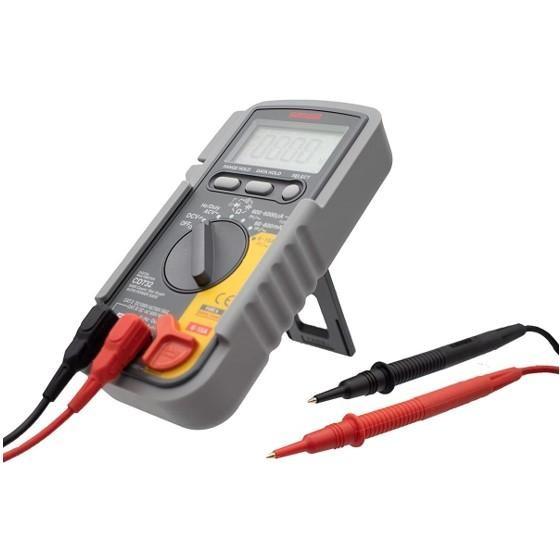

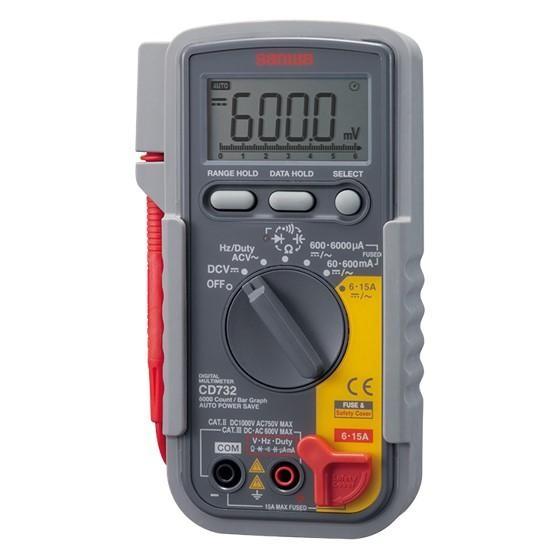

ดิจิตอลมัลติมิตเตอร์แบบพกพา
CD732 จุดเด่น
6000 counts
Using fire-retardand materials for main unit case and circuit board
Wide-range capacitance measurement (0.01nF to 3999μF)
Safety cover for 6・15A terminal
Protective holster with wall hanger and lead holster
Auto power save (16mn.) (cancelable)
CD732 ช่วงการวัด
DCV
Measuring range 600m/6/60/600/1000V
Best accuracy ±(0.5%+2)
Resolution 0.1mV
Input impedance 10M～100MΩ
ACV
Measuring range 6/60/600/750V
Best accuracy ±(1.2%+5)
Resolution 0.001V
Input impedance 10M～11MΩ
DCA
Measuring range 600μ/6000μ/60m/600m/6/15A
Best accuracy ±(1.5%+3)
Resolution 0.1μA
ACA
Measuring range 600μ/6000μ/60m/600m/6/15A
Best accuracy ±(1.8%+5)
Resolution 0.1μA
Resistance
Measuring range 600/6k/60k/600k/6M/60M
Best accuracy ±(1.2%+4)
Resolution 0.1Ω
Capacitance
Measuring range 40n/400n/4μ/40μ/400μ/4000μ
Best accuracy ±(5.0%+6)
Resolution 0.01nF
Frequency
Measuring range 9.999/99.99/999.9/9.999k/99.99k
Best accuracy ±(0.5%+3)
Resolution 0.001Hz
Duty cycle
Measuring range 20～80%
Best accuracy ±（0.5%+5)
Continuity
Buzzer sounds and LED lights up at between 10Ω～60Ω Open voltage:approx.0.63V
Diode test
Open voltage:approx.2.7V
CD732 Power Supply
R6(1.5V)x2
CD732 ขนาดสินค้า
H167×W90×D48mm/320g(including holster)

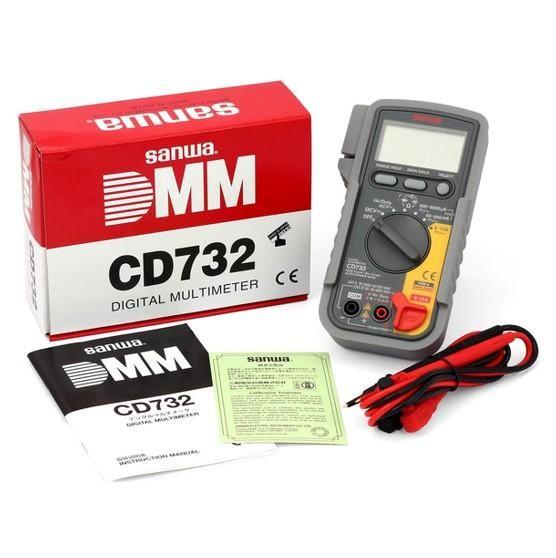

CD732 อุปกรณ์ที่มาในชุด
Test lead(TL-25a)
Holster(H-70)
Instruction manual
CD732 อุปกรณ์เสริม
HV-60 Test lead: High voltage measurement probe
CL-14 Adapter: Alligator clip
CL-15a Adapter: Alligator clip
TL-9IC Adapter : IC clip
CL-DG3a Adapter: Alligator clip
TL-A7M2 Adapter: Pin type adapter
TL-A4 Adapter: Banana jack
C-77 Carrying case
CD732 ข้อมูลจำเพาะ
Display
numeral display 6000
bar graph 61 segments
Sampling rate 3 times/sec., 30 times/sec.,for bar graph
Bandwidth 45～500Hz
Fuse
0.4A/1000V 30kA Φ6.3×32mm
16A/1000V 30kA Φ10×38mm
Battery life Approx.400h (manganese battery) at DCV range
