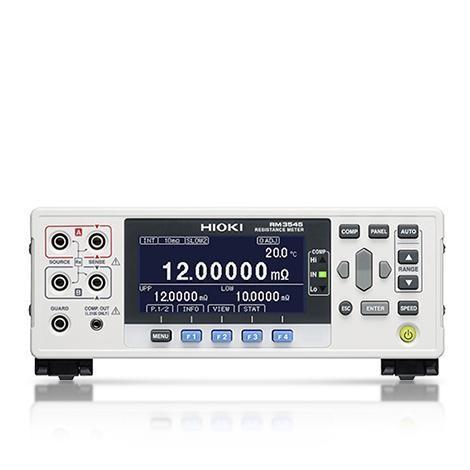

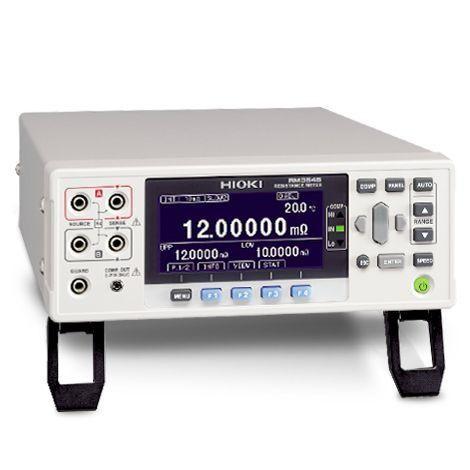

เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะ ช่วงการวัดกว้างตั้งแต่ 0.00µΩ ถึง 1200MΩ Interface: USB, RS-232C, External I/O, Multiplexer ความแม่นยำสูง 0.006% HIOKI, Japan
Index
RM3545 | ฟังก์ชั่นการวัด
ค่าความต้านทาน
RM3545 | จุดเด่น
0.006% basic accuracy, 0.01 μΩ max. resolution, 1A max. testing current
Measure from 0.00 μΩ (testing current 1 A) to 1200 MΩ
Low-power resistance measurement with an open voltage not exceeding 20 mV
High-speed, comprehensive productivity support delivers decisions in as little as 2.0 ms from start to finish
RM3545 | ช่วงการวัด
10 mΩ (12.00000 mΩ display Max., 10 nΩ resolution) to 1000 MΩ range (1200.0 MΩ display Max., 100 kΩ resolution), 12 steps
[LP ON] 1000 mΩ (1200.00 mΩ display Max., 10 µΩ resolution) to 1000 Ω range (1200.00 Ω display Max., 10 mΩ resolution), 4 steps
Measurement accuracy: ±0.006 % rdg. ±0.001 % f.s.
RM3545 | Power Supply
100 V to 240 V AC, 50 Hz/60 Hz, Rated power consumption: 40 VA max.
RM3545 | ขนาดสินค้า
215 mm (8.46 in) W × 80 mm (3.15 in) H × 306.5 mm (12.07 in) D
[RM3545/RM3545-01] 2.5 kg (88.2 oz), [RM3545-02] 3.2 kg (112.9 oz)
RM3545 | อุปกรณ์ที่มาในชุด
Power cord ×1
Clip type lead L2101 ×1
temperature sensor Z2001 ×1
Male EXT I/O connector ×1
Instruction manual ×1
Application disc ×1
USB cable (A-to-B type) ×1
Spare fuse ×1
RM3545 | อุปกรณ์เสริม
Measurement Leads / Input scanner
4-TERMINAL LEAD L2104
PIN TYPE LEAD L2103
TEMPERATURE SENSOR Z2001
LED COMPARATOR ATTACHMENT L2105
TIP PIN 9772-90
MULTIPLEXER UNIT Z3003
PIN TYPE LEAD L2100
CLIP TYPE LEAD L2101
PIN TYPE LEAD L2102
TIP PIN 9770-90
TIP PIN 9771-90
FOUR-POINT ARRAY PROBE RM9010-01
FOUR-POINT ARRAY PROBE RM9010-02
PC Communication
RS-232C CABLE 9637
GP-IB CONNECTOR CABLE 9151-02
Compatible products
SWITCH MAINFRAME SW1001
SWITCH MAINFRAME SW1002
RM3545 | ข้อมูลจำเพาะ
Resistance range: 10 mΩ (12.00000 mΩ display Max., 10 nΩ resolution) to 1000 MΩ range (1200.0 MΩ display Max., 100 kΩ resolution), 12 steps
[LP ON] 1000 mΩ (1200.00 mΩ display Max., 10 µΩ resolution) to 1000 Ω range (1200.00 Ω display Max., 10 mΩ resolution), 4 steps
Measurement accuracy: ±0.006 % rdg. ±0.001 % f.s.
Testing current: 1 A DC to 1 µA or less [LP ON] 1 mA to 5 μA DC
Open-terminal voltage: 20 V DC (10 kΩ range or more), 5.5 V DC max. (1000 Ω range or less)
[LP ON] 20 mV DC max.
Temperature measurement: -10.0°C to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2001 and RM3545 combined accuracy), -99.9°C to 999.9°C (analog input)
Measurement speed: Representative value: FAST (2.2 ms) / MED (50 Hz: 21 ms, 60 Hz: 18 ms) / SLOW1 (102 ms) / SLOW2 (202 ms)
10 mΩ range: FAST (41 ms) / MED (50 Hz: 61 ms, 60 Hz: 58 ms) / SLOW1 (141 ms) / SLOW2 (241 ms)
Functions: Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/ REF%), BIN, key-lock (OFF, menu lock, all lock), display digit count selection function (7- digit/ 6-digit/ 5-digit), automatic power supply frequency settings (AUTO/ 50Hz/ 60Hz), scaling, judgment sound setting, auto hold, averaging, statistical calculations, panel store/panel load, D/A output.
Multiplexer: [Only RM3545-02] Support Unit: Z3003 (Install up to 2 units)
Communication interfaces: Select from GP-IB (RM3545-01 only), RS-232C, Printer (RS-232C), or USB . Remote function, communications monitor function, data output function, memory (50)
Power supply: 100 V to 240 V AC, 50 Hz/60 Hz, Rated power consumption: 40 VA max.
Dimensions and mass: 215 mm (8.46 in) W × 80 mm (3.15 in) H × 306.5 mm (12.07 in) D
[RM3545/RM3545-01] 2.5 kg (88.2 oz), [RM3545-02] 3.2 kg (112.9 oz)
Included accessories: Power cord ×1, Clip type lead L2101 ×1, temperature sensor Z2001 ×1, Male EXT I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1
