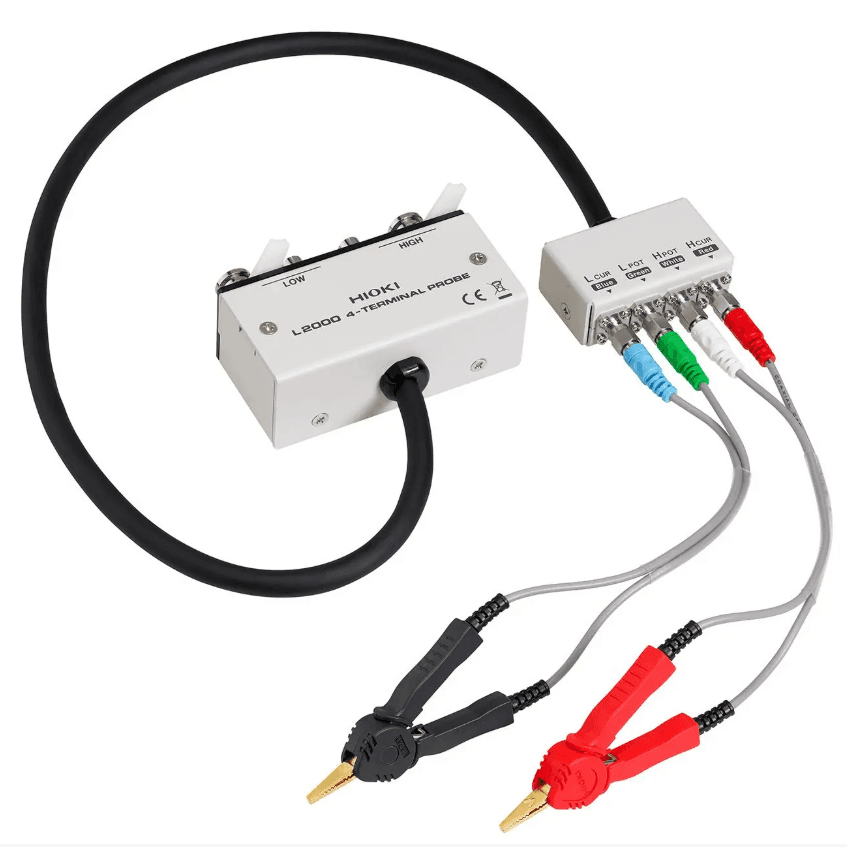

HIOKI-L2000 4-TERMINAL PROBE
L2000
4-Terminal Probe with Kelvin Clamps for Hioki LCR and Impedance Meters for precision impedance measurements, DC to 8 MHz, Kelvin Clamps with gold-plated contacts, suitable for wire diameters up to 5 mm
คำถามที่พบบ่อย
มีข้อสงสัยเกี่ยวกับสินค้า/บทความ สอบถามชุมชนหรือผู้เชี่ยวชาญของเรา

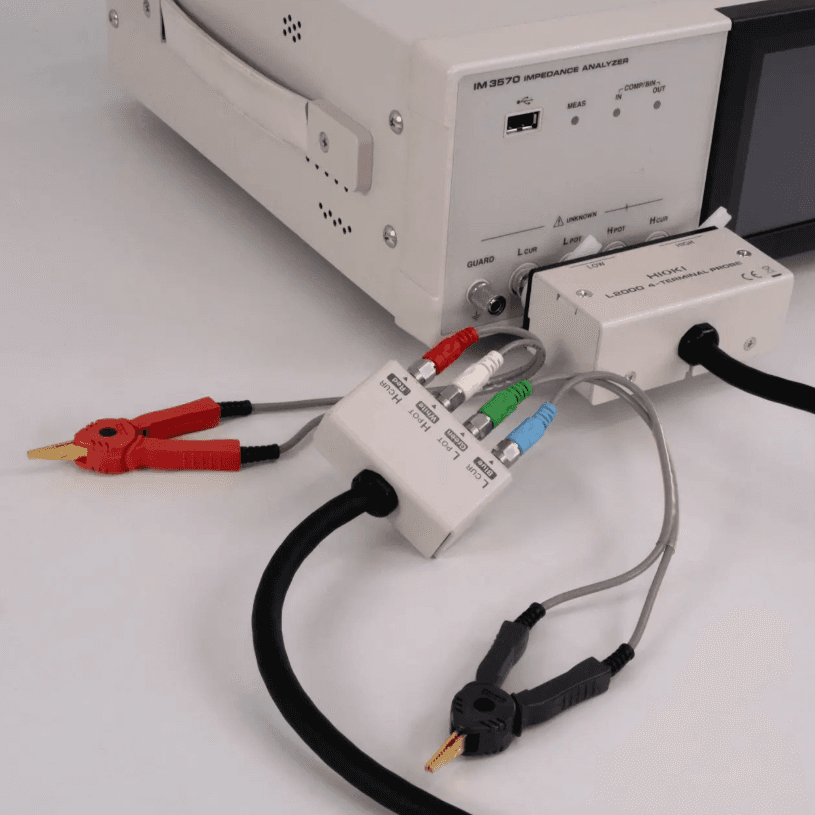

The L2000 4-Terminal Probe allows lead parts and other measurement objects to be connected by cable and then measured.
Various shaped parts can be measured with the four terminals.
Specifications
Measurable frequency range | DC to 8 MHz (depending on the frequency of the instrument to be connected.) |
Maximum rated voltage | +42 Vpeak (AC+DC) |
Maximum rated current | +1 Apeak (AC+DC) |
Measurable terminal diameter | 5 mm (0.20") or less |
Overall length | Approx. 1000 mm (39.37") (excluding connection terminals) |
Mass | Approx. 315 g (11.1 oz.) |
Cable used | 50 Q coaxial cable |
Structure | 4-terminal-pair structure |
Terminal processing | Gold-plated |
Operating temperature and humidity | 0"C to 40*C (32 to 104 F), 80%RH or less (non-condensating) |
Storage temperature and humidity | -10 C to 50*C (14 to 122 F), 80%RH or less (non-condensating) |
Operating environment | Indoors, Pollution degree 2, altitude up to 2000 m (6562 ft.) |
