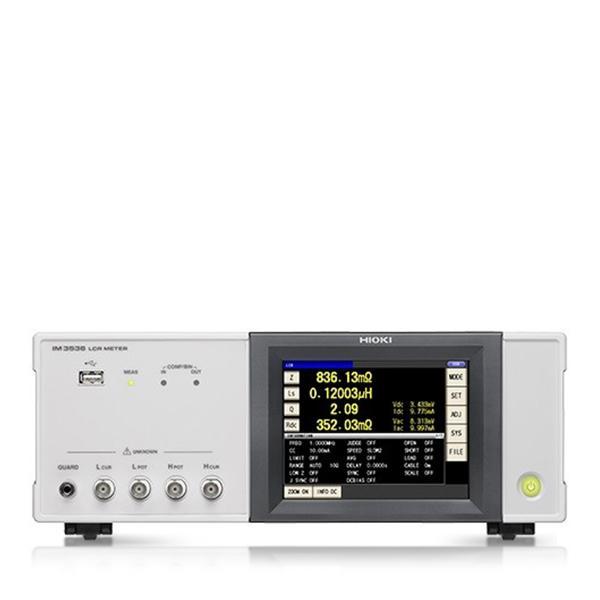

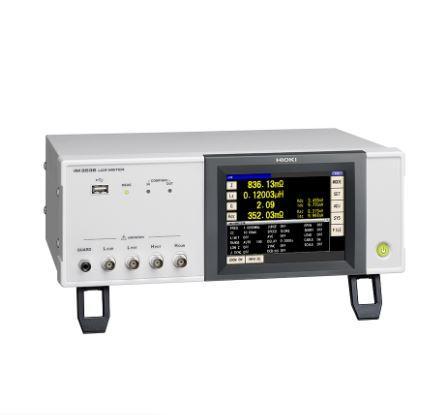

เครื่องวัดแอลซีอาร์ ที่รองรับความถี่ในการทดสอบ DC, 4 Hz to 8 MHz LCR, Transformer testing, Continuous testing modes หน้าจอ TFT 5.7" touch-screen ยี่ห้อ Hioki, Japan
Index
IM3536 | ฟังก์ชั่นการวัด
Measurement modes: LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Measurement parameters: Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε
IM3536 | จุดเด่น
DC, 4 Hz to 8 MHz measurement frequency
High-speed measurement of 1 ms (fastest time)
High-precision measurement of ±0.05% rdg. (representative value)
Guaranteed accuracy range from 1 mΩ, low-impedance measurement with unmatched repeatability
DC bias function: Measure under conditions simulating actual use or in accordance with industry standards
Exceptional specifications and cost-performance for a wide range of applications, from R&D to production lines
IM3536 | ช่วงการวัด
Measurement range: 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
IM3536 | Power Supply
100 to 240 V AC, 50/60 Hz, 50 VA max.
IM3536 | ขนาดสินค้า
330 mm (12.99 in) W × 119 mm (4.69 in) H × 230 mm (9.06 in) D, 4.2 kg (148.1 oz)
IM3536 | อุปกรณ์ที่มาในชุด
Power cord ×1
Instruction manual ×1
LCR application disc (Communications user manual) ×1
IM3536 | อุปกรณ์เสริม
Probe and Test fixtures
SMD TEST FIXTURE 9699
4-TERMINAL PROBE 9140-10
SMD TEST FIXTURE 9677
CONTACT TIPS IM9902
TEST FIXTURE 9261-10
DC BIAS CURRENT UNIT 9269-10
DC BIAS VOLTAGE UNIT 9268-10
4-TERMINAL PROBE 9500-10
CONTACT TIPS IM9901
PINCHER PROBE L2001
4-TERMINAL PROBE L2000
SMD TEST FIXTURE 9263
TEST FIXTURE 9262
SMD TEST FIXTURE IM9100
SMD TEST FIXTURE IM9110
When using the 9268-10 or 9269-10, external constant-voltage and constant-current sources are required.
PC communication
RS-232C CABLE 9637
GP-IB CONNECTOR CABLE 9151-02
IM3536 | ข้อมูลจำเพาะ
Measurement modes: LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Measurement parameters: Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε
Measurement range: 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Display range: Z: 0.00 m to 9.99999 GΩ, Y: 0.000 n to 9.99999 GS, θ: ± (0.000° to 180.000°), Q: ± (0.00 to 9999.99), Rdc: ± (0.00 m to 9.99999 GΩ),
D: ± (0.00000 to 9.99999), Δ%: ± (0.000 % to 999.999 %), or other
Basic accuracy: Z ±0.05% rdg. θ: ±0.03° (representative value, Measurable range: 1 mΩ to 200 MΩ)
Measurement frequency: Hz to 8 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement signal level:
[Normal mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 5 Vrms (maximum 50 mArms)
1.0001 MHz to 8 MHz: 10 mV to 1 Vrms (maximum 10mArms)
[Low impedance high accuracy mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 1 Vrms (maximum 100 mArms)
[Normal mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 50 mArms (maximum 5 Vrms)
1.0001 MHz to 8 MHz: 10 μA to 10 mArms (maximum 1 Vrms)
[Low impedance high accuracy mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 100 mArms (maximum 1 Vrms)
[DC resistance measurement]
Measurement signal level: Fixed at 1 V
DC bias measurement: Generating range: DC voltage 0 V to 2.50 V (10 mV resolution)
In low Z high accuracy mode: 0 V to 1 V (10 mV resolution)
Output impedance: Normal mode: 100 Ω, Low impedance high accuracy mode: 10 Ω
Display: 5.7-inch color TFT with touch panel
Functions: Comparator, BIN measurement (10 categories for 2 measurement parameters), Trigger function, Open/short compensation, Contact check, Panel loading/saving, Memory function

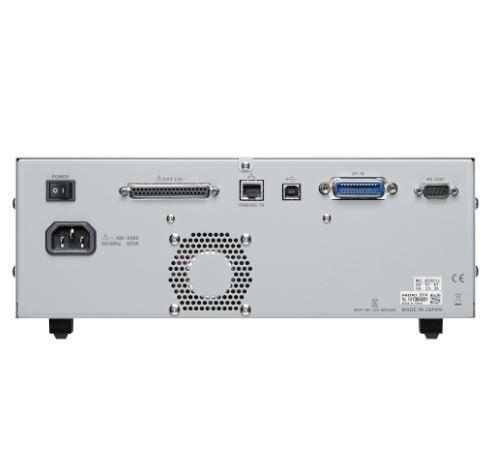

Interfaces: EXT. I/O( HANDLER) ,USB, USB flash drive, LAN, GP-IB, RS-232C, BCD
