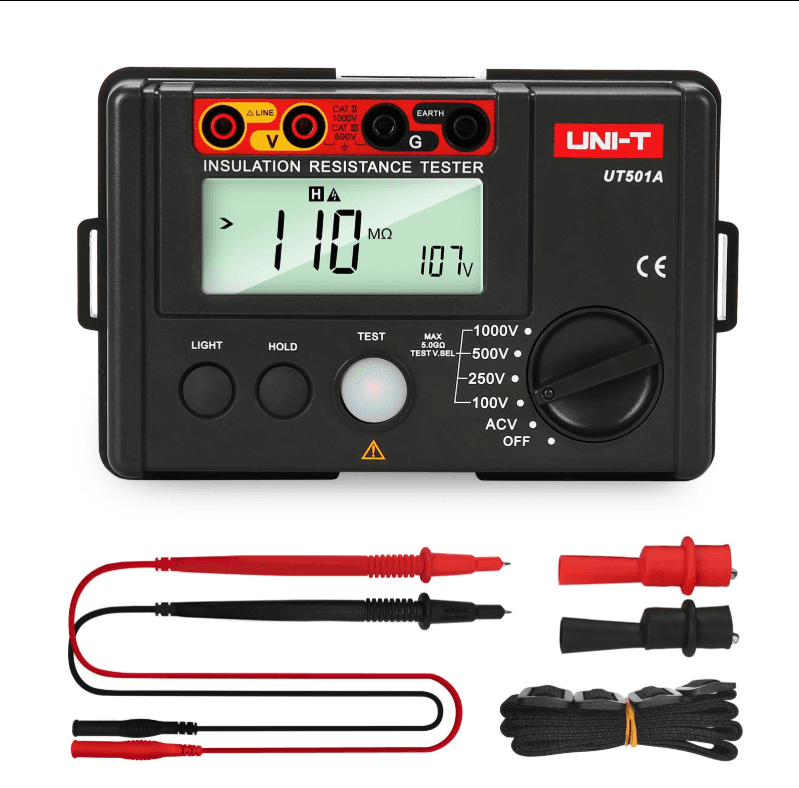

The UNI-T UT501A is a versatile digital insulation resistance tester designed for professionals in electrical maintenance, industrial applications, and field diagnostics. It offers a comprehensive range of features suitable for testing insulation resistance, AC voltage, and low resistance, making it ideal for electricians, HVAC technicians, and general maintenance personnel.
Introduction to the UNI-T UT501A
The UNI-T UT501A is a professional-grade insulation tester that offers reliable performance for both industrial and commercial applications. This device is widely appreciated for its precision, ease of use, and rugged build quality, making it an essential tool for electricians and maintenance engineers.
Key Features of the UNI-T UT501A
Versatile Testing Ranges: The UT501A provides multiple voltage testing options from 500V to 1000V, enabling accurate measurement of insulation resistance.
High-Accuracy Results: With a resistance measuring range up to 5GΩ, this tester ensures precise readings, essential for safety inspections and troubleshooting.
User-Friendly Design: Designed with a clear LCD backlit display and robust casing, the UT501A is perfect for both field and workshop environments.
Safety Features: Built-in voltage protection and robust insulation ensure both user safety and instrument integrity.
How to Use the UNI-T UT501A
Here is a step-by-step guide for using the UT501A insulation tester:
Ensure the device to be tested is powered off.
Connect the test leads to the appropriate terminals on the UT501A.
Set the desired test voltage using the selector switch.
Press the test button to initiate the measurement.
Read the insulation resistance value displayed on the LCD screen.
Once the measurement is recorded, carefully disconnect the test leads.
"Using the UNI-T UT501A can help prevent electrical hazards by identifying weaknesses in insulation before they become critical." - Electricians Weekly
Application Scenarios
The UNI-T UT501A is suitable for a variety of applications such as:
Electrical Maintenance: Regular testing of insulation resistance in motors, transformers, and electrical panels.
Field Sectors: Power utilities, telecommunications, and manufacturing industries.
Safety Assurance: Post-installation inspection to ensure compliance with electrical standards.
Conclusion
In conclusion, the UNI-T UT501A is an invaluable tool for professionals needing accurate and reliable insulation resistance measurements. Its robust design, coupled with comprehensive features, makes it an excellent choice for ensuring safety and efficiency across various electrical applications.
For more detailed technical support and customer service, visit the official website of UNI-T.
