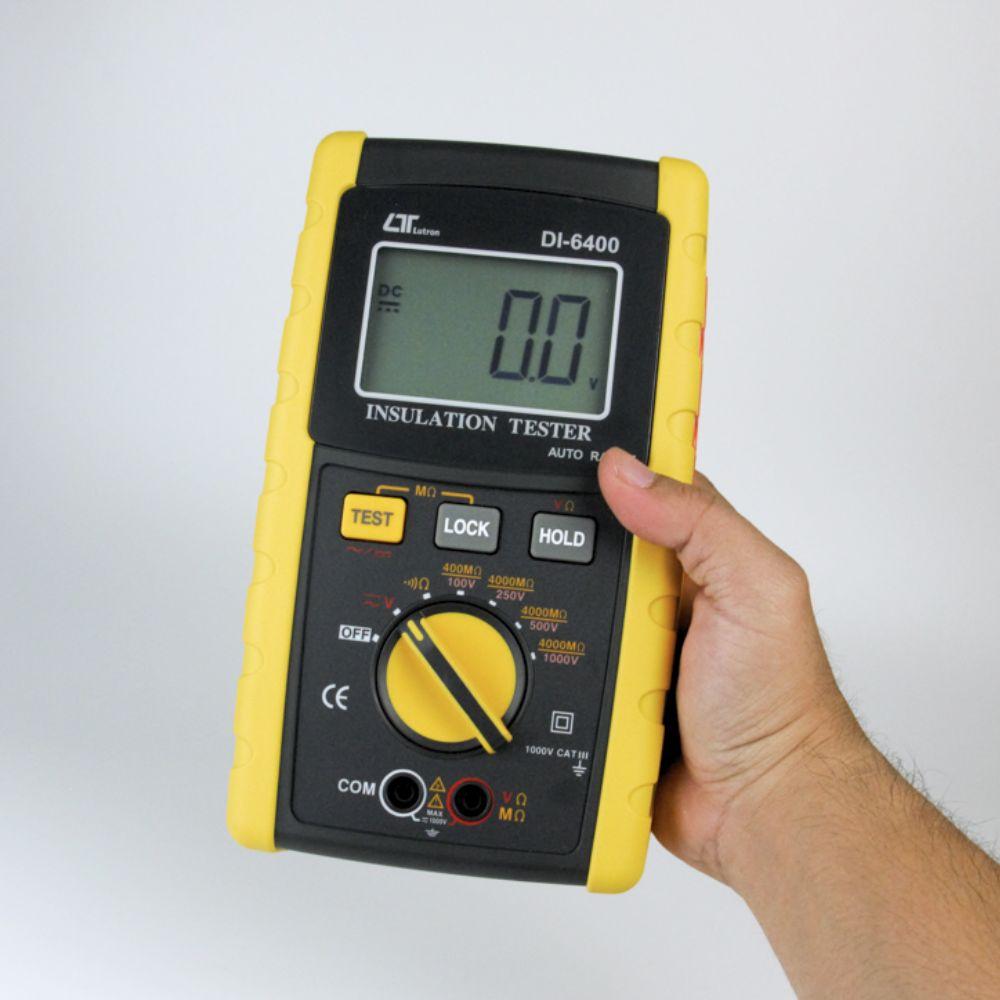

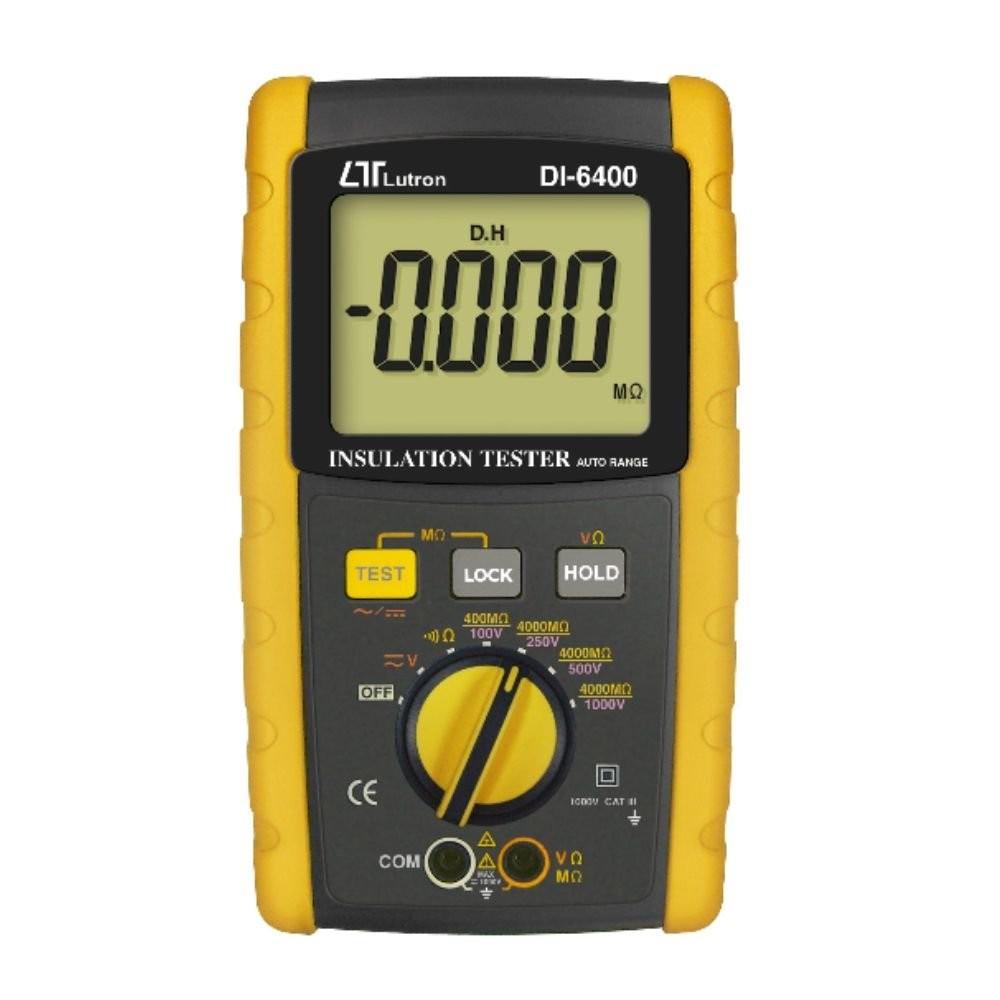

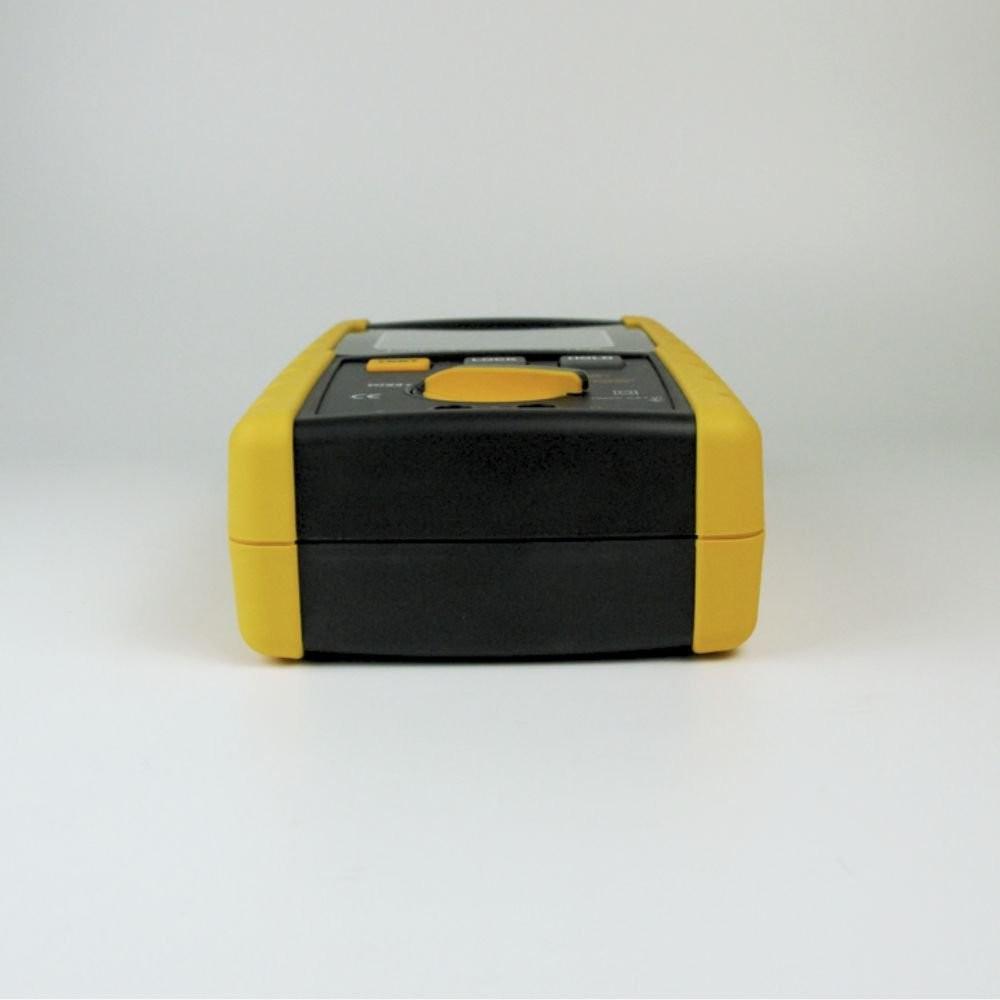

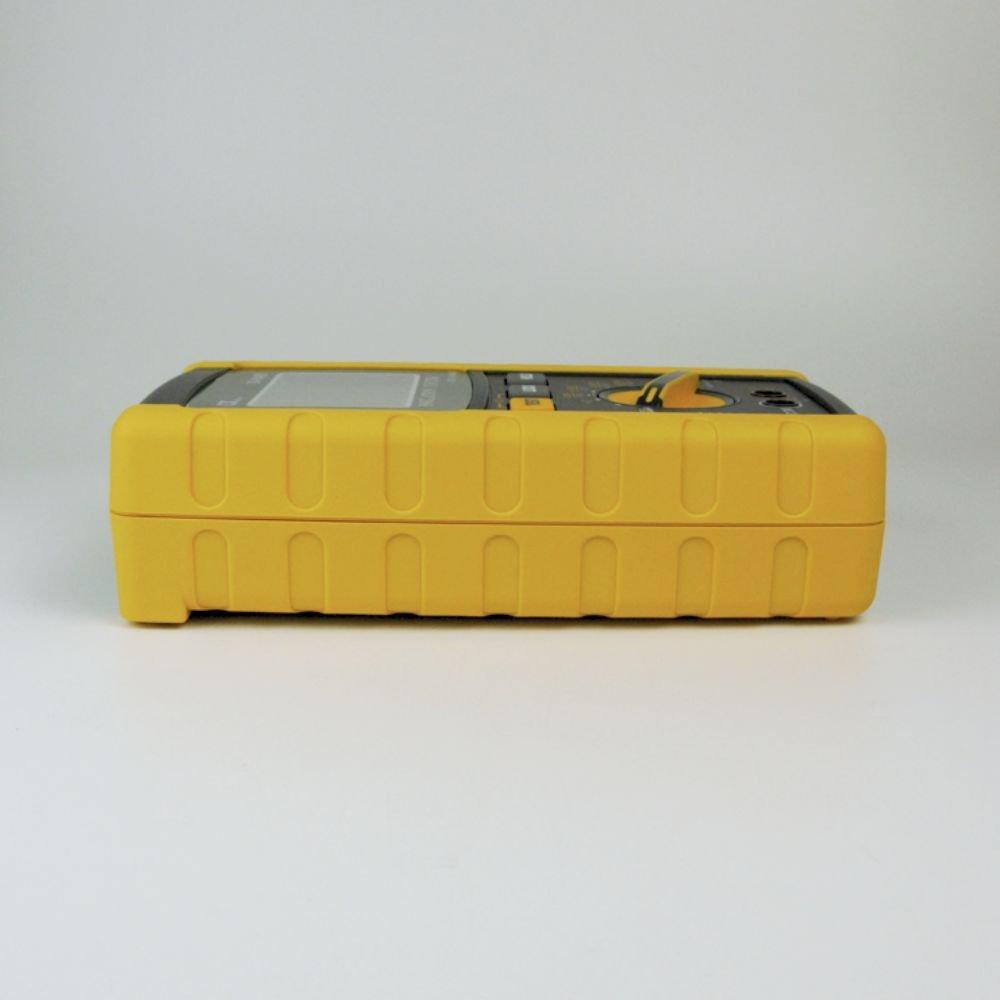

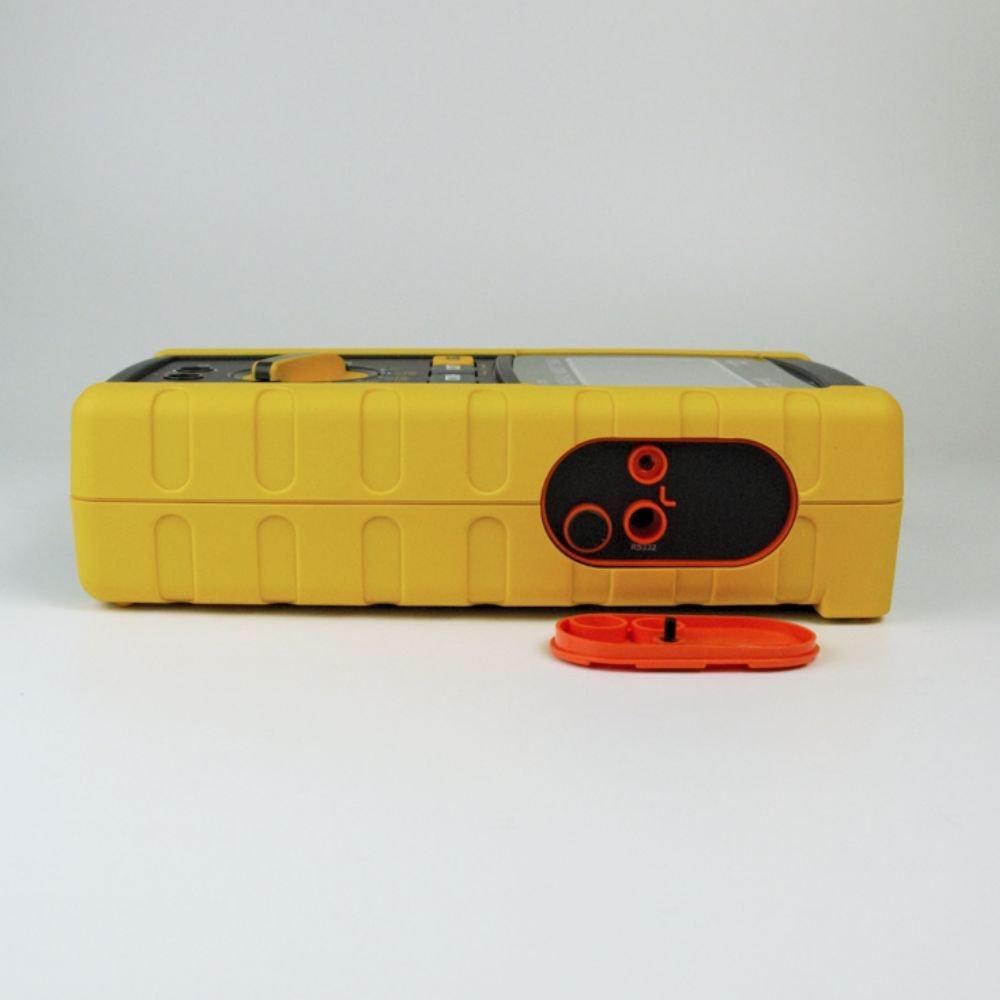

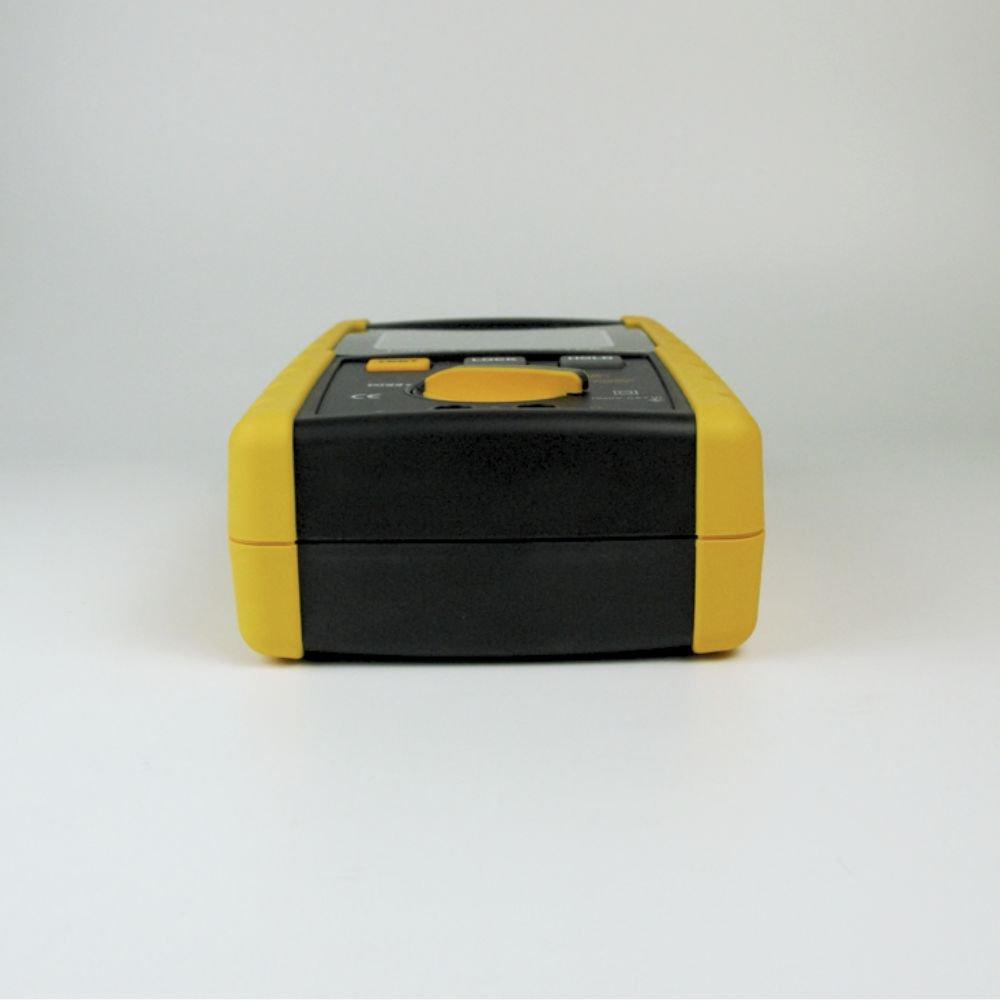

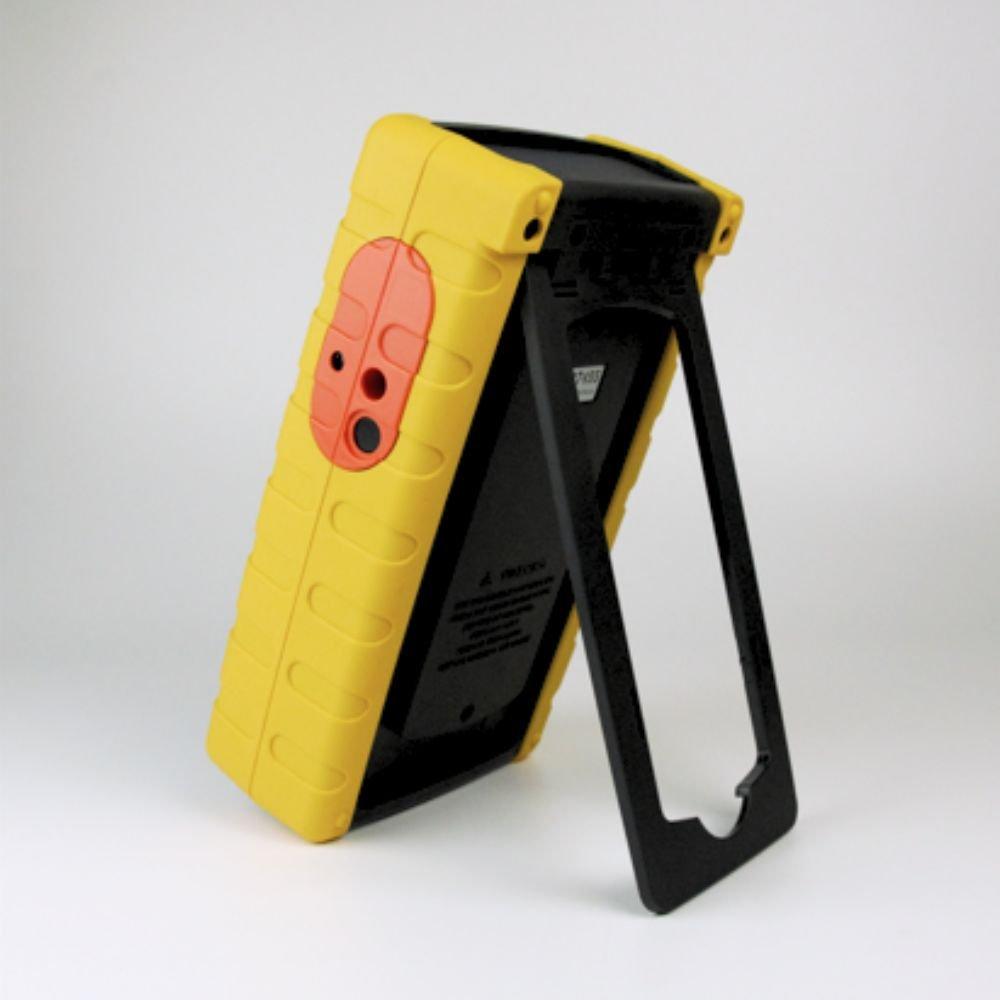

Lutron DI-6400 เครื่องทดสอบความเป็นฉนวน Digital Insulation Tester

Range

Accuracy

Resolution

4/40/400/4000 M ohm

(100V/250V/500V/1KV)

± ( 3% + 5d)

< 2000 M ohm

1 K/10 K/0.1 M/1 M ohm

± ( 5% + 5d)

≧ 2000 M ohm

< 4000 M ohm

Range

Accuracy

Resolution

Open Circuit Voltage

400/4000 ohm

± ( 1% + 2d)

0.1/1 ohm

Approx. 4.7 V

* Overload Circuit Protection AC/DC 500V (within 20 sec)

Range

Accuracy

Resolution

Input Impedance

600 DCV

± ( 1.5% + 2d)

0.1 DCV

10 M ohm

* Overload Circuit Protection AC/DC 600V

Range

Accuracy

Resolution

Input Impedance

600 ACV

± ( 1.5% + 2d)

0.1 ACV

10 M ohm

* Frequency response : 40 Hz to 500 Hz, sine wave.

* Spec. tested on 50 Hz/60 Hz.

* Overload Circuit Protection AC/DC 600V

Display

27 mm LCD (Liquid Crystal Display), Max.
indication : 610.0 ( V ), 4200 ( MΩ ), 4200 ( Ω )

Measurement

Insulation

• 4/40/400 MΩ /100 V

• 4/40/400/4000 MΩ /250 V

• 4/40/400/4000 MΩ /500 V

• 4/40/400/4000 MΩ /1000 V

• DCV 600.0 V

• ACV 600.0 V

• OHM 400.0/4000 Ω

Sampling Time

0.4 second.

Operating Temp.

0 to 50 °C

Operating Humidity

Less than 80% R.H.

Power Supply

1.5V AA ( UM-3 ) battery x 8

Alkaline or heavy duty battery

Power Consumption

Approx. 112 mA (100M ohm/1000V range)
Approx. 70 mA (100 M ohm/500V range)
Approx. 58 mA (100 M ohm/250V range)
Approx. 53 mA (100 M ohm/100V range)
Approx. 18 mA ( ACV range)
Approx. 18 mA ( DCV range)
Approx. 65 mA (0 ohm/OHM range)

Dimension

225 x 125 x 64 mm

Weight

735 g (w/o battery)

4000M ohm Respond Time

Max. approx. 4.0 second.

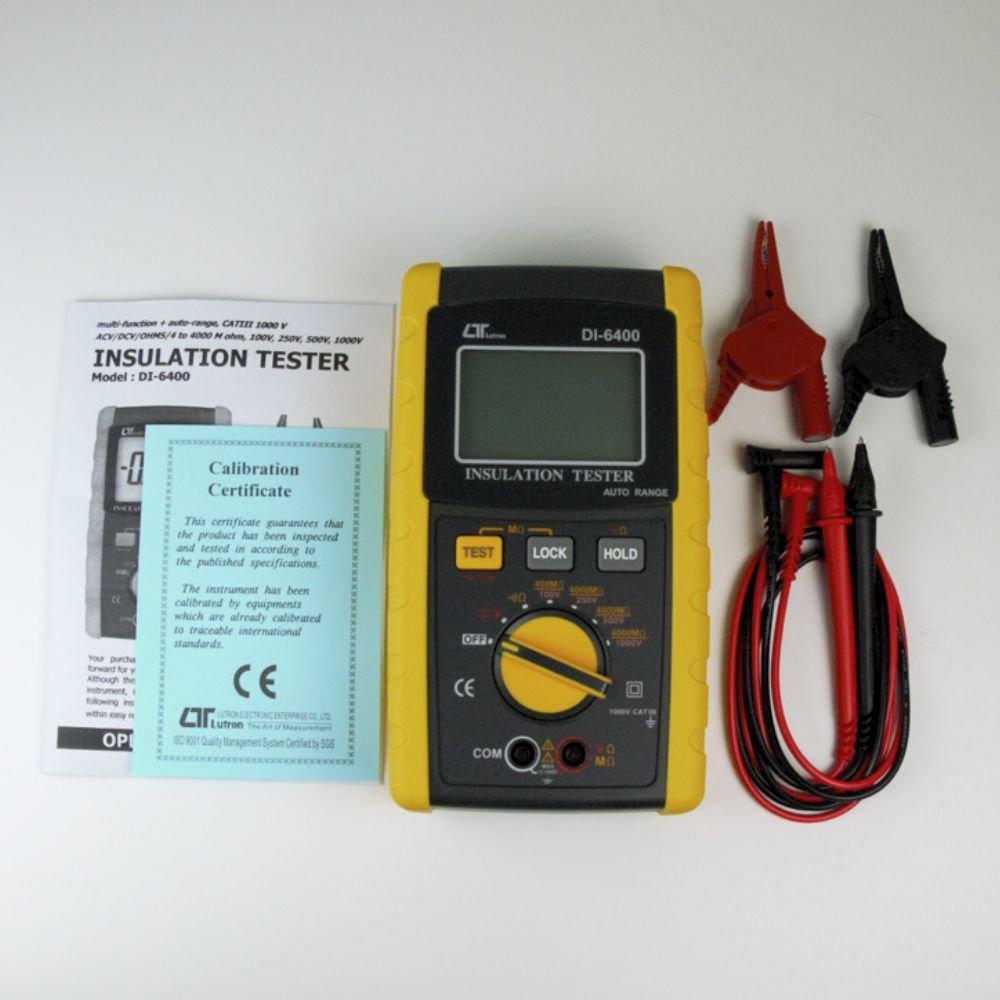

Standard Accessories

Instruction Manual x 1

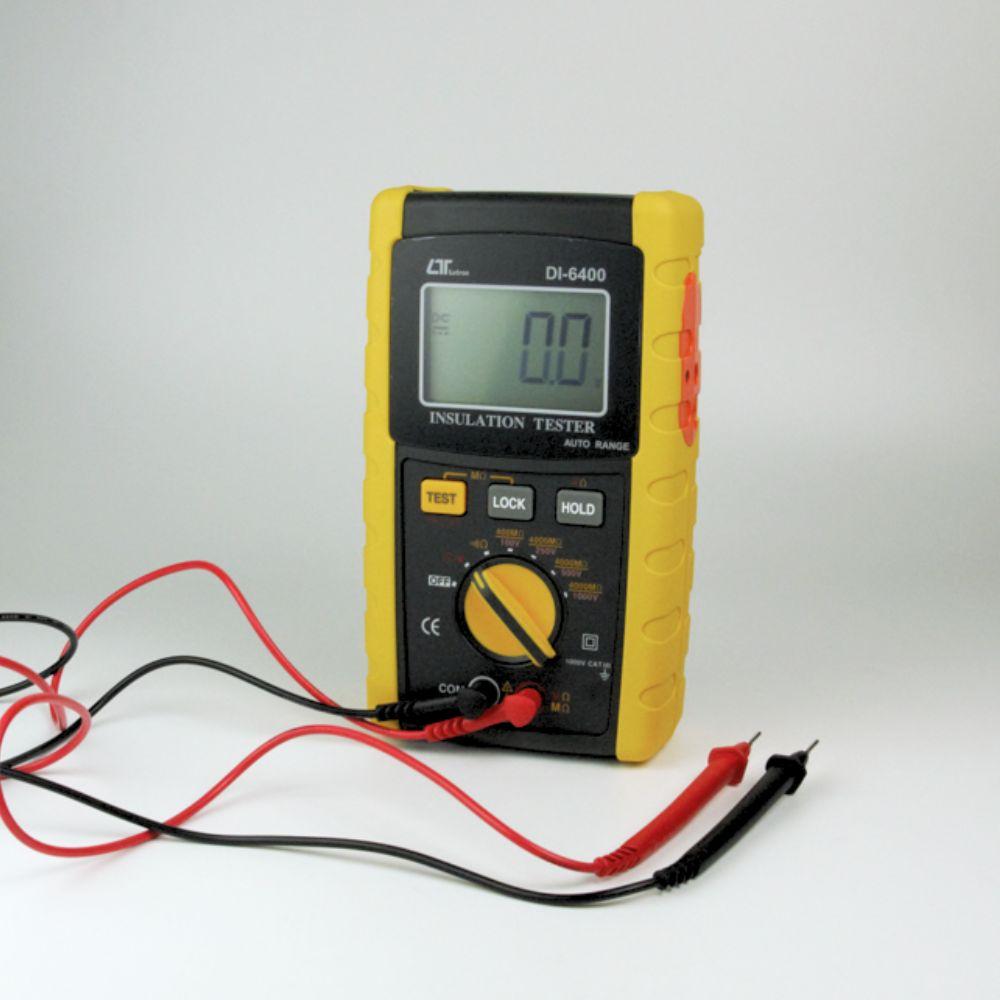

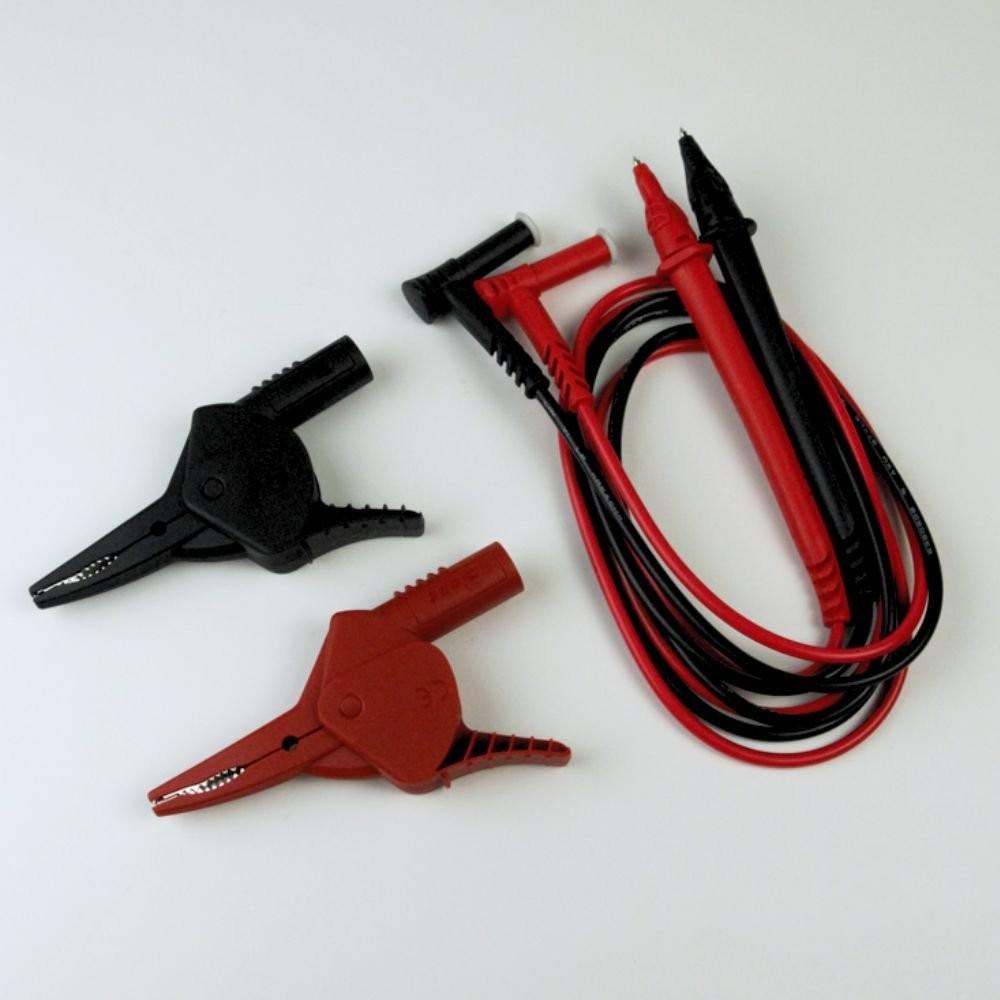

Accessories Test leads x 1 set

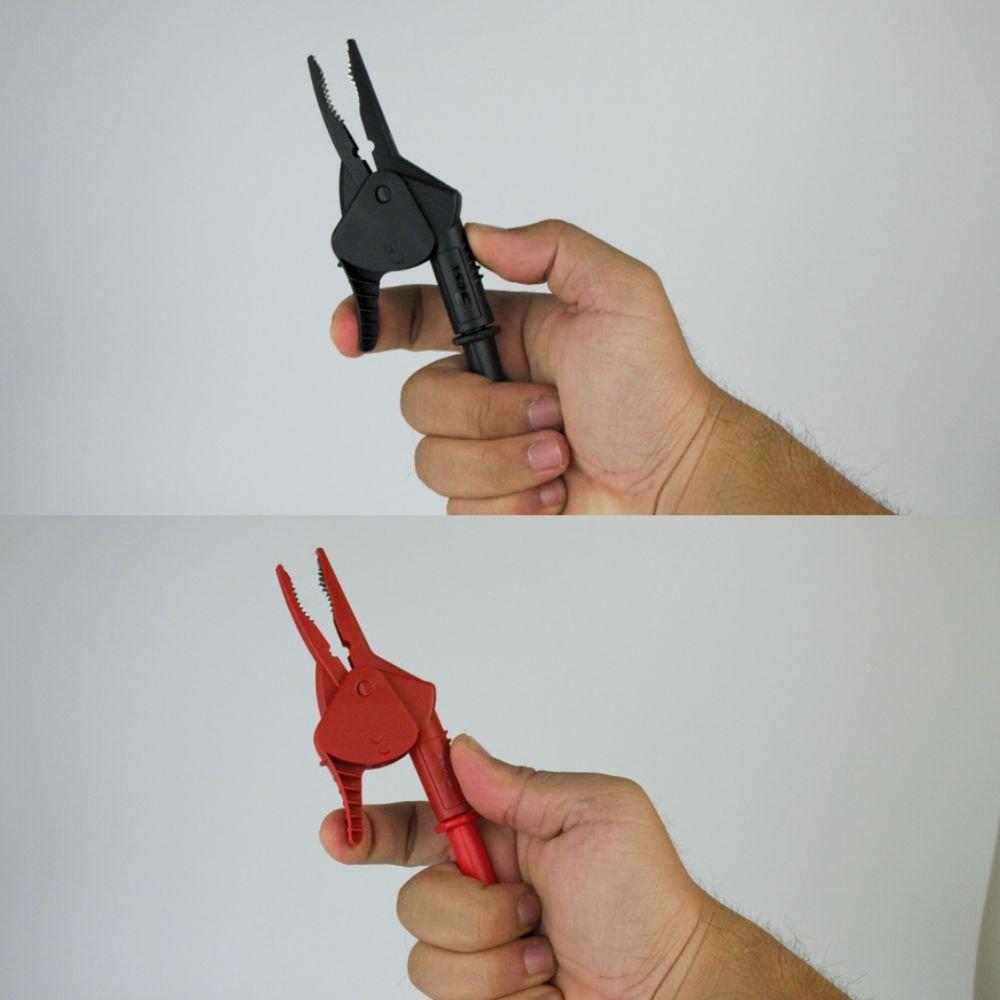

Heavy duty alligators x 1 pair

Optional Accessories

RS232 cable, UPCB-02
USB cable, USB-01
Data Acquisition software, SW-U801-WIN
