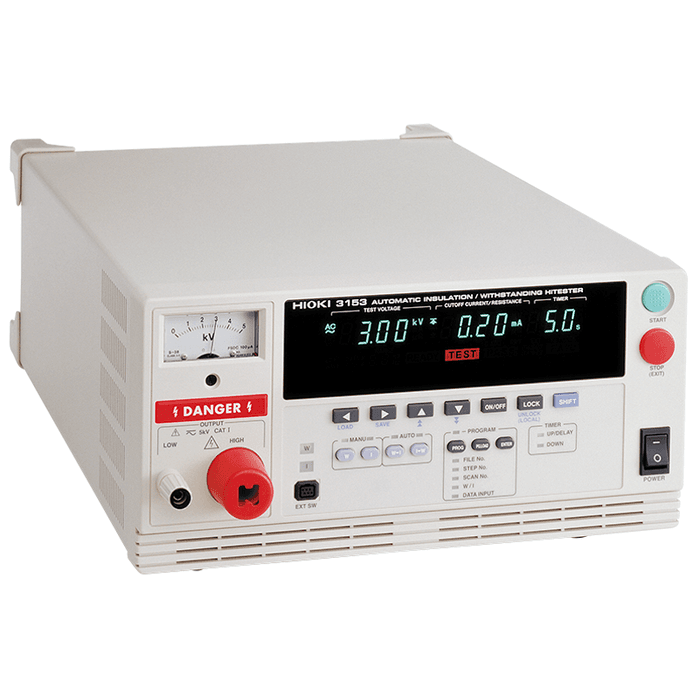

HIOKI 3153 เครื่องทดสอบความเป็นฉนวน Insulation/Withstanding HiTester

Hioki-3153 ฟังก์ชั่นการวัด

INSULATION และ WITHSTANDING

Hioki-3153 จุดเด่น

• Insulation and AC/DC continuous voltage withstand testing
• Safety standards compliance testing
• Stores up to 10 sets of test conditions (10 each for insulation and voltage withstand)
• Zero-V Switching (voltage withstand testing)
• Electrical Discharge function (DC voltage withstand, insulation testing)
• Automated testing support
• Interlock Protect function
• Remote controllable

Hioki-3153 ช่วงการวัด

Output voltage : AC  0.20 to 5.00 kV

                            : DC 0.20 to 5.00 kV

Hioki-3153 Power Supply

100 to 240V AC (installed fuse depends on actual voltage, so specify supply voltage when ordering)
100 to 120V AC: installed fuse 250V T10AL
200 to 240V AC: installed fuse 250V T5AL

Hioki-3153 ขนาดสินค้า

Approx. 320 mm (12.60 in)W × 155 mm (6.10 in)H × 480 mm (18.9 in)D

Hioki-3153 อุปกรณ์ที่มาในชุด

H.V. Test lead 9615 (high voltage side and return, 1 each) ×1

Power cord ×1

Instruction manual ×1

Spare fuse ×1

Hioki-3153 อุปกรณ์เสริม

Input/Output cords

• H.V. TEST LEAD 9615 : Red, Black each 1, 1.5 m (4.92 ft) length
• REMOTE CONTROL BOX (SINGLE) 9613 : For Start/Stop control, 1.5m (4.92 ft) cord length
• REMOTE CONTROL BOX (DUAL) 9614 : For Start/Stop control, 1.5m (4.92 ft) cord length

PC communication

• SAFETY TEST DATA MANAGEMENT SOFTWARE 9267
• RS-232C CABLE 9637
• GP-IB CONNECTOR CABLE 9151-02

Hioki-3153 ข้อมูลจำเพาะ

AC

Output voltage : 0.20 to 5.00 kV

Voltage Output method : PWM switching method (zero-switching)

Transformer capacity : 500 VA (rated 30 minutes)

Output capacity : N/A
Voltage adjustment method : Digital setting (0.01 kV setting resolution)
Output voltage accuracy : ±1.5% of setting voltage ±2 dgt.
Fluctuation rate : ±7% or less (max. 5 kV at 100 mA → no load: Resistance load) *2 Unloaded = 40 MΩ load (instrument input impedance)
Voltage waveform : Sine wave (5% or less distortion, unloaded)
Voltage frequency : 50 Hz/60 Hz, ±0.2%
Output ripple voltage : N/A
Output current : 100 mA AC  *1Time vs. Output Voltage (at 23˚C ambient)
Voltmeter : Average rectified effective value display

                    Digital: 0.00 to 5.00 kV (full scale)
                   Accuracy: ±1.5% f.s.
                   Analog: 0 to 5 kV (full scale)
                   Accuracy: ±5% f.s.

Current measurement range : 0.01 mA to 100.0 mA AC

Indicated value range : 10 or 100 mA

Measurement resolution : 0.00 to 10.00 or 0.01 mA (10-mA range)
                                            : 10.1 to 100.0 or 0.1 mA (100-mA range, AC only)

Current measurement accuracy : ± (2% rdg. + 5 dgt.) common to each range *3 Plus scanner accuracy, when used

DC

Output voltage : 0.20 to 5.00 kV
Voltage Output method : PWM switching method
Transformer capacity : N/A
Output capacity : 50 VA (continuous)
Voltage adjustment method : Digital setting (0.01 kV setting resolution)
Output voltage accuracy : ±1.5% of setting voltage ±2 dgt.
Fluctuation rate : ±16% or less (max. 5 kV at 10 mA → no load: Resistance load) *2 Unloaded = 40 MΩ load (instrument input impedance)
Voltage waveform : N/A
Voltage frequency : N/A
Output ripple voltage : 6% of output voltage or less (at 5 kV DC, 10 mA, resistive load)
Output current : 10 mA DC (continuous)
Voltmeter : Average display
                   Digital: 0.00 to 5.00 kV (full scale)
                   Accuracy: ±1.5% f.s.
                   Analog: 0 to 5 kV (full scale)
                   Accuracy: ±5% f.s.
Current measurement range : 0.01 mA to 10.0 mA DC
Indicated value range : 10 mA
Measurement resolution : 0.00 to 10.00 or 0.01 mA (10-mA range)
                                            : 10.1 to 100.0 or 0.1 mA (100-mA range, AC only)
Current measurement accuracy : ± (2% rdg. + 5 dgt.) common to each range *3 Plus scanner accuracy, when used

Insulation Resistance Testing

Test voltage : Output voltage: Positive polarity 50 to 1200 V DC
                        Voltage adjustment method: Digital setting (1 V resolution)
                        Output voltage accuracy: ±1.5% ±2 dgt. of setting level

Rated measurement current : 1 mA

Short-circuit current : 200 mA or less

Voltmeter : Average display
                  Digital: 0 to 1200 V DC (full scale)
                  Accuracy: ±1.5% rdg. ±2 dgt.
                  Analog: 0 to 1200 V DC
                  Accuracy: ±5% f.s. (5 kV full scale)

Measurement range / accuracy : 0.100 to 1.049 MΩ
                                                       : 1.05 to 10.49 MΩ*1
                                                       : 10.5 to 104.9 MΩ*1
                                                       : 105 to 9999 MΩ*1
                                                       : Fundamental accuracy: ±4% rdg. *2. Plus scanner accuracy, when used
