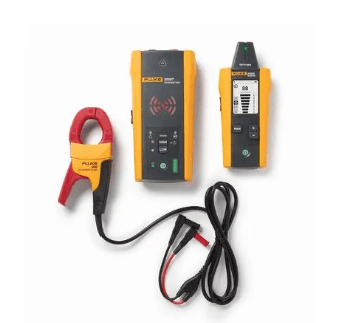

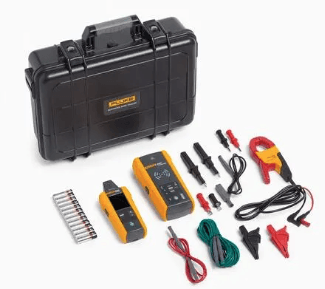

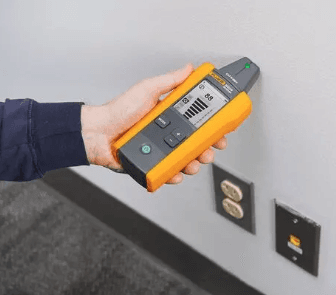

Fluke-2052 Advanced Wire Tracer Kit

General

2052R Receiver

2000T Transmitter

i400 AC Current Clamp

Measurement category

CAT IV 600 V

CAT IV 600 V

CAT IV 600 V, CAT III 1000 V

Operating voltage

600 V AC/DC

600 V AC/DC

1000 V AC

Operating frequency

Energized: 6.25 kHz
De-Energized: 32.768 kHz

Energized/Loop: 6.25 kHz
De-Energized: 32.768 kHz

N/A

Signal indications

Numeric, bar graph display and audible beep

LEDs and audible beep

N/A

Response time

Tip Sensor (Energized/De-Energized): 500 ms
NCV: 500 ms
Battery monitoring: 5 s

Line voltage monitoring: 1 s
Battery voltage monitoring: 5 s

N/A

Current output of signal (typical)

N/A

Energized circuit:
High mode: 60 mA rms
Low mode: 30 mA rms
De-energized circuit:
High mode: 110 mA rms
Low mode: 40 mA rms
Loop mode with test leads: 160 mA rms
Loop mode with i400 AC Current Clamp:
385 mA rms

N/A

Signal voltage output (nominal)

N/A

Energized circuit:
High mode: 14 W @ 230 V ac/50 Hz,
3.33 kΩ @ 230 V ac
Low mode: 4.6 W @ 230 V ac/50 Hz,
11.5 kΩ @ 230 V ac
De-energized circuit:
High mode: 31 V RMS, 140 Vp-p,
0.86 W @ 1 kΩ load
Low mode: 27.5 V RMS, 120 Vp-p,
0.1 W @ 1 kΩ load
Loop mode with test leads: 32 V RMS,
140 Vp-p, 0.87 W @ 1 kΩ load
Loop mode with i400 AC Current Clamp:
31 mV, 0.89 W @ 1 Ω load

N/A

Range detection (open air)

Tip Sensor: Energized
Max distance via air: up to 6.1 m (20 ft)
Pinpointing: approx. 5 cm (1.97 in)
Tip Sensor: De-Energized
Max distance via air: up to 4.5 m (14.7 ft)
Pinpointing: approx. 5 cm (1.97 in)
NCV (40 Hz to 400 Hz)
Max. sensitivity: 90 V up to 2 m
Min. sensitivity: 600 V up to 1 cm

N/A

Current range

N/A

N/A

400 A

Basic accuracy

N/A

N/A

2 % + 0.06 A
(45 Hz to 400 Hz)

Display

Display size

LCD 63 mm (2.5 in)

LEDs

N/A

Display dimensions (W x H)

37 mm x 49 mm (1.45 x 1.93 in)

N/A

N/A

Display Resolution

240 px x 320 px

N/A

N/A

Display type

TFT LCD

LEDs

N/A

Display color

16-bit

Operating mode LEDs: red
Battery status LEDs: green, yellow, red

N/A

Backlight

Yes

N/A

N/A

Environmental

Operating temperature

-20 °C to 50 °C (-4 °F to 122 °F)

-20 °C to 50 °C (-4 °F to 122 °F)

-20 °C to 50 °C (-4 °F to 122 °F)

Operating humidity

45%: -20 °C to <10 °C or 40 °C to 50 °C
(-4 °F to <50 °F or 104 °F to 122 °F)
95% (non-condensing): 10 °C to <30 °C
(50 °F to 86 °F)
75%: 30 °C to <40 °C (86 °F to <104 °F)

45%: -20 °C to <10 °C or 40 °C to 50 °C
(-4 °F to <50 °F or 104 °F to 122 °F)
95% (non-condensing): 10 °C to <30 °C
(50 °F to 86 °F)
75%: 30 °C to <40 °C (86 °F to <104 °F)

10 °C to <30 °C
(95 %: 50 °F to <86 °F)
30 °C to <40 °C
(75 %: 86 °F to <104 °F)
40 °C to <50 °C
(45 %: 104 °F to <122 °F)

Operating altitude

2000 m (6561 ft)

2000 m (6561 ft)

2000 m (6561 ft)

Transient protection

N/A

N/A

Pollution degree

2

2

2

IP rating

IP 40

IP 40

IP 40

Drop test

1 m (3.28 ft)

1 m (3.28 ft)

1 m (3.28 ft)

Mechanical

Power supply

4 x AA (alkaline)

8 x AA (alkaline)

N/A

Power consumption (typical)

110 mA

High/low mode: 70 mA
Loop mode with Clamp: 90 mA
Consumption without signal
transmission: 10 mA

N/A

Battery life

Approx. 16 h

High/low mode: approx. 25 h
Loop mode: approx. 18 h

N/A

Low battery indication

Yes

Yes

N/A

Fuse

N/A

1.6 A, 700 V, fast-acting,
Ø 6 x 32 mm, 50 kA interrupt

N/A

Maximum conductor size

N/A

N/A

32 mm (1.26 in)

Dimensions (L x W x H)

Approx. 183 x 75 x 43 mm
(7.2 x 2.95 x 1.69 in)

Approx. 183 x 93 x 50 mm
(7.2 x 3.66 x 1.97 in)

Approx. 150 x 70 x 30 mm
(5.9 x 2.75 x 1.18 in)

Weight

Approx. 0.27 kg (0.6 lb)

Approx. 0.57 kg (1.25 lb)

Approx. 0.114 kg (0.25 lb)

Mechanical

2000ACC Test Lead Accessory Kit

Includes

2x 1 m test leads (red, black),
1x 7 m test lead (green),
2x test probes (black),
2x alligator clips (red, black),
2x outlet blade adapters (red, black),
2x outlet round adapters (red, black)

Measurement category

CAT IV 600 V (test leads), CAT II 1000 V (test probes), CAT IV 600 V (alligator clips),
CAT II 300 V (outlet adapters)

Operating voltage and current

600 V, 10 A max. (red/black leads), 600 V, 10 A max. (green lead), 1000 V, 8 A max. (black probe)
600 V, 10 A max. (alligator clips), 300 V, 10 A max. (outlet adapters)

Operating temperature

0 °C to 50 °C (32 °F to 122 °F)

Operating humidity

10 °C to <30 °C (95 %: 50 °F to <86 °F), 30 °C to <40 °C (75 %: 86 °F to <104 °F),
40 °C to <50 °C (45 %: 104 °F to <122 °F)

Storage temperature and humidity

0 °C to 60 °C (32 °F to 140 °F),

Operating altitude

2000 m (6561 ft)

Pollution degree

2

Water and dust resistance

IP 20

Drop proof

1 m (3.28 ft)

Dimensions

Red/black leads: 1 m (3.28 ft), Green lead: 7 m (22.97 ft), Alligator clips: approx. 95 x 45 x 24 mm (3.74 x 1.77 x 0.94 in),
Outlet adapters: 72 x 18 x 18 mm (2.83 x 0.71 x 0.71 in)

Weight

Approx. 0.4 kg (0.88 lb)
