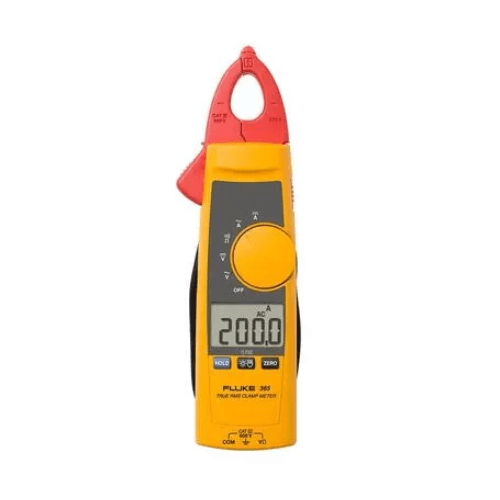

Fluke-365 AC/DC แคลมป์มิเตอร์ True RMS สำหรับการใช้งานทั่วไป

Fluke-365 ฟังก์ชั่นการวัด

แคลมป์มิเตอร์

Fluke-365 จุดเด่น

200 A AC and DC current measurement with detachable jaw
600 VAC and DC voltage measurement
Detachable jaw makes accessing wires and viewing the display easier
Built in flashlight/torch allows for easy illumination and identification of wires
CAT III 600 V
Compact design fits in your hand and can be used while wearing protective equipment
State of the art signal processing allows for use in noisy electrical environments while providing stable readings
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Soft carrying case

Fluke-365 ช่วงการวัด

AC Current

Range 200.0 A
Resolution 0.1 A
Accuracy

2 % ±5 digits (45 – 65 Hz)
2.5 % ±5 digits (65 – 400 Hz)
Crest Factor

2.5 @ 125 A
1.55 @ 200 A
Add 2 % for C.F. >2

DC Current

Range 200.0 A
Resolution 0.1 A
Accuracy 2 % ±5 digits

AC Voltage

Range 600.0 V
Resolution 0.1 V
Accuracy 1.5 % ±5 digits (45 – 400 Hz)

DC Voltage

Range 600.0 V
Resolution 0.1 V
Accuracy 1 % ±5 digits

Resistance

Range 600.0 Ω/6000 Ω
Resolution 0.1 Ω/1 Ω
Accuracy 1 % ±5 digits

Fluke-365 Power Supply

2 AA, NEDA 15A, IEC LR6

Fluke-365 ขนาดสินค้า

225 x 65 x 46 mm

275 g (including batteries)

Jaw Opening 18 mm
Detachable Jaw Cable Length 900 mm

Fluke-365 อุปกรณ์ที่มาในชุด

Fluke 325 True-RMS
Test leads
Soft case
Users manual

Fluke-365 อุปกรณ์เสริม

Fluke C43 Soft Carrying Case
Fluke C550 Tool Bag
Fluke CAMO-37 Camouflage Carrying Case

Fluke AC220 SureGrip™ Alligator Clips
Fluke AC285 SureGrip™ Alligator Clips
Fluke AC87 Heavy Duty Bus Bar Clip Set
Fluke AC89 Heavy Duty Insulation Piercing Test Clip
Fluke TL220 SureGrip™ Industrial Test Lead Set
Fluke TL224 SureGrip™ Insulated Test Leads
Fluke TL71 Premium Test Lead Set

Fluke LVD1A Non-Contact Voltage Tester with LED Flashlight
Fluke L206 Deluxe LED Hat Light

Fluke-365 ข้อมูลจำเพาะ

Operating Temperature -10 °C to +50 °C
Storage Temp -40 °C to +60 °C

Operating Humidity

Non condensing (<10 °C)
≤90 % RH (at 10 °C to 30 °C)
≤75 % RH (at 30 °C to 40 °C)
≤45 % RH (at 40 °C to 50 °C)
(Without Condensation)

Operating Altitude 2000 meters
Storage Altitude 12,000 meters
Temperature Coefficients 0.1 x(specified accuracy)/ °C (<18 °C or > 28 °C)

Safety Compliance

ANSI/ISA S82.02.01:2004
CAN/CSA-C22.2 No. 61010-1-04
UL 61010-1:2004
EN/IEC 61010-1:2001 to 600V CAT III
Pollution Degree 2
