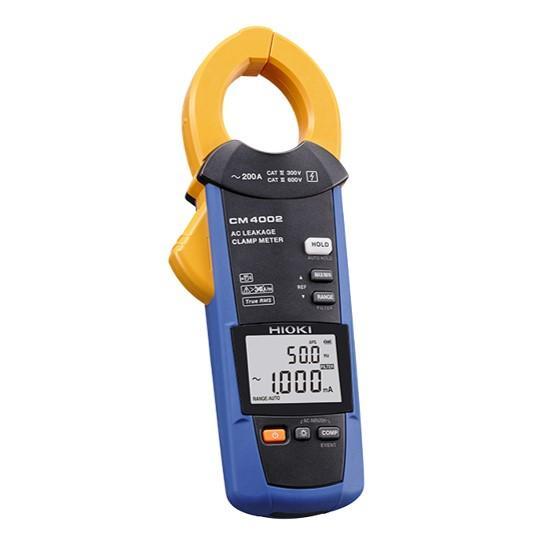

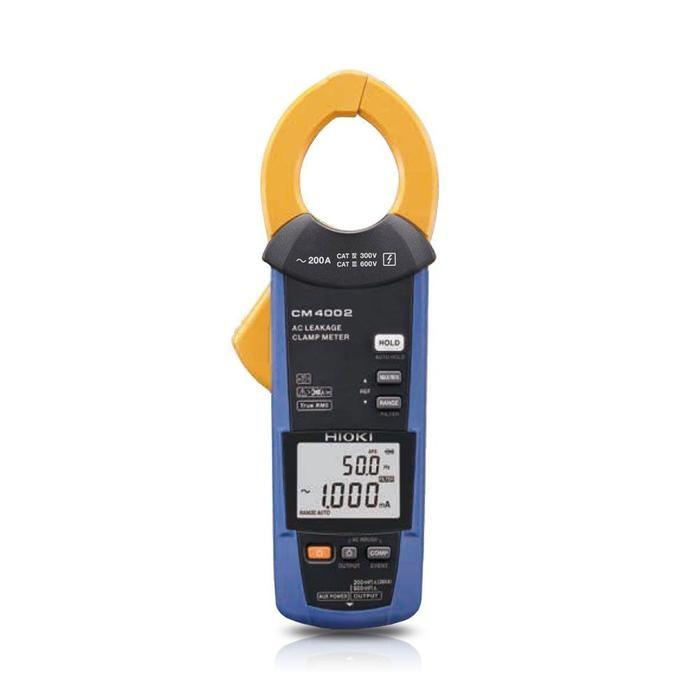

HIOKI CM4002 แคลมป์วัดไฟรั่ว AC Leakage Current 200A (True RMS)HIOKI CM4002 แคลมป์วัดไฟรั่ว AC Leakage Current 200A (True RMS)
HIOKI

HIOKI CM4002 แคลมป์วัดไฟรั่ว AC Leakage Current 200A (True RMS)

รหัสสินค้า

CM4002

฿20,220.00(ไม่รวมภาษี)

ภาพรวม

แคลมป์วัดไฟรั่ว AC LEAKAGE CLAMP METER True RMS ช่วงการวัด AC Current: 6.000 mA ถึง 200.0 A, 6 ranges ช่วงความถี่กว้างตั้งแต่ 15.0 Hz ถึง 2000 Hz Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display ขนาดของแคลมป์ ø40 mm มาตรฐาน CAT IV 300 V,CAT III 600 V ยี่ห้อ Hioki, Japan

เพิ่มคำถาม

CM4002 ฟังก์ชั่นการวัด

แคลมป์วัดไฟรั่ว AC Leakage Current

CM4002 จุดเด่น

Connect the Z3210 for wireless communications. Easy visualization of intermittent trip events.
Instantly create reports by a free app (GENNECT Cross)
Easily transfer measurement data to an Excel® file
Regular inspections of GFCIs and RCDs [Photo drawing function]
Identifying intermittent trip events [Event recording function]
Detect minuscule leakage currents with a newly designed sensor (IEC/EN 61557-13 compliant)
High-reliability leakage current measurement
Measurable conductor diameter up to φ40 mm

CM4002 ช่วงการวัด

AC Current range

6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic accuracy 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt
Defined accuracy range: 0.060 mA to 200.0 A

Frequency range

15.0 Hz to 2000 Hz

CM4002 Power Supply

AA-size alkaline battery (LR6) × 2

Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)

CM4002 ขนาดสินค้า

Core jaw diameter φ 40 mm (1.57 in.)

64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)

CM4002 อุปกรณ์ที่มาในชุด

Carrying case C0203 × 1

Instruction manual × 1

Operating Precautions × 1

AA-size alkaline battery (LR6) × 2

CM4002 อุปกรณ์เสริม

WIRELESS ADAPTER Z3210
CARRYING CASE C0203

GENNECT CROSS SF4071, SF4072

CM4002 ข้อมูลจำเพาะ

Crest factor 3 (other than 200.0 A range), 1.5 (200.0 A range)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)

Harmonic levels

[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.
Other functions

Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement

Display Display refresh rate: 5 times/s
